If you’re looking for the best high-channel-count logic analyzers, I recommend models like the DSLogic U3Pro16 with 16 channels and 1GHz sampling, the Saleae Logic Pro, and the Innomaker LA2016 with 16 channels at 200MHz. These tools offer precise signal capture, broad protocol support, and reliable performance for complex debugging tasks. Keep exploring to discover the top options and what features suit your specific needs.
Key Takeaways
- High-channel count analyzers like DSLogic Plus and Saleae Logic Pro support up to 16 channels for comprehensive signal capture.
- Sampling rates exceeding 400MHz ensure precise analysis of fast digital signals across multiple channels.
- Deep memory capacities (e.g., 16G burst depth) allow long-duration recordings without data loss.
- Compatibility with multi-protocol decoding (UART, SPI, I2C) enhances detailed signal analysis.
- Portable, durable designs with high-quality probes facilitate accurate measurements in various testing environments.
HiLetgo USB Logic Analyzer with EMI Ferrite Ring and USB Cable
If you’re a hobbyist or working on small-scale projects, the HiLetgo USB Logic Analyzer is an excellent choice thanks to its affordability and straightforward design. It offers 8 channels with a maximum sampling rate of 24 MHz, perfect for debugging UART, IIC, and SPI signals. It’s compatible with various voltage levels, including 5V and 3.3V systems, and uses a CY7C68013A microcontroller with a USB 2.0 interface. The package includes a USB cable, Dupont wires, and an EMI ferrite ring for reduced interference. While it lacks onboard buffers or probes, it’s easy to set up with free software like PulseView, making it ideal for budget-conscious hobbyists.
Best For: hobbyists and small-scale developers seeking an affordable, easy-to-use USB logic analyzer for basic digital signal debugging.
Pros:
- Cost-effective and compatible with free open-source software like PulseView and Saleae Logic
- Suitable for analyzing UART, IIC, and SPI signals at up to 24 MHz sampling rate
- Compact, USB-powered design with included accessories like Dupont wires and EMI ferrite ring
Cons:
- No onboard capture buffer or dedicated probes, requiring careful connection and handling
- Limited to basic triggering; lacks advanced trigger features for complex debugging
- Potential compatibility issues with some USB ports and lack of onboard over-voltage protection

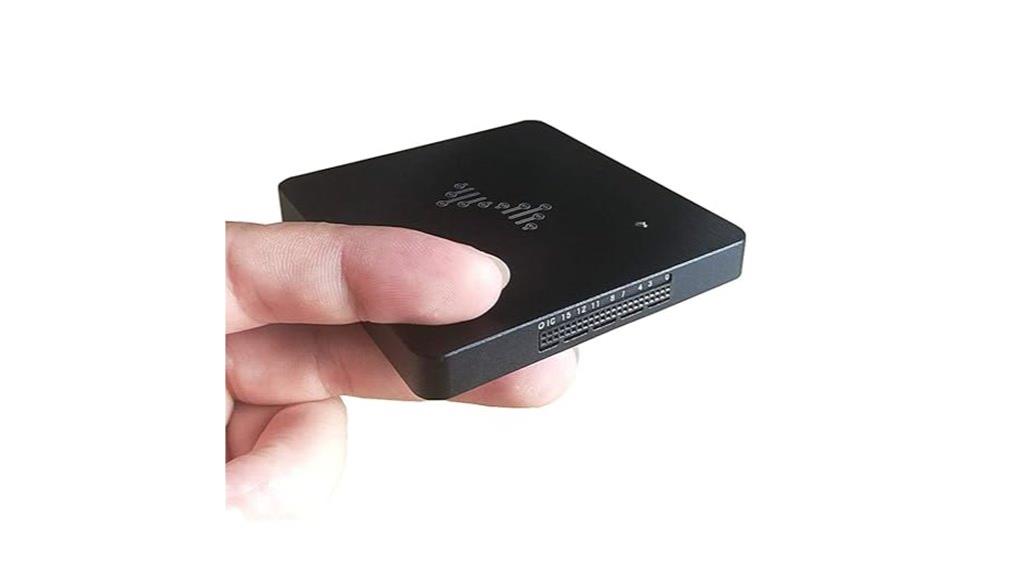

USB Logic Analyzer, 16 Channels, 400MHz Sampling Rate
The DSLogic Plus USB Logic Analyzer stands out for users who need high-speed, multi-channel signal capture with detailed analysis. It offers 16 channels supporting both stream and buffer modes, with a 400MHz sampling rate in buffer mode for up to four channels. Its open-source DSView software works seamlessly across Windows, macOS, and Linux, providing nearly 100 protocol decoders. Compact and versatile, it includes shielded wires, test hooks, and a USB 2.0 interface for fast data transfer. With high sample depths and long-duration recording capabilities, it’s perfect for debugging complex microcontroller, FPGA, or protocol projects efficiently and accurately.
Best For: electronics engineers, hobbyists, and developers requiring high-speed, multi-channel digital signal analysis and debugging across various platforms.
Pros:
- Supports 16 channels with high sampling rates up to 400MHz in buffer mode, enabling detailed signal capture.
- Compatible with Windows, macOS, and Linux, along with open-source DSView software offering nearly 100 protocol decoders.
- Compact design with shielded wires, test hooks, and long-duration recording capabilities suitable for complex debugging tasks.
Cons:
- Maximum sampling depth of 16G may require substantial storage and processing power for extensive captures.
- The device’s maximum signal frequency is limited to 100MHz, which may not suffice for ultra-high-frequency applications.
- Some users have suggested improvements to the software interface and user experience for more intuitive operation.
Saleae Logic Pro 8-Channel Logic Analyzer
Designed for electronics enthusiasts and professionals alike, the Saleae Logic Pro 8-Channel Logic Analyzer offers a versatile solution for multi-protocol decoding and signal analysis. It features 8 digital and analog inputs, with a digital sample rate of 500 MS/s and analog up to 50 MS/s, supporting over 10 billion digital samples. Its compact, lightweight design makes it highly portable, and it’s compatible with Windows, Mac, and Linux. The accompanying software provides real-time decoding and an intuitive interface, simplifying troubleshooting of protocols like I2C, SPI, and more. Overall, it’s an excellent tool for detailed signal analysis, prototyping, and learning, valued for its high resolution and protocol versatility.
Best For: electronics hobbyists, students, and professionals seeking versatile multi-protocol signal analysis and troubleshooting in a compact, portable device.
Pros:
- High digital sample rate of 500 MS/s and analog up to 50 MS/s for detailed signal capture
- Supports over 10 billion digital samples and multiple protocols like I2C, SPI, and RS232
- User-friendly software with real-time decoding and easy data export, compatible across Windows, Mac, and Linux
Cons:
- Lacks true real-time input display; captures run blind until review
- Input scaling limitations may require additional calibration for precise measurements
- Slightly higher price point compared to basic logic analyzers, but offers extensive features

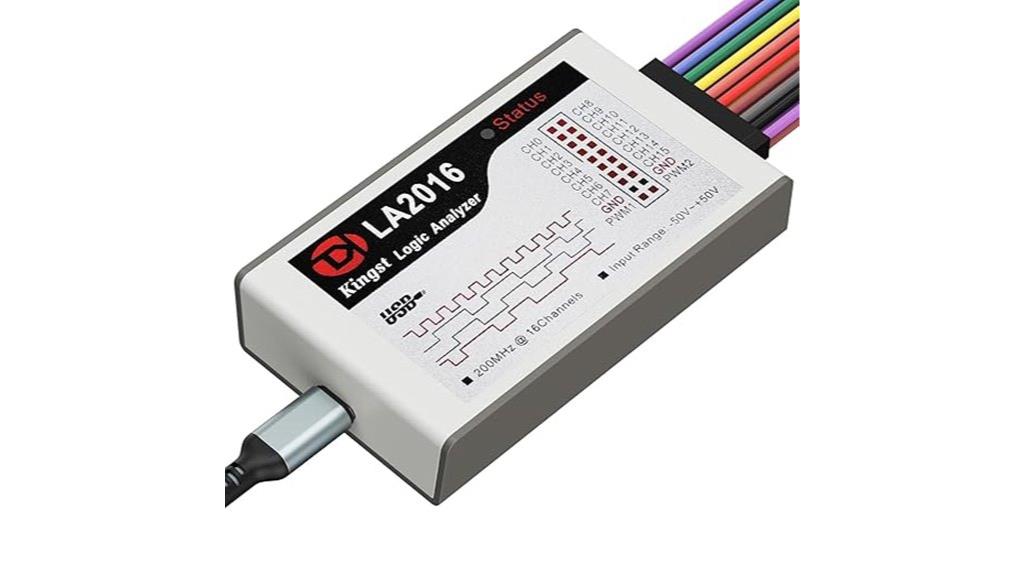

Innomaker USB Logic Analyzer LA2016 16 Channel 200MHz with Software
For hobbyists and small-scale professionals seeking a reliable, affordable logic analyzer, the Innomaker USB Logic Analyzer LA2016 stands out with its 16 channels and 200MHz sampling rate. It offers deep 1Gbits memory, supporting multiple voltage levels, making it versatile for microcontroller and digital circuit analysis. The device is portable, lightweight, and comes with essential accessories like probes and clips. Its intuitive software supports over 20 protocols, including I2C, SPI, UART, and USB1.1, simplifying debugging. While it performs well at lower speeds and is ideal for prototyping and hobbyist projects, it’s less suited for high-speed signals above 50MHz.
Best For: hobbyists and small-scale professionals seeking a reliable, affordable logic analyzer for microcontroller and digital circuit debugging.
Pros:
- Supports 16 channels with a 200MHz sampling rate and deep 1Gbits memory for precise simultaneous signal capture
- Compatible with Windows, MacOS, and Linux, and offers automated protocol decoding for over 20 protocols including I2C, SPI, UART, and USB1.1
- Portable, lightweight design with essential accessories, making it ideal for lab and field use
Cons:
- Less effective for high-speed signals above 50MHz, with performance limitations at higher frequencies
- Software bugs such as Vth threshold reset after PC sleep mode can cause false triggers
- Lack of color coding and numbering on test clips may complicate signal identification across multiple channels

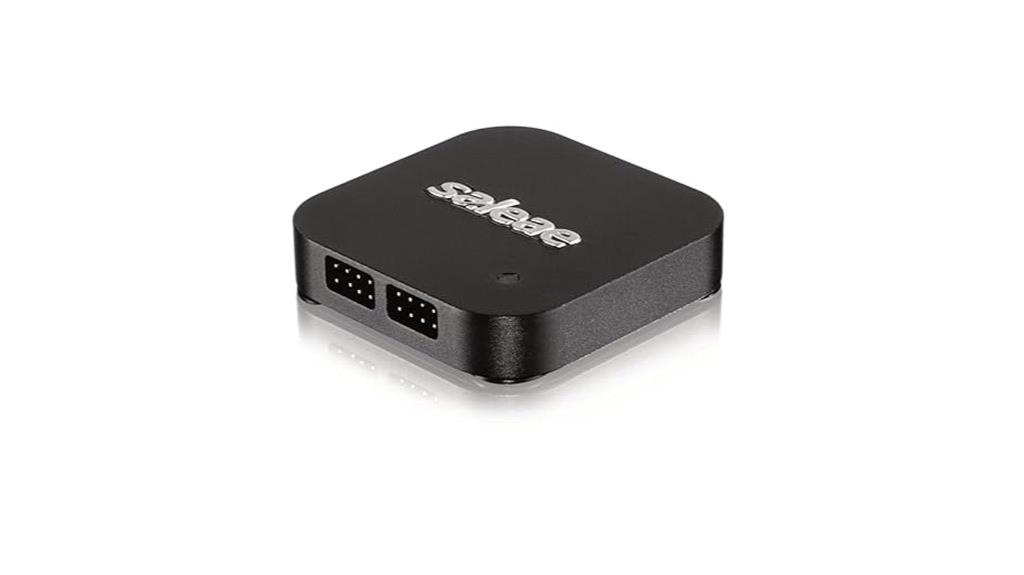

Logic 8 – Saleae 8-Channel Logic Analyzer (Black)
If you’re looking for a reliable, high-quality logic analyzer that handles multiple protocols with ease, the Logic 8 Saleae 8-Channel Logic Analyzer (Black) is an excellent choice. It offers robust hardware with well-made, portable design, and includes high-quality probes suitable for long-term use. Its software, Logic 2, provides an intuitive interface compatible with macOS and other platforms, supporting multi-protocol decoding, waveform manipulation, and pattern searching. While it excels at capturing high and low-speed signals, it lacks advanced pattern matching features. Overall, users praise its build quality, ease of use, and effectiveness for debugging, making it a valuable tool for both professionals and hobbyists.
Best For: professionals and hobbyists seeking a reliable, high-quality 8-channel logic analyzer for multi-protocol digital and analog signal debugging.
Pros:
- High-quality, durable hardware with portable design and excellent probes for long-term use
- User-friendly Logic 2 software with multi-protocol decoding, waveform editing, and pattern search features
- Effective for real-time signal capture, debugging, and protocol analysis across various applications
Cons:
- Lacks advanced pattern matching or multi-byte trigger capabilities for complex analysis
- Missing accessories like three-way cables needed for certain protocols or setups
- Some users note room for interface improvements in the software for enhanced usability

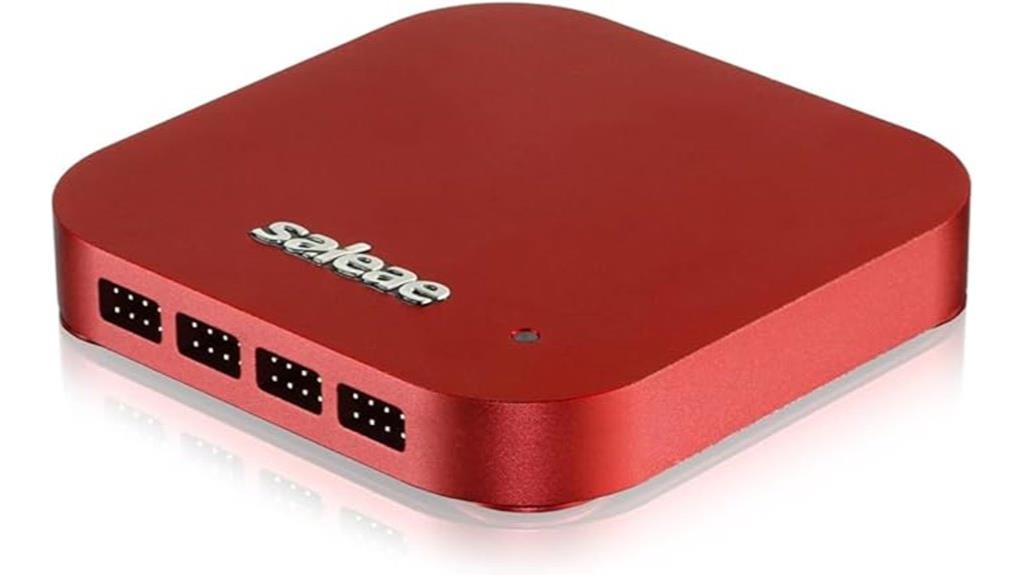

Logic Pro 16 (Red) – Saleae 16-Channel Logic Analyzer
The Saleae Logic Pro 16 (Red) stands out as an excellent choice for engineers and advanced hobbyists who need reliable, high-speed signal analysis across multiple channels. It offers 16 multi-use digital and analog inputs, supporting protocols like SPI, I2C, and RS-232, with digital sampling up to 500 MS/s and analog up to 50 MS/s. Its compact aluminum enclosure is lightweight and durable, making it highly portable. The software provides real-time capture, decoding, and customizable triggers, simplifying complex signal analysis. With a large memory buffer and USB 3.0 interface, it handles over 10 billion digital samples and 500 million analog samples efficiently, making troubleshooting faster and more precise.
Best For: engineers and advanced hobbyists seeking reliable, high-speed multi-channel signal analysis for debugging complex electronics and protocol decoding.
Pros:
- Supports 16 multi-use digital and analog inputs with high sampling rates up to 500 MS/s (digital) and 50 MS/s (analog).
- Compact, durable aluminum enclosure that is lightweight and portable for field and lab use.
- Intuitive software with real-time capture, multiple trigger options, and extensive decoding capabilities.
Cons:
- Higher price point compared to budget alternatives, reflecting its professional-grade features.
- Some users report missing features such as channel selection for bus creation and repeatable triggers.
- Limited protocol trigger options may require scripting or workarounds for advanced automation.
DSLogic U3Pro16 USB Logic Analyzer with 1GHz Sampling Rate
With its impressive 1GHz sampling rate and 16 channels, the DSLogic U3Pro16 USB Logic Analyzer stands out as an ideal choice for professionals and hobbyists who need high-speed, accurate digital signal capture. It offers dual modes: stream and buffer, supporting long recordings with high sample depths. The device features shielded fly wires, an unibody aluminum case, and adjustable voltage thresholds for versatile signal compatibility. Compatible with DSView software on Windows, macOS, and Linux, it provides robust protocol decoding, complex triggering, and timing tools. Its reliable performance, large memory, and high bandwidth make it a cost-effective, professional-grade tool for debugging, protocol analysis, and embedded system development.
Best For: hobbyists, embedded developers, and small labs seeking high-speed, reliable digital signal analysis and protocol decoding.
Pros:
- Supports up to 1GHz sampling rate with 16 channels for versatile high-speed data capture
- Large onboard memory and multiple protocol decoders enhance debugging and analysis capabilities
- Compatible with Windows, macOS, and Linux, with open-source software that is easy to use and regularly updated
Cons:
- Display brightness in light mode can be less than ideal for some users
- No direct compatibility with breadboards, making probe connections less convenient
- Real-time signal plotting may lag until capture is stopped, which could affect live monitoring

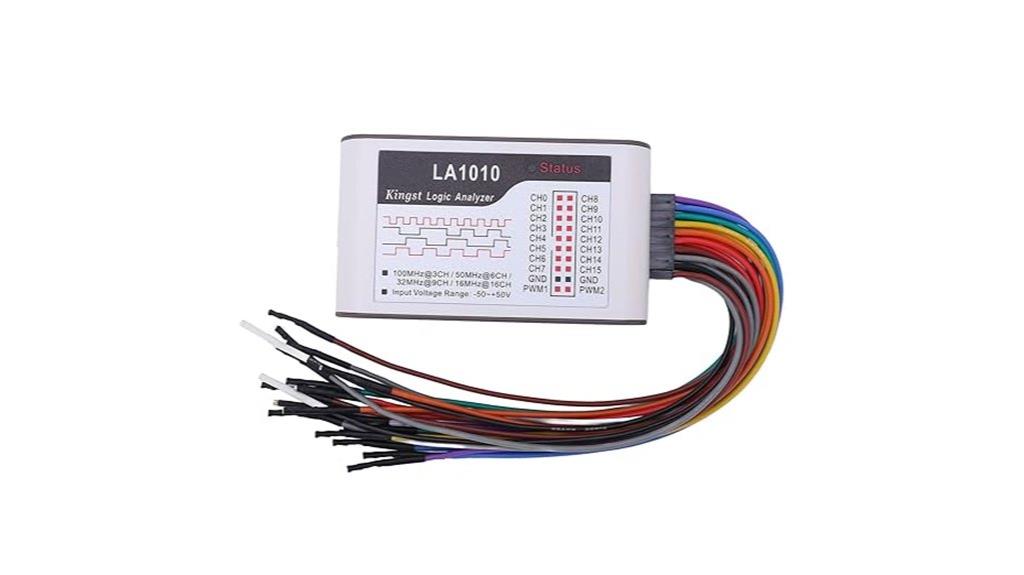

LA1010 USB Logic Analyzer with 16 Channels and 100MHz for Windows, Mac, Linux
Designed for professionals and hobbyists alike, the LA1010 USB Logic Analyzer stands out with its impressive 16-channel configuration and 100MHz sampling rate. It supports a wide range of protocols, including UART, I2C, SPI, CAN, HDMI, and more, making it adaptable for various projects. Compatible with Windows, Mac, and Linux, it connects via HDMI and USB, with a compact size of just 95x55x23mm. Its adjustable logic threshold voltage and deep 10G sampling depth ensure precise signal analysis. Whether debugging microcontrollers, FPGA, or communication systems, the LA1010 provides detailed data display options and reliable performance for both professionals and enthusiasts.
Best For: Electronics professionals and hobbyists seeking a versatile, high-performance logic analyzer for debugging and protocol analysis across multiple platforms.
Pros:
- Supports a wide range of protocols including UART, I2C, SPI, CAN, HDMI, and more, enhancing versatility.
- Compatible with Windows, Mac, and Linux, providing flexible use across different operating systems.
- High sampling rate of 100MHz with a deep 10G memory depth ensures precise and detailed signal analysis.
Cons:
- Compact size may limit the number of physical connections in complex testing setups.
- No built-in batteries; requires connection to a computer for power and operation.
- Slightly higher cost compared to basic logic analyzers, which may be a consideration for budget-conscious users.

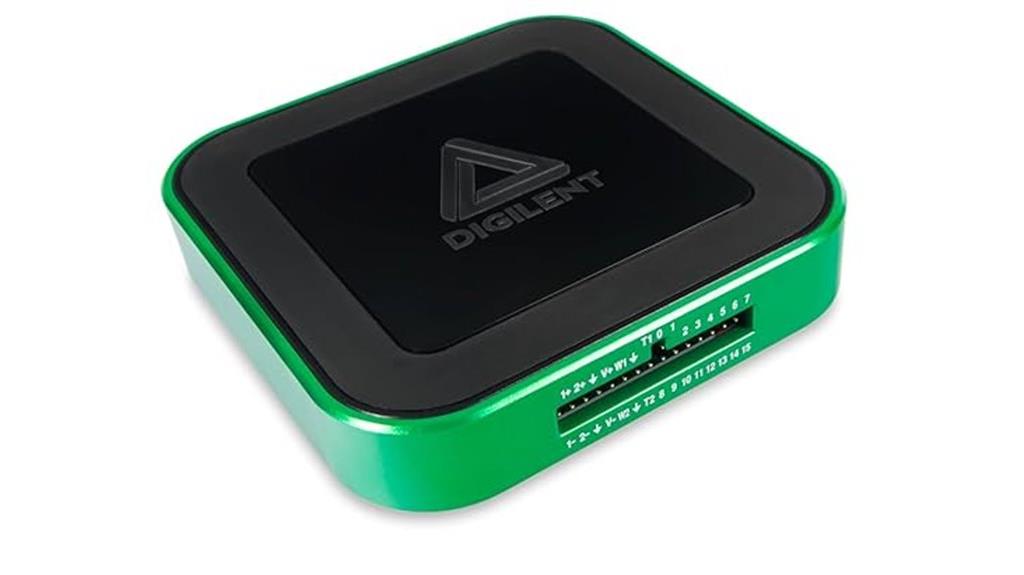

Analog Discovery 3 USB Oscilloscope, Waveform Generator, Logic Analyzer & Power Supply
If you’re looking for an all-in-one device that combines multiple measurement tools into a compact package, the Analog Discovery 3 is an excellent choice. It features a dual differential oscilloscope with 14-bit resolution, sampling at up to 125 MS/s per channel, and over 30 MHz bandwidth. The device includes a two-channel waveform generator supporting standard and custom waveforms, plus a 16-channel logic analyzer operating at 125 MS/s with protocol support like SPI, I2C, UART, and more. It also offers programmable power supplies up to ±5 V and 800 mA. The versatile WaveForms software enhances its measurement and analysis capabilities, making it perfect for both hobbyists and professionals.
Best For: Hobbyists, students, and professionals seeking a versatile, all-in-one measurement tool for electronics testing, analysis, and education.
Pros:
- Combines oscilloscope, waveform generator, logic analyzer, and power supply in a compact device
- Supports high sampling rates (125 MS/s) with high resolution (14-bit) for detailed measurements
- Compatible with comprehensive WaveForms software and SDKs for advanced analysis and automation
Cons:
- Software interface can be clunky and challenging to navigate for some users
- Triggering and zoom functions may lack precision or responsiveness
- Limited bandwidth (over 30 MHz) may not suit high-frequency RF applications
DL16 Plus USB Logic Analyzer with 500MHz Max Sample Rate
The DL16 Plus USB Logic Analyzer stands out for its impressive 500MHz maximum sample rate and 16 channels, making it an excellent choice for professionals working on complex digital circuits. Its 3.5Gbits memory and support for stream mode enable extended sampling times, while the open protocol decoding library allows customization for over 120 protocols. The device’s hardware includes an all-metal CNC shell for durability, shielding, and heat dissipation. It supports multiple trigger and acquisition modes, offering flexible testing options. The user-friendly software interface works across Windows, Ubuntu, and Mac, making setup and analysis quick and straightforward. Overall, it’s a versatile tool for detailed signal analysis.
Best For: professionals and engineers working on complex digital circuit analysis and protocol decoding who require high sampling rates, customizable protocol support, and versatile testing options.
Pros:
- High maximum sample rate of 500MHz with 16 channels for detailed signal capture
- Supports over 120 protocols with open library for customization and continuous updates
- Durable all-metal CNC shell providing excellent shielding, heat dissipation, and stability
Cons:
- GUI font size may be small; magnification recommended for better readability
- Some users may find the software interface less intuitive initially due to numerous features
- Limited hardware storage depth of 1G may constrain very long data captures without stream mode

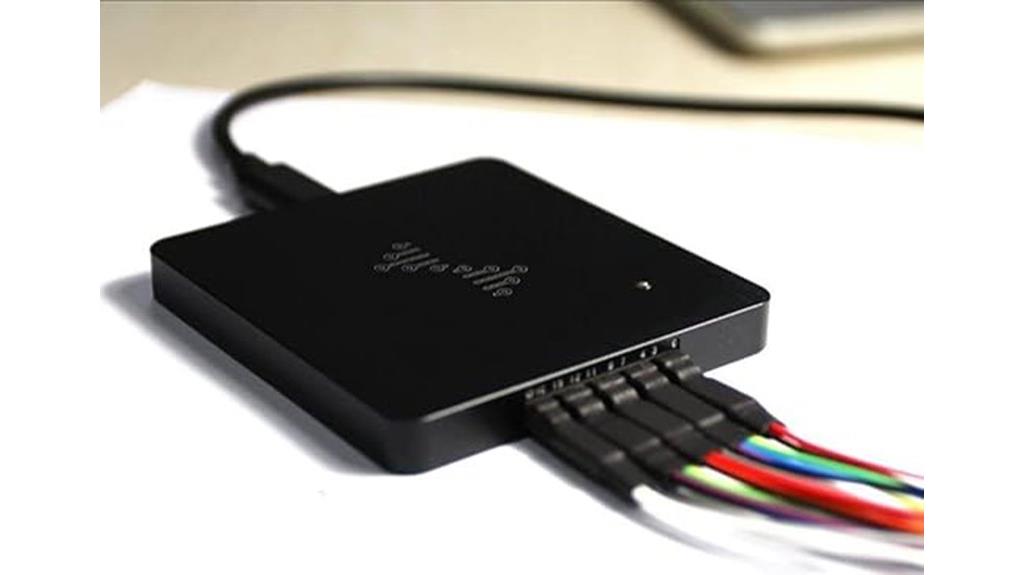

USB Logic Analyzer 16-Channel, 400MHz Sampling Rate
For professionals and serious hobbyists needing high-speed, multi-channel digital signal analysis, the USB Logic Analyzer with 16 channels and a 400MHz sampling rate stands out as an excellent choice. It offers precise capture of fast digital signals, supported by 256Mbit onboard SDRAM memory for long-duration streaming and burst sampling up to 16G depth, ensuring no data loss. Its compact, durable aluminum case enhances portability, while the shielded Dupont wires and USB-C interface deliver interference-free, rapid data transfer. Compatible with open-source Sigrok PulseView software, it supports numerous protocols like UART, SPI, and I2C, making it versatile for debugging, testing, and embedded development.
Best For: Professionals, engineers, and serious hobbyists requiring high-speed, multi-channel digital signal analysis for debugging, testing, and embedded system development.
Pros:
- High sampling rate of 400MHz across 16 channels for precise, real-time signal capture.
- Large 256Mbit SDRAM memory supports extended streaming and burst sampling up to 16G depth without data loss.
- Compatible with open-source Sigrok PulseView software, supporting a wide range of protocols like UART, SPI, and I2C.
Cons:
- May require familiarity with digital signal analysis and protocol decoding for optimal use.
- Initial setup and configuration can be complex for beginners.
- Limited to digital signals; not suitable for analog waveform analysis.
Rigol RPL1116 Logic Analyser Probe
The Rigol RPL1116 Logic Analyser Probe stands out as a practical accessory for users who already own Rigol MSO1000Z Series oscilloscopes or DS1000Z Plus models. Designed as an add-on, it features clear scope indications, labels, and plug-in grippers, making signal analysis straightforward. While the probes generally provide accurate results, some minor flaws, like stickers that fall off easily, can be a nuisance. The kit includes numerous leads and grabbers—though not the expected 32—which was resolved with a replacement. Despite delicate wires requiring careful handling, overall, the probe delivers reliable performance, making it a valuable tool for precise logic analysis.
Best For: electronics technicians and engineers using Rigol MSO1000Z Series or DS1000Z Plus oscilloscopes who need reliable logic analysis with clear scope indications.
Pros:
- Provides accurate logic signals compatible with Rigol oscilloscopes.
- Easy to use with clear labels, scope indications, and plug-in grippers.
- Comprehensive kit with multiple leads and grabbers for versatile testing.
Cons:
- Stickers tend to fall off easily, requiring manual repair with tape.
- The number of leads included may be less than the expected 32, necessitating a replacement.
- Fineness of wires requires careful handling to avoid damage during use.
LA1010 USB Logic Analyzer with 16 Channels and 100MHz Sample Rate
If you’re looking for a versatile logic analyzer that balances high channel count with reliable sampling performance, the LA1010 USB Logic Analyzer is an excellent choice. It features 16 channels and supports streaming mode, with max sampling rates up to 100MHz on three channels and lower rates on more. Its adjustable threshold voltage (-4V to 4V) and compatibility with various logic standards make it adaptable for different circuits. The device offers intuitive waveform analysis, export options (.txt, .csv, .bin), and flexible display formats like binary and hexadecimal. Its user-friendly interface and extensive accessories ensure precise signal capture and analysis across a wide range of digital applications.
Best For: electronics engineers, hobbyists, and educators needing precise digital signal analysis across multiple channels with flexible standards and high sampling rates.
Pros:
- Supports up to 100MHz sampling rate on three channels, ensuring high-resolution data capture
- Adjustable threshold voltage (-4V to 4V) for compatibility with various logic signal standards
- User-friendly interface with customizable analysis conditions and multiple export options
Cons:
- Limited sampling depth (up to 100G) may be constrained by computer memory for very long recordings
- Performance potentially affected if thresholds are not properly matched to signal levels
- Requires understanding of digital signal standards for optimal configuration and use
16 Channel Logic Analyzer with High Sampling Rate
A 16-channel logic analyzer with a high sampling rate of up to 100M is an essential tool for electronics professionals and developers who need precise, real-time data capture across multiple signals. Its compatibility with Windows, Linux, and OS X ensures flexibility in various environments. The device’s robust hardware includes four accessories and supports USB 2.0 high-speed connections, with excellent performance when plugged into the back USB port of desktops. Supporting over 17 serial protocols like SPI, UART, CAN, and JTAG, it allows detailed protocol analysis with customizable settings. The modern software interface simplifies operation, upgrades, and data export, making it ideal for complex debugging tasks.
Best For: electronics engineers, developers, and technicians requiring precise multi-signal data capture and detailed protocol analysis across various operating systems.
Pros:
- Supports high sampling rate up to 100M for accurate real-time data capture
- Compatible with Windows, Linux, and OS X, offering versatile usability
- Supports over 17 serial protocols with customizable analysis settings
Cons:
- Optimal performance relies on connecting to the back USB port of desktops, may be less suitable for laptops with lower-quality USB ports
- Requires USB 2.0 high-speed support for best operation, limiting compatibility with older USB ports
- May have a learning curve for users unfamiliar with protocol analysis and software configuration
16 Channel USB Logic Analyzer with 100M Sampling Rate and Protocol Support
For professionals who need detailed protocol analysis across multiple signals, this 16-channel USB logic analyzer stands out with its 100M sampling rate and extensive protocol support. It offers real-time data collection through a high-speed USB2.0 interface, with flexible sampling rates—up to 100M for three channels and 16M for all sixteen—ensuring accurate capture of fast signals. Its robust protocol parsing supports RS232 and other protocols, enabling precise debugging. Compatible with Logic2 software, it provides an intuitive interface for viewing timing, communication content, and saving data. Its thorough features make it ideal for in-depth signal analysis and troubleshooting across complex digital systems.
Best For: professionals and engineers needing precise, real-time protocol analysis and debugging across multiple digital signals in complex electronic systems.
Pros:
- Supports high-speed sampling up to 100M for accurate capture of fast signals.
- Compatible with Logic2 software for an intuitive and comprehensive analysis interface.
- Offers extensive protocol parsing options, including RS232, for detailed debugging.
Cons:
- May require a powerful computer to handle high sampling rates and large data storage.
- Limited to USB2.0 interface, which might be slower compared to newer standards.
- The device and software may have a learning curve for new users unfamiliar with digital signal analysis.
Factors to Consider When Choosing Logic Analyzers High Channel Count
When selecting a high-channel-count logic analyzer, I consider how many signals I need to monitor and whether the sampling speed meets my testing requirements. I also look at protocol compatibility to make sure it works with my projects and check software features for ease of use. Finally, hardware durability is important for long-term reliability in my workspace.
Channel Quantity Needs
Choosing the right logic analyzer means carefully considering the number of signals you need to monitor simultaneously. To do this, identify all the digital signals or protocols essential for your project. High-channel-count analyzers usually provide 16, 32, or more channels, making them suitable for complex systems with multiple buses or components. Think ahead about future expansion—if you anticipate adding more signals later, select a device that can grow with your needs. Matching the channel count to your project’s complexity helps avoid under- or over-specification, saving costs and complexity. Keep in mind that higher channel counts can increase both price and setup difficulty, so balance your current requirements with your budget and technical capabilities for ideal results.
Sampling Speed Requirements
High sampling speeds are essential for accurately capturing fast digital signals and short pulse events, especially in high-speed protocol analysis. When dealing with protocols like USB 2.0 or HDMI, I recommend a sampling rate at least twice the maximum signal frequency to meet Nyquist criteria, ensuring reliable data capture. Slower speeds, such as 24MHz, risk missing narrow pulses or misrepresenting timing details, which can compromise analysis accuracy. For signals with rapid edges or tight timing constraints, choosing a logic analyzer with a considerably higher sampling rate enhances measurement fidelity. The key is to match the maximum effective sampling speed with your specific protocol or signal requirements, so you get complete, precise data without missing critical pulse information.
Protocol Compatibility
Selecting a logic analyzer with the right protocol compatibility is essential to guarantee it can handle your specific communication standards. I look for devices that support key protocols like I2C, SPI, UART, CAN, JTAG, or your proprietary standards, ensuring thorough signal analysis. It’s important that the protocol decoding library covers a broad range of protocols or allows for customization, so I can adapt it to future needs. I also verify software compatibility with my operating system—whether Windows, macOS, or Linux—to avoid integration issues. Firmware and software updates are crucial for maintaining support for new protocols and versions over time. Additionally, I consider whether the analyzer offers automatic detection or manual configuration, allowing for accurate interpretation across different communication standards.
Software Features
When evaluating software features for high-channel-count logic analyzers, I focus on tools that offer robust protocol decoding, real-time data viewing, and support for multiple data formats. These features allow me to quickly interpret complex signals and identify issues efficiently. Support for protocols like I2C, SPI, UART, CAN, and JTAG simplifies debugging by enabling seamless analysis across different interfaces. An intuitive, user-friendly interface with search functions, trigger options, and easy navigation improves workflow during data capture. Additionally, compatibility with open-source software like Sigrok and PulseView provides customization and automation options, extending the analyzer’s capabilities. Reliable software stability, regular updates, and detailed documentation are essential to guarantee consistent performance and maximize the potential of high-channel-count analyzers.
Hardware Durability
Durability plays a vital role in ensuring that a high-channel-count logic analyzer performs reliably over time, especially in demanding testing environments. Rugged metal enclosures, like CNC-machined aluminum or reinforced plastic cases, help protect against physical damage and environmental stress. High-quality input connectors and shielding prevent damage from voltage spikes and electromagnetic interference, boosting longevity. The probes and cables must be robust and flexible to resist wear, ensuring consistent signal integrity and reducing connection failures. Internal components such as FPGA chips and memory modules should be rated for continuous high-speed operation without overheating or degrading. Manufacturers that incorporate extensive build quality, over-voltage protection, and secure connector locking mechanisms contribute greatly to the analyzer’s lifespan, making durability a key consideration for long-term reliability.
Power Supply Options
Most high-channel-count logic analyzers are powered through their USB connections, which simplifies setup and reduces clutter. However, some models feature dedicated power ports or support external sources, guaranteeing stable operation during intensive data collection. The voltage range supported (-0.5V to 5.25V) impacts power supply design, requiring careful over-voltage protection and stability measures. Portable or field-use analyzers often rely solely on USB power, which can limit performance if the USB port supplies insufficient current or voltage. For analyzers with advanced features like waveform generation or high-speed protocols, an external or dedicated power supply may be necessary to maintain consistent operation and minimize power-related signal noise. Choosing the right power option ensures reliable performance and longevity.
Connection Accessories
Choosing the right connection accessories is essential for guaranteeing secure and accurate signal capture with high-channel-count logic analyzers. I look for compatible accessories like shielded wires, test hooks, and grabbers that prevent interference and provide stable connections. It’s important they support the voltage levels and signal standards in my circuits, whether 3.3V, 5V, or differential signals. Durability and flexibility matter too, so accessories can withstand frequent setup and teardown without damage. I also check if the package includes enough test hooks and wires for multi-channel testing, enabling simultaneous signal capture. Additionally, accessories should be easy to connect to my circuit, whether through breadboards, jumper wires, or specific connectors, to streamline the setup process and ensure reliable measurements.
Budget Constraints
Budget constraints play a significant role in selecting a high-channel-count logic analyzer, often forcing me to weigh essential features against cost. Higher channel count models tend to be more expensive, so I might need to contemplate lower-channel or used options to stay within budget. Affordable analyzers usually compromise on sampling rate or protocol support, which can affect measurement accuracy and versatility. Entry-level devices may lack advanced features like deep memory, extensive protocol decoding, or high-speed sampling—crucial for complex projects. Sometimes, I prioritize features such as maximum channels, sampling rate, or software compatibility over brand reputation or extras. While a higher-channel analyzer might seem costly upfront, it can save money long-term by reducing the need for additional tools or multiple devices for comprehensive debugging.
Frequently Asked Questions
How Does Channel Count Affect Signal Analysis Accuracy?
Higher channel count improves signal analysis accuracy by allowing me to monitor more signals simultaneously, giving a clearer picture of complex interactions. It helps me pinpoint issues across multiple points in a system quickly, reducing blind spots. More channels mean I can capture data from various parts of a circuit at once, making my analysis more precise and all-encompassing. Overall, increased channels lead to better troubleshooting and system understanding.
What Are Common Limitations of High Channel Count Analyzers?
Think of high channel count analyzers as a symphony with many instruments—sometimes, too many can create chaos. Their common limitations include increased complexity, which makes setup and troubleshooting harder, and higher costs. Additionally, they often demand more powerful processing units, risking signal integrity issues. I’ve found that balancing channel count with usability and budget is key to getting reliable, precise results without the overwhelm.
Which Software Features Optimize Multi-Channel Data Interpretation?
I believe the software features that truly optimize multi-channel data interpretation include synchronized viewing, which allows me to analyze multiple signals at once, and advanced triggering options to focus on specific events. Additionally, I rely on real-time decoding, customizable displays, and robust filtering tools to clearly distinguish signals. These features help me identify issues faster, improve accuracy, and make sense of complex data across numerous channels efficiently.
How Compatible Are High Channel Analyzers With Different Operating Systems?
High channel analyzers vary in compatibility, but I find most are designed to support multiple operating systems, including Windows, Linux, and sometimes macOS. I appreciate when they offer flexible drivers and software that adapt seamlessly across platforms. This compatibility guarantees I can integrate the analyzer into my workflow without hassle, enabling me to analyze signals accurately whether I’m using a PC, a Linux system, or a Mac.
What Maintenance Practices Ensure Long-Term Device Reliability?
To guarantee long-term device reliability, I regularly clean my analyzer’s probes and connectors to prevent dust buildup. I also update the firmware and software whenever updates are available, which fixes bugs and improves performance. Additionally, I store the analyzer in a dry, dust-free environment and avoid exposing it to extreme temperatures. Proper calibration and gentle handling further extend its lifespan, keeping it functioning accurately over time.
Conclusion
Choosing the right logic analyzer with high channel count truly depends on your specific needs, from sampling rates to software support. Remember, “the devil is in the details,” and investing in a quality tool guarantees precise signal analysis. Don’t rush your decision—careful selection now pays off in accurate, reliable measurements later. With the right analyzer, you’ll gain the clarity needed to troubleshoot and develop with confidence.
