If you’re looking for the best oscilloscopes over 200 MHz for precise signal analysis in 2025, I recommend models like the Siglent SDS2204X Plus, SDS1204X-E, and Rigol DS1202Z-E. These offer high bandwidths, deep memory, and advanced decoding features. Portable options like FNIRSI’s 1013D Plus are also great for fieldwork. Keep in mind the key factors like sampling rate and trigger modes, and if you continue, you’ll discover which one suits your needs best.
Key Takeaways
- Top models offer high bandwidth (200-350MHz), deep memory, and high sampling rates (up to 2 GSa/s) for accurate high-frequency signal analysis.
- Features like multi-channel support, advanced triggering, and serial decoding enhance measurement precision and troubleshooting.
- Portable and field-ready oscilloscopes provide high-voltage protection, touchscreen interfaces, and battery operation for on-the-go testing.
- Professional-grade oscilloscopes include high-resolution (12-bit) options with low noise floor and extensive protocol decoding capabilities.
- User-friendly interfaces, large displays, and versatile connectivity options ensure efficient and precise signal capture in diverse applications.

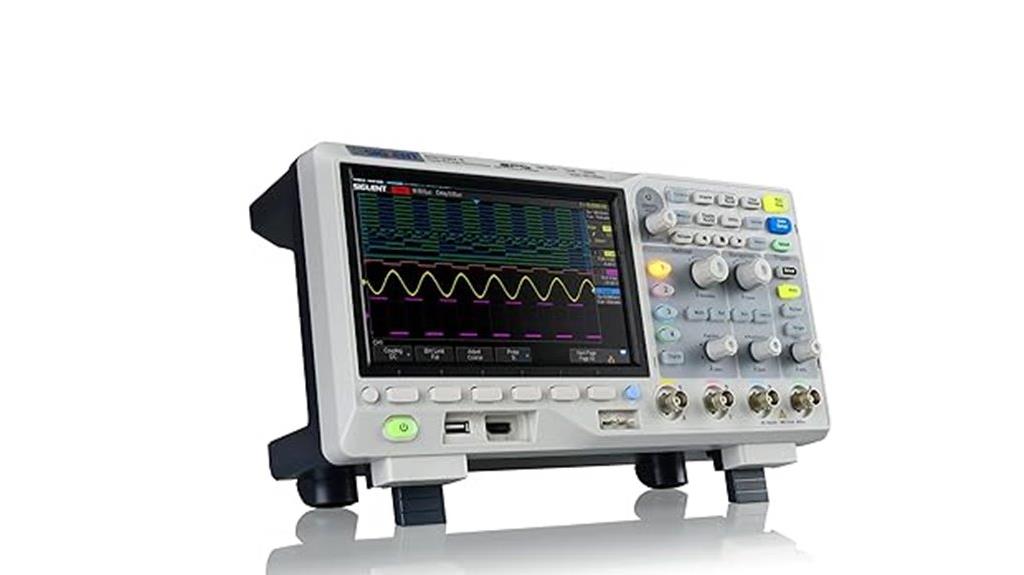

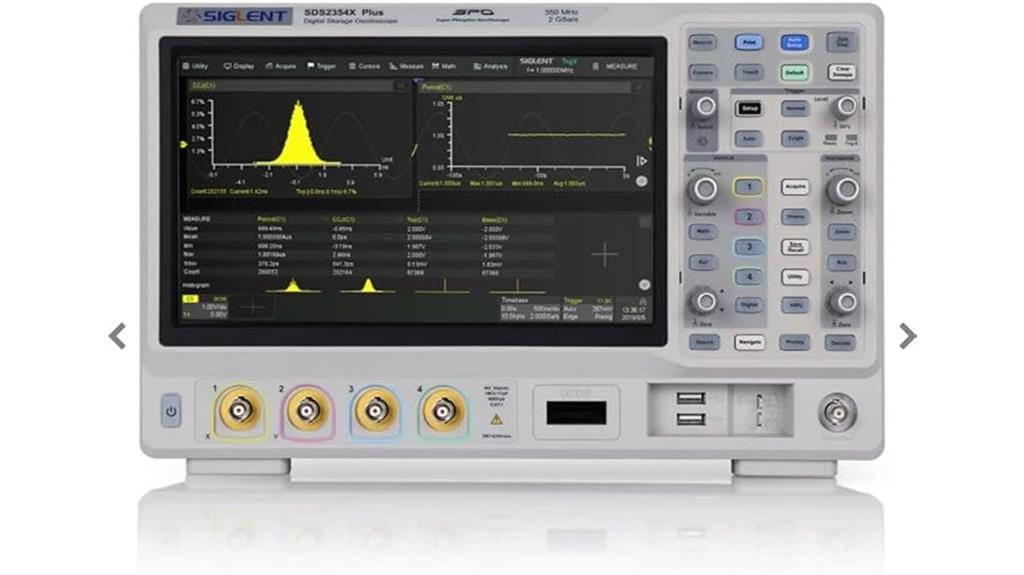

SIGLENT SDS2204X Plus 4-Channel Digital Oscilloscope
If you’re looking for a reliable oscilloscope with over 200MHz bandwidth, the SIGLENT SDS2204X Plus is an excellent choice. It features four channels, making it versatile for complex signal analysis. Its 200 MHz bandwidth and real-time sampling rate of up to 2 GSa/s ensure accurate waveform capture. With a record length of 200 Mpts, I can analyze detailed signals without missing data. The high waveform capture rate—up to 120,000 wfm/s in normal mode and 500,000 in sequence mode—keeps me efficient. Plus, its serial bus triggering and decoding capabilities for protocols like I2C, SPI, UART, and more make it a thorough tool for modern electronics testing.
Best For: electronics engineers and technicians needing precise, high-speed waveform analysis for complex signals across multiple channels.
Pros:
- 200 MHz bandwidth with up to 2 GSa/s sampling rate for accurate signal capture
- 200 Mpts record length allows detailed waveform analysis
- High waveform capture rate up to 500,000 wfm/s in sequence mode enhances testing efficiency
Cons:
- May be expensive for casual hobbyists or small-scale users
- Large size and weight could limit portability for field use
- Advanced features may require additional training or experience to utilize fully
Siglent SDS1204X-E 200MHz Digital Oscilloscope
The Siglent SDS1204X-E 200MHz Digital Oscilloscope stands out as an excellent choice for engineers and hobbyists who need reliable, high-resolution signal analysis across multiple channels. It features four channels, a 1 GSa/s sample rate, and a 14 Mpts record length, enabling detailed measurements. The 7-inch TFT-LCD display provides clear visuals, while advanced trigger options support complex signal examinations. Its compatibility with Siglent waveform generators and remote control via LAN or WiFi (with some limitations) makes it versatile. Although calibration and WiFi performance can be issues, overall, it offers solid performance, great value, and user-friendly features for precise signal analysis.
Best For: engineers and hobbyists seeking a reliable, high-performance oscilloscope with multi-channel analysis and advanced triggering capabilities.
Pros:
- High bandwidth (200MHz) with 4 channels for versatile signal analysis
- Large 7-inch display with clear visuals and high resolution
- Supports advanced trigger functions and detailed measurements with 14 Mpts record length
Cons:
- WiFi functionality can be laggy and difficult to connect reliably
- Calibration certificates may be outdated, requiring recalibration for precise measurements
- External hardware like the AWG and WiFi dongle require additional purchases

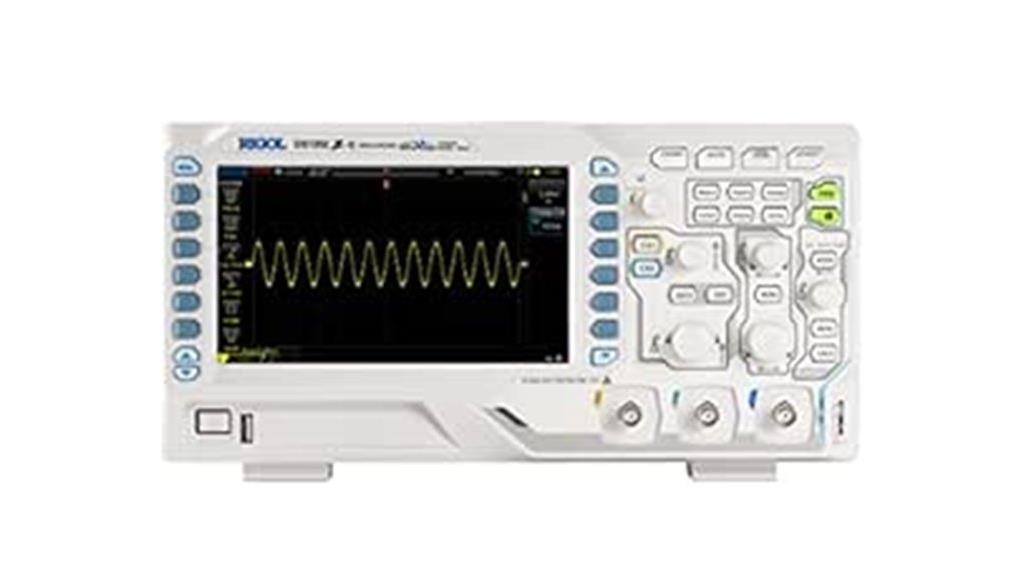

Rigol DS1202Z-E Digital Oscilloscope
For anyone seeking a high-performance oscilloscope that balances advanced features with affordability, the Rigol DS1202Z-E stands out with its 200 MHz bandwidth and 1 GSa/s sampling rate. It offers two analog channels, deep memory up to 24 Mpts, and waveform capture rates of 30,000 wfms/s, enabling detailed analysis of complex signals and transient events. Its sturdy build and bright display provide ease of use, while features like FFT, serial decoding, and math functions enhance troubleshooting and development. Priced around $300, it’s an exceptional value, delivering professional-grade performance in a compact, reliable package suitable for hobbyists and engineers alike.
Best For: hobbyists, students, and professionals seeking a reliable, feature-rich oscilloscope at an affordable price for detailed signal analysis and troubleshooting.
Pros:
- Excellent value with professional-grade features at around $300
- Deep memory and high sampling rate enable precise analysis of complex signals
- Compact, sturdy build with an intuitive interface and bright display
Cons:
- Some knobs are overly sensitive, which may require careful handling
- Certain functions are nested deep within menus, potentially slowing access
- Slightly unnecessary illumination during startup can be distracting

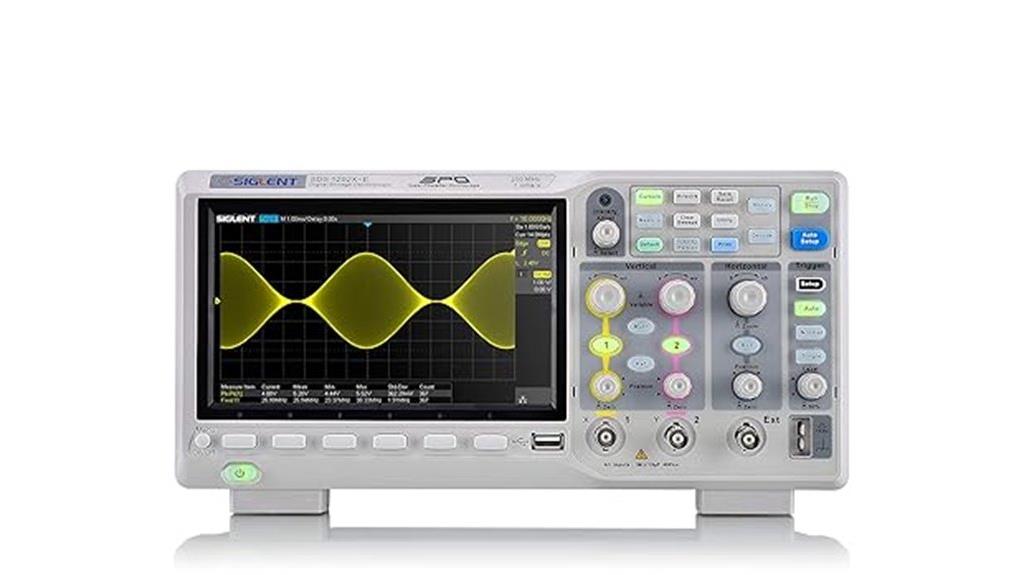

Siglent SDS1202X-E 200 MHz Digital Oscilloscope
The Siglent SDS1202X-E stands out as an excellent choice for professionals and serious hobbyists seeking a reliable 200 MHz digital oscilloscope with advanced features. It offers dual channels, a 1 GSa/s sampling rate, and a record length of 14 Mpts, ensuring precise signal capture. Its high waveform update rate of 400,000 frames/sec and FFT math functions provide detailed analysis. The scope supports serial bus decoding, history waveform recording, and multiple trigger modes. Built with a durable design, intuitive interface, and low noise levels, it delivers dependable performance for complex testing, troubleshooting, and signal analysis at an attractive price point.
Best For: hobbyists, engineers, and technicians seeking a cost-effective yet feature-rich 200 MHz digital oscilloscope for precise signal analysis and troubleshooting.
Pros:
- High sampling rate of 1 GSa/s and record length of 14 Mpts ensure accurate signal capture and detailed analysis
- User-friendly interface with quick calibration, making it suitable for beginners and professionals alike
- Supports advanced functions like serial bus decoding, FFT analysis, and history waveform recording for comprehensive testing
Cons:
- Side power cord placement may limit shelf space and accessibility
- Minor probe grounding issues reported by some users, requiring careful setup
- The absence of a built-in battery limits portability for field use

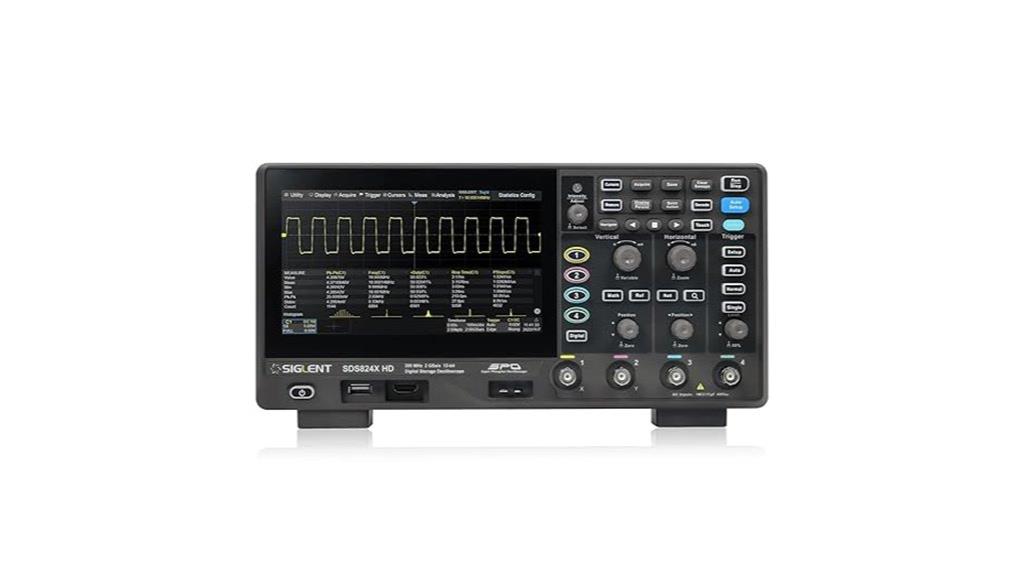

Siglent SDS824X HD – Mixed Signal Oscilloscope (4 Channel / 200 MHz)
If you’re seeking a high-performance oscilloscope capable of detailed mixed signal analysis at up to 200 MHz bandwidth, the Siglent SDS824X HD stands out as an excellent choice. It offers four analog channels, 16 digital channels (with optional accessories), and a 12-bit converter for precise, low-noise measurements. Its high waveform capture rates—up to 120,000 wfm/s in normal mode and 500,000 wfm/s in sequence mode—ensure fast, accurate data acquisition. The scope’s intuitive touch screen, advanced decoding features, and excellent noise floor make it ideal for complex signal analysis. Overall, it combines versatility, reliability, and affordability, making it perfect for engineers, hobbyists, and students alike.
Best For: engineers, hobbyists, and students seeking a high-performance, versatile mixed signal oscilloscope with advanced analysis features at an affordable price.
Pros:
- High-resolution 12-bit converter ensures precise, low-noise measurements.
- Fast waveform capture rates up to 500,000 wfm/s enable accurate data acquisition in real-time.
- Intuitive touch screen interface with advanced decoding and math capabilities enhances user experience.
Cons:
- Some advanced features like Power Analysis require additional licenses (~$350).
- External termination may be needed at high frequencies for optimal signal integrity.
- The feature-rich interface can have a learning curve for new users.

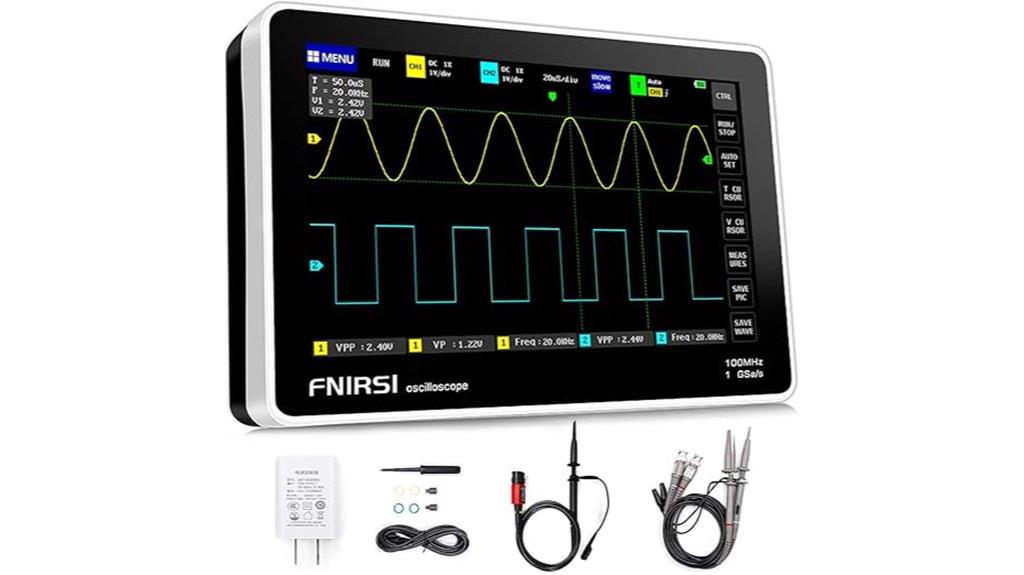

FNIRSI 1013D Plus Portable Handheld Oscilloscope
When I need a portable oscilloscope capable of handling high-voltage environments safely, the FNIRSI 1013D Plus stands out with its high-voltage protection supporting up to 400V. It features a 100 MHz bandwidth, 1 GSa/s sampling rate, and a 7-inch touchscreen display with crisp resolution. The device includes a 100X high-voltage probe, allowing safe measurements without ground issues, and offers up to four hours of battery life. Its user-friendly interface supports waveform storage, zooming, and quick measurements. While it’s ideal for field diagnostics and hobbyist use, some manual clarity and trigger adjustments could be better. Nonetheless, it’s a practical, portable choice for high-voltage testing.
Best For: hobbyists, field technicians, and professionals needing a portable high-voltage safe oscilloscope for quick diagnostics and field testing.
Pros:
- Portable and lightweight with a 7-inch touchscreen display for easy operation
- High-voltage protection supporting up to 400V, ensuring safe measurements in high-voltage environments
- Supports waveform storage, zooming, and quick measurements, making it versatile for various testing scenarios
Cons:
- Manual setup and trigger adjustments can be inconsistent or unclear at times
- USB port primarily for charging; data transfer requires a compatible cable, which may not be included
- Limited advanced features and manual clarity, making it less suitable for calibration or high-precision measurements

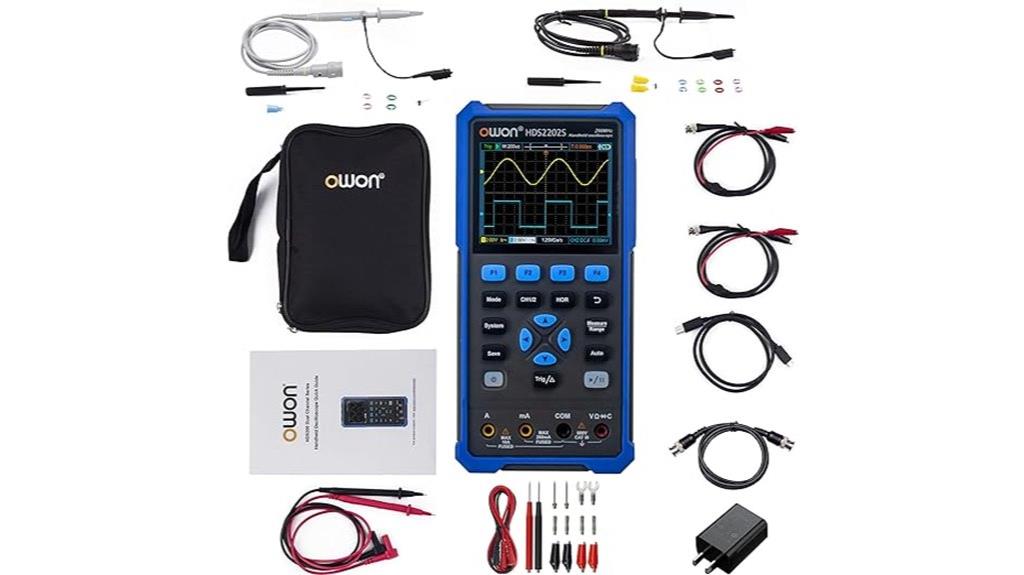

HDS2202S Oscilloscope, 200MHz Bandwidth with Multimeter and Waveform Generator
For professionals and hobbyists seeking a portable, all-in-one testing device, the HDS2202S Oscilloscope stands out with its 200MHz bandwidth combined with a built-in multimeter and waveform generator. It offers a 1GSa/s sampling rate, 8K record length, and a high-resolution color display, making waveform analysis straightforward. The integrated waveform generator produces signals up to 25MHz, while the multimeter provides basic measurements with auto-ranging. Though its trigger and measurement options are limited, the device delivers reliable performance for general testing. Its compact size and versatile features make it an excellent choice for on-the-go signal analysis, especially when space and convenience matter.
Best For: hobbyists, students, and professionals needing a portable, multi-function testing device with oscilloscope, multimeter, and waveform generator capabilities.
Pros:
- Combines oscilloscope, multimeter, and waveform generator into a compact, portable unit.
- High-resolution color display with intuitive interface and SCPI command support.
- Accurate general-purpose measurement functions suitable for various testing scenarios.
Cons:
- Limited trigger and advanced measurement features on the oscilloscope.
- Short battery life (approximately 3-4 hours) and limited accessory quality.
- Waveform generator output voltage and duty cycle adjustments are limited, with no true DC output.

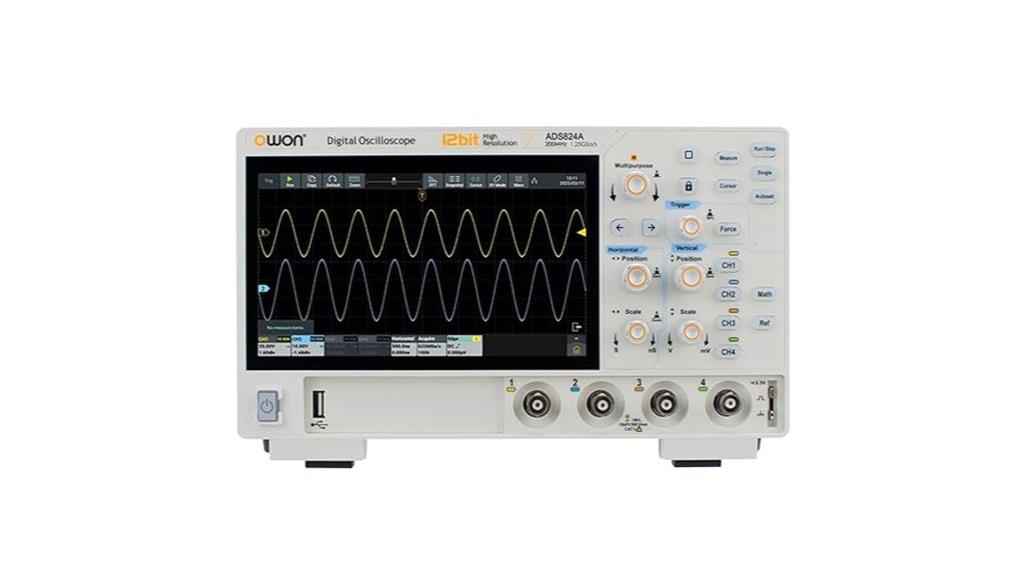

Digital Oscilloscope ADS824A 200MHz OWON with 4 Channels and 12-bit Resolution
The Digital Oscilloscope ADS824A 200MHz OWON stands out as an excellent choice for professionals who need precise, high-speed signal analysis across multiple channels. With four channels and 12-bit resolution, it offers detailed waveform capture with 4096 levels, supporting sensitivities from 500μV/div to 10V/div. Its real-time sampling rate of 1.25GSa/s and 50M memory depth ensure accurate, high-speed data acquisition. The 7-inch multi-touch LCD makes navigation intuitive, while features like zoom, cursor gating, FFT, and XY modes enhance analysis. Connectivity options such as HDMI, USB, LAN, and protocol decoding make it versatile for digital troubleshooting, circuit diagnosis, and communication testing.
Best For: professionals and engineers requiring precise, high-speed multi-channel signal analysis, troubleshooting, and communication protocol decoding in electronic testing and development.
Pros:
- High bandwidth (200MHz) and 12-bit resolution for detailed waveform capture
- Fast real-time sampling rate (1.25GSa/s) and extensive memory (50M points) for accurate data acquisition
- Versatile connectivity options including HDMI, USB, LAN, and protocol decoding support
Cons:
- May be expensive for casual or hobbyist users
- Complex features might require training for optimal use
- Large data files could demand substantial storage and processing power

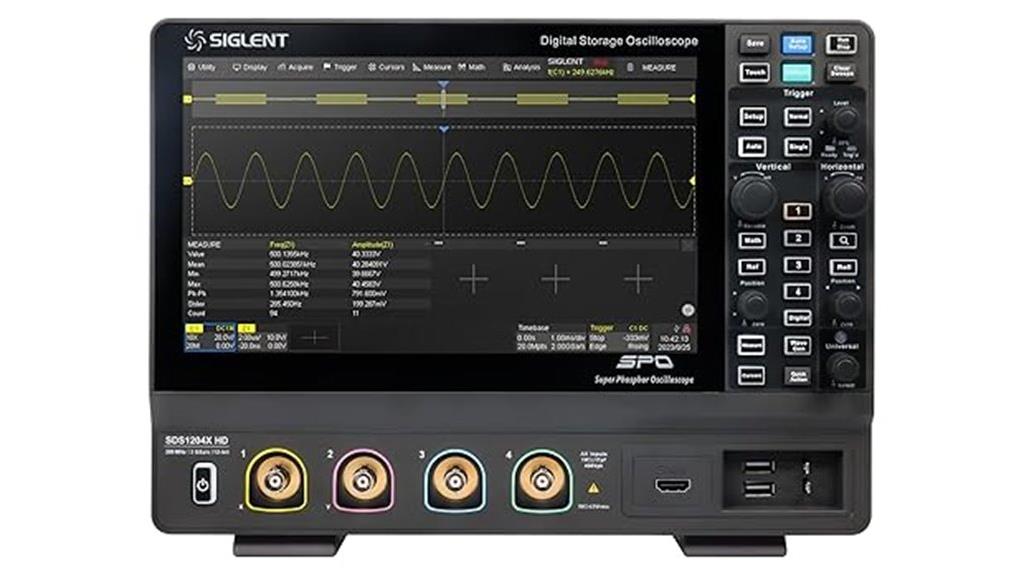

Siglent SDS1204X HD 200MHz 12bit Digital Storage Oscilloscope
If you’re looking for a high-performance oscilloscope capable of detailed signal analysis at 200MHz, the Siglent SDS1204X HD stands out with its 12-bit resolution and fast waveform capture rates. It features four analog channels and optional digital channels, making it versatile for various testing needs. With a 2GSa/s sampling rate and a massive 100Mpts memory depth, it captures complex signals accurately. The 10.1-inch touchscreen provides an intuitive interface, supporting multi-touch gestures. Its noise floor is as low as 70 μVrms, ensuring high signal integrity. Overall, the SDS1204X HD offers precise measurements and excellent signal quality for demanding applications.
Best For: engineers and technical professionals needing high-resolution, high-speed signal analysis across complex electronic systems.
Pros:
- 12-bit high resolution ensures precise signal measurement and detailed analysis.
- Fast waveform capture rates up to 120,000 waveforms/sec in normal mode and 500,000 in sequence mode.
- Low noise floor of 70 μVrms provides high signal integrity and clarity.
Cons:
- The digital channels are optional and require additional accessories.
- The large 10.1-inch touchscreen may be less portable for field use.
- High-performance features may come at a higher price point compared to entry-level oscilloscopes.

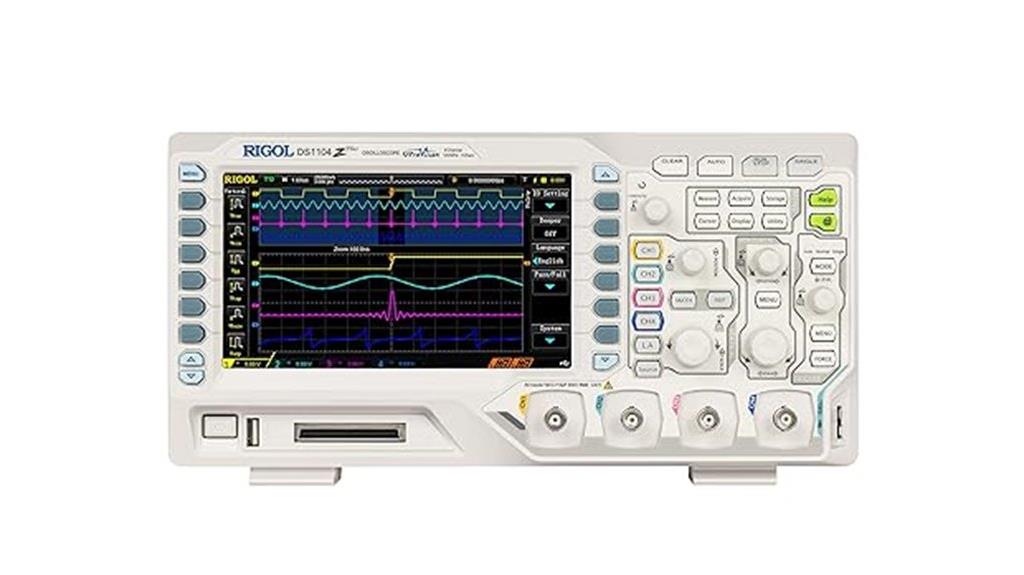

Rigol DS1104Z-S Plus Digital Oscilloscope
The Rigol DS1104Z-S Plus stands out as an excellent choice for engineers and technicians needing versatile testing features in a compact form. It offers four channels, 100 MHz bandwidth, and a 1 GSa/s sampling rate, ensuring accurate signal capture. The scope’s 24 Mpts deep memory and UltraVision technology enable fast waveform acquisition—up to 30,000 wfms/sec—and detailed analysis. Its built-in 25 MHz arbitrary waveform generator and digital logic connector support advanced testing and logic analysis, with an optional MSO upgrade. Plus, the included software bundle simplifies data management. Overall, it combines performance, expandability, and user-friendly features for all-encompassing electronic testing.
Best For: engineers and technicians seeking a versatile, high-performance digital oscilloscope with deep memory, advanced signal generation, and expandability for comprehensive electronic testing.
Pros:
- Offers 4 channels, 100 MHz bandwidth, and 1 GSa/s sampling rate for accurate signal capture.
- Includes a built-in 25 MHz arbitrary waveform generator and digital logic connector for advanced testing.
- Deep 24 Mpts memory and UltraVision technology enable fast waveform capture and detailed analysis.
Cons:
- Limited bandwidth of 100 MHz may not suit very high-frequency applications.
- The optional MSO upgrade and accessories may incur additional costs.
- Slightly complex interface for beginners unfamiliar with advanced oscilloscopes.

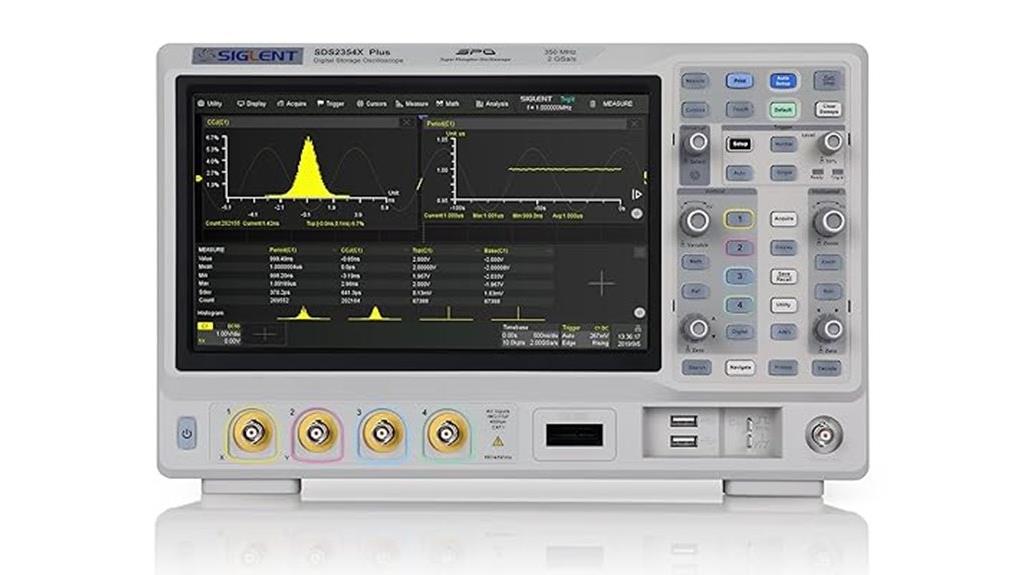

SIGLENT SDS2104X Plus 4-Channel Digital Oscilloscope
Designed for professionals who need reliable, high-performance measurement tools, the SIGLENT SDS2104X Plus stands out with its 100 MHz bandwidth and 4-channel capability. It offers a real-time sampling rate up to 2 GSa/s and record length of 200 Mpts, enabling detailed waveform analysis. Its large 10.1-inch capacitive touch screen supports multi-touch gestures, making operation intuitive. The scope includes serial bus triggering and decoding for protocols like I2C, SPI, UART, CAN, and LIN, with options for more advanced protocols. Advanced features like high waveform capture rates, 256 intensity levels, and 10-bit resolution make it ideal for precise, professional signal analysis.
Best For: professionals and engineers requiring high-precision waveform analysis and versatile signal measurement capabilities in research, development, and industrial settings.
Pros:
- High sampling rate of up to 2 GSa/s and record length of 200 Mpts for detailed waveform capture
- Large 10.1-inch capacitive touch screen with multi-touch support enhances ease of use and navigation
- Advanced serial decoding and triggering for protocols like I2C, SPI, UART, CAN, and LIN, suitable for complex signal analysis
Cons:
- Some users report that included probes may have quality issues, impacting measurement accuracy
- Firmware features like confirmation pop-ups can interrupt workflow and may require updates for smoother operation
- The device’s size and weight, while portable, may still be less convenient for highly mobile field applications
UNI-T UPO1202CS Digital Oscilloscope (200MHz, 2 Channel)
For professionals who need precise signal analysis at high frequencies, the UNI-T UPO1202CS Digital Oscilloscope stands out with its 200 MHz bandwidth and 1 GSa/s sampling rate. It features two channels, a detailed 56 Mpts memory, and a high refresh rate of 500,000 waveforms per second, ensuring smooth and detailed waveform capture. The ultra-phosphor display offers 256 gray levels for clear, intricate signal visualization. It supports remote control via web interface, compatible with PCs and mobile devices, removing the need for extra software. The scope also includes spectrum analysis capabilities with 1 Mpts FFT points, making it a versatile tool for all-encompassing signal analysis.
Best For: professionals and engineers requiring precise high-frequency signal analysis with detailed waveform capture and spectrum analysis capabilities.
Pros:
- 200 MHz bandwidth with a high 1 GSa/s sampling rate for accurate signal measurement.
- Large 56 Mpts memory depth enables detailed waveform analysis and millisecond-level decoding.
- Remote control via web interface allows flexible operation across PC and mobile devices without extra software.
Cons:
- The device may be relatively expensive compared to entry-level oscilloscopes.
- Limited to 2 channels, which might be restrictive for more complex multi-signal testing.
- The advanced features and high specifications may require some technical expertise to fully utilize.

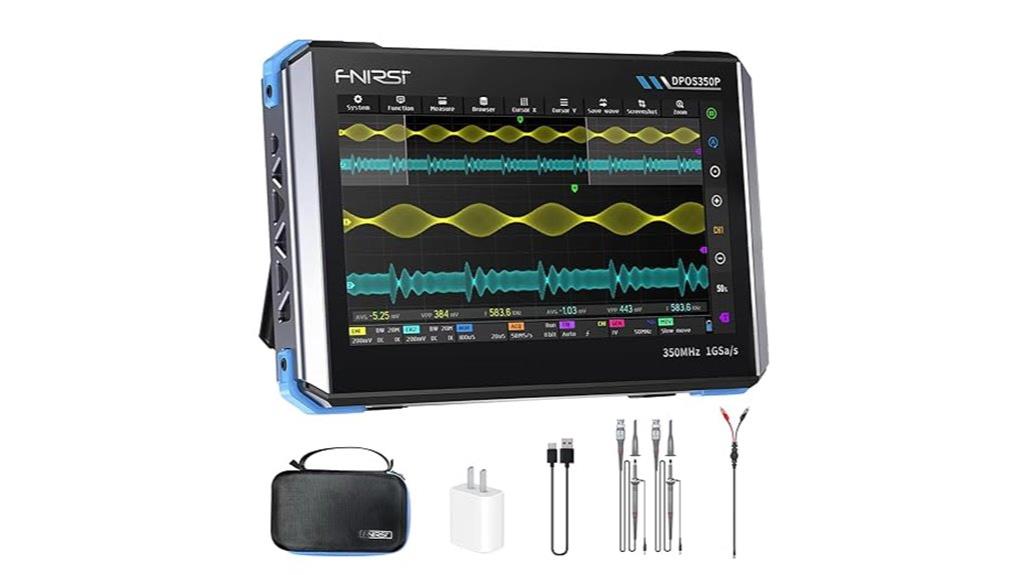

FNRSI DPOS350P 4-in-1 Oscilloscope, 350MHz Digital Phosphor Scope + 50MHz Signal Generator + 350MHz Spectrum Analyzer + 50MHz FRA
If you’re looking for an all-in-one instrument that combines high-performance measurement tools, the FNRSI DPOS350P 4-in-1 Oscilloscope is an excellent choice. It features a 350MHz digital phosphor scope with 1GSa/s sampling and a 50,000 waveform/sec refresh rate, ensuring sharp waveform visualization and fast updates. The device also includes a 50MHz signal generator with versatile waveforms, a 350MHz spectrum analyzer with FFT analysis, and a 50MHz frequency response analyzer for system testing. Its high-resolution touchscreen, extensive storage, and overvoltage protection make it suitable for labs, production, and field diagnostics, offering *all-encompassing* measurement capabilities in a compact package.
Best For: professionals and engineers needing an all-in-one portable testing instrument for lab, production, and field diagnostics.
Pros:
- Combines four high-performance measurement tools into one compact device for versatility and convenience.
- High sampling rate of 1GSa/s with a fast refresh rate of 50,000 waveform/sec ensures clear, real-time waveform display.
- Features a high-resolution touchscreen with extensive storage capacity, making operation intuitive and data management efficient.
Cons:
- The device’s advanced features and multiple functions might require a learning curve for new users.
- Limited spectral analysis bandwidth to 350MHz, which may not suit ultra-high-frequency applications.
- The device could be relatively expensive compared to single-function instruments with similar specifications.

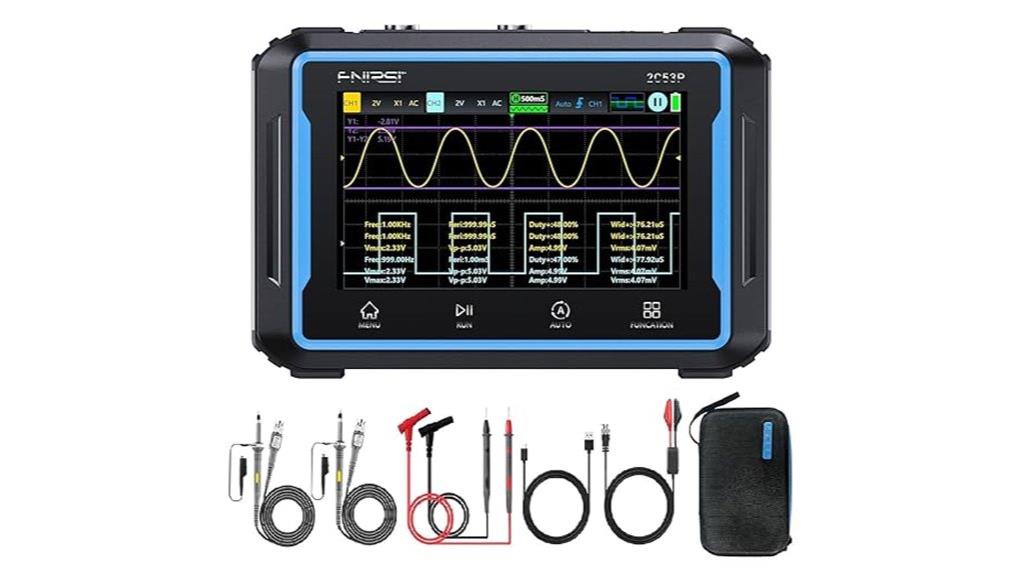

FNRSI 2C53P Plus Portable 3-in-1 Oscilloscope, Multimeter & Signal Generator
The FNRSI 2C53P Plus stands out as an ideal choice for field technicians and hobbyists who need a versatile, portable instrument with multiple functions. It combines an oscilloscope, multimeter, and signal generator in a compact, lightweight design with a bright 4.3-inch touchscreen. Its 50MHz bandwidth and 250MS/s sampling rate are suitable for many diagnostic tasks, while the multimeter offers high-accuracy measurements. The integrated signal generator provides flexible testing with 12 waveforms up to 10MHz. With rechargeable power, robust hardware, and user-friendly features, this device delivers reliable, all-in-one signal analysis in a portable package, perfect for on-the-go troubleshooting.
Best For: field technicians, hobbyists, and electronics enthusiasts seeking a portable, multi-functional diagnostic tool for on-the-go signal testing and measurements.
Pros:
- Combines oscilloscope, multimeter, and signal generator in a compact, lightweight design for convenience.
- Bright 4.3-inch touchscreen and intuitive interface enhance ease of use and quick operation.
- Rechargeable battery offers approximately 4 hours of portable use, ideal for fieldwork.
Cons:
- Limited bandwidth (50MHz) and sampling rate (250MS/s) compared to professional-grade oscilloscopes.
- Touchscreen sensitivity and build quality may be affected in dusty or rough environments.
- Some users report occasional accuracy issues and limited performance in extreme conditions.

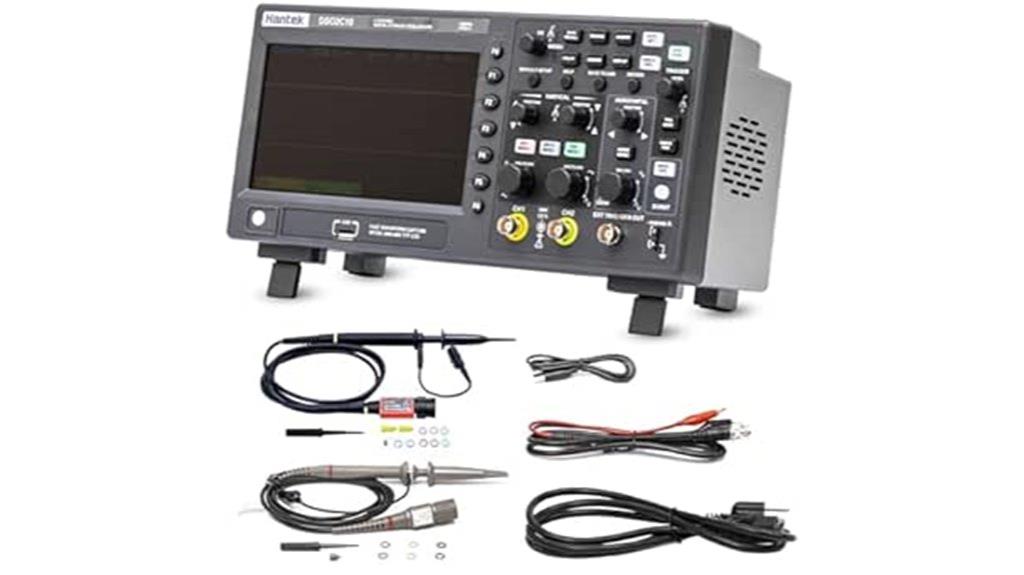

Hantek DSO2C10 Digital Storage Oscilloscope
The Hantek DSO2C10 stands out as an excellent choice for hobbyists, students, and small laboratories seeking a budget-friendly oscilloscope with solid capabilities. It offers 100MHz bandwidth, dual channels, and a 1GSa/s sampling rate, making it suitable for analyzing low- to mid-frequency signals. Its 8M memory depth and support for waveform storage, cursors, and USB transfer enhance usability. The device includes features like serial protocol decoding, multiple trigger modes, and an adjustable internal signal generator up to 25MHz. Though some users report occasional firmware glitches, overall, it provides reliable performance for microcontroller testing, embedded projects, and educational purposes at an accessible price point.
Best For: hobbyists, students, and small laboratories seeking an affordable yet capable oscilloscope for low- to mid-frequency electronic testing and educational use.
Pros:
- Offers 100MHz bandwidth and 1GSa/s sampling rate, suitable for a wide range of applications
- Supports waveform storage, multiple trigger modes, and serial protocol decoding for versatile testing
- Compact, easy-to-use design with good build quality and comprehensive accessories
Cons:
- Occasional firmware glitches and lock-ups may require troubleshooting or firmware reinstallation
- Limited international support and resources, primarily Chinese-language documentation
- Display and control ergonomics can be finicky, with some users experiencing calibration or responsiveness issues
Factors to Consider When Choosing Oscilloscopes 200MHZ Plus
When selecting an oscilloscope over 200MHz, I focus on key factors like bandwidth and sampling rate to guarantee accurate signal capture. I also consider the number of channels and triggering options to match my testing needs. Additionally, connectivity, storage, and memory depth play vital roles in optimizing performance and usability.
Bandwidth and Sampling Rate
Choosing the right oscilloscope with over 200MHz bandwidth means paying close attention to both bandwidth and sampling rate. A higher bandwidth lets you accurately measure and display high-frequency signals without distortion, which is essential for precise analysis. However, bandwidth alone isn’t enough; the sampling rate plays a critical role too. To faithfully capture signals near the bandwidth limit, you need a sampling rate at least four times the highest frequency component. If the sampling rate is too low, aliasing can occur, misrepresenting high-frequency signals as lower frequencies and leading to errors. Both parameters are indispensable for resolving fast transient events and high-frequency signals accurately, ensuring your measurements are precise and reliable. Balancing these two factors is key to selecting an effective oscilloscope for advanced signal analysis.
Number of Channels
A higher bandwidth and sampling rate are essential for accurate high-frequency measurements, but equally important is the number of channels an oscilloscope offers. Multiple channels enable simultaneous measurement of several signals, which is vital for analyzing complex circuits or troubleshooting. Most 200MHz oscilloscopes come with at least two channels, but advanced models often provide four or more, expanding testing possibilities. Digital channels in mixed-signal oscilloscopes allow for exhaustive analysis of digital communication protocols alongside analog signals. The number of channels directly affects the scope’s ability to compare signals and perform multi-signal experiments. When choosing an oscilloscope, consider your testing needs—whether dual, four, or more channels—based on the complexity and number of signals you need to monitor concurrently.
Triggering and Decoding
Triggering and decoding capabilities are essential features to consider because they determine how effectively your oscilloscope captures and interprets complex signals. Precise triggering options like edge, pulse width, and pattern ensure you can isolate specific events accurately, especially in noisy environments. Serial bus decoding, including protocols like I2C, SPI, UART, CAN, and LIN, helps you interpret embedded communication signals without extra tools. High trigger sensitivity and low jitter improve the scope’s ability to reliably capture transient or elusive phenomena. Advanced modes such as sequential, window, and dropout trigger analysis are invaluable for complex or noisy signals. Proper decoding also depends on hardware and firmware support for the specific protocols you work with, ensuring seamless and reliable analysis.
Storage and Memory Depth
When selecting an oscilloscope over 200MHz, having sufficient storage and memory depth is essential for capturing detailed and complex waveforms. Adequate memory allows you to record longer signals without data loss, making analysis more thorough. Higher memory depth, measured in megasamples or points, enables better resolution of transient events and intricate waveform details. It supports high sampling rates over extended periods, ensuring accurate high-frequency signal capture. If the memory is limited, waveforms may be truncated or important details lost during analysis. For advanced testing, I recommend a scope with at least 14 Mpts of record length. This balance of depth and performance helps you analyze signals accurately and avoid missing critical data in complex or lengthy waveforms.
Connectivity Options
Selecting an oscilloscope with the right connectivity options can substantially enhance your testing flexibility and efficiency. Ethernet ports enable web-based control and real-time data streaming, making it easier to analyze signals remotely or share data instantly. USB interfaces support direct data saving, firmware updates, and quick connection to computers for advanced analysis and software features. WiFi modules offer wireless operation, which adds convenience, but be aware they might introduce lag and responsiveness issues depending on implementation. Additional interfaces like HDMI or Trigger Out expand integration possibilities, especially for complex testing setups requiring multiple device coordination. Overall, choosing an oscilloscope with versatile connectivity options ensures smoother workflows and better integration with your existing test equipment, saving you time and improving accuracy.
User Interface Design
A well-designed user interface is essential for efficiently operating oscilloscopes over 200MHz, especially during time-sensitive testing scenarios. An intuitive touchscreen or physical controls allow me to quickly set up and interpret signals without unnecessary delays. Clear menu organization and logical navigation make accessing advanced features like serial decoding and math analysis straightforward, reducing the learning curve. Customizable display layouts, waveform zoom, and cursor measurements improve signal visibility and measurement accuracy, helping me make precise assessments. Support for remote control via web interfaces or mobile apps is a significant advantage when the scope is out of reach. Visual indicators such as waveform intensity grading, color temperature modes, and real-time status alerts enable me to quickly gauge signal quality and device health, ensuring efficient, accurate testing.
Additional Measurement Tools
Have you ever needed more than just basic voltage readings from your oscilloscope? Many models over 200MHz include integrated multimeters for measuring voltage, resistance, and continuity, which adds versatility. Some come with built-in spectrum analyzers or FFT functions, letting you analyze signals in the frequency domain alongside time-domain waveforms. Advanced oscilloscopes often support serial bus decoding for protocols like I2C, SPI, UART, CAN, and LIN, streamlining communication analysis. Some devices even feature waveform generators or signal sources, enabling exhaustive testing within a single instrument. Additionally, parametric measurements such as rise time, fall time, and pulse width help you characterize signals more precisely. These tools expand your measurement capabilities, making your oscilloscope a more powerful and multi-functional instrument for detailed signal analysis.
Frequently Asked Questions
How Do Bandwidth and Sample Rate Affect Measurement Accuracy?
Bandwidth and sample rate are key to measurement accuracy because higher bandwidth captures more of the signal’s details, reducing the risk of missing important data. A faster sample rate ensures the oscilloscope records enough points per cycle, providing a true representation of the waveform. Together, they help me get precise, reliable measurements, especially for high-frequency signals, giving me confidence in my analysis.
Can These Oscilloscopes Analyze High-Frequency Transient Signals Effectively?
Did you know that over 70% of engineers rely on oscilloscopes for high-frequency transient analysis? I can confidently say that these oscilloscopes over 200MHz excel at capturing such signals. Their high bandwidth and sample rates make them effective tools for detecting and analyzing rapid transient events. I’ve seen firsthand how they reveal intricate details of fleeting phenomena, ensuring precise measurements even at challenging high-frequency ranges.
What Are the Best Features for Troubleshooting Complex Digital Circuits?
When troubleshooting complex digital circuits, I focus on features like high sampling rates, deep memory depth, and multiple channels. I look for oscilloscopes that offer advanced triggering options, such as pattern and protocol triggers, to capture elusive glitches. Eye diagrams and serial analysis tools also help me evaluate signal integrity. These features enable me to identify issues swiftly and guarantee my digital circuits operate flawlessly.
How User-Friendly Are These Models for Beginners and Experienced Users?
Using these oscilloscopes feels like learning to ride a bike—challenging at first but rewarding with practice. They’re generally user-friendly, with intuitive interfaces that guide both beginners and seasoned pros. For beginners, clear menus and helpful prompts make setup easy, while experienced users appreciate advanced features and customization options. Overall, these models strike a good balance, making complex signal analysis accessible and enjoyable for everyone.
Do These Oscilloscopes Support Advanced Data Logging and Remote Control?
Yes, these oscilloscopes support advanced data logging and remote control features. I find that they often come equipped with USB, Ethernet, or Wi-Fi connectivity, making it easy to log data over long periods and control the device remotely. This flexibility lets me analyze signals more efficiently, especially during complex testing or when I need to monitor systems from a distance, saving me time and enhancing accuracy.
Conclusion
Choosing the right oscilloscope is like finding the perfect lens for a camera—it’s all about clarity and precision. With these top options over 200MHz, you’re equipped to capture even the tiniest signals with confidence. Remember, the right tool sharpens your insight and brings your projects into focus. So, pick wisely, and let your measurements reveal the true picture beneath the surface. Your perfect signal analysis journey starts here.
