If you’re looking for the best vector network analyzers for bench testing in 2025, I recommend considering devices like the NanoVNA-H4, a compact analyzer with wide frequency coverage and a touchscreen for easy operation. The portable analyzers with calibration kits and storage options are great for flexibility. Also, models covering 50 kHz–900 MHz offer reliable measurements. If you keep exploring, you’ll find detailed insights that can help you choose the perfect tool for your RF testing needs.
Key Takeaways
- Consider models offering wide frequency ranges up to 2.7 GHz for versatile bench testing applications.
- Prioritize analyzers with high dynamic range (80+ dB) for accurate S-parameter measurements.
- Look for devices with robust calibration options and stability for reliable long-term performance.
- Ensure compatibility with PC software and data export formats like Touchstone for detailed analysis.
- Choose lightweight, compact designs with comprehensive accessories suitable for both laboratory and field use.
AURSINC NanoVNA-H4 Vector Network Analyzer (V4.4, 9KHz-1.5GHz)
If you’re looking for a portable, budget-friendly VNA that doesn’t compromise on performance, the AURSINC NanoVNA-H4 is an excellent choice. It covers 9 kHz to 1.5 GHz, making it versatile for HF, VHF, and UHF bands. The 4-inch touchscreen provides intuitive control over S-parameters, SWR, phase, delay, and Smith charts. Its long-lasting 1950mAh battery supports field use, and it includes useful accessories like calibration kits and RF cables. With improved RF performance, high dynamic range, and compatibility with PC software, this device is perfect for antenna testing, tuning, and RF measurements both in the lab and on the go.
Best For: ham radio operators, electrical engineers, and antenna builders seeking a portable, affordable VNA with reliable performance across HF to UHF bands.
Pros:
- Compact and lightweight design with a 4-inch touchscreen for easy operation
- Wide frequency coverage from 9 kHz to 1.5 GHz suitable for various RF applications
- Long-lasting 1950mAh battery enabling field measurements and testing
Cons:
- Some touchscreen sensitivity issues may require physical adjustments or case modifications
- Limited compatibility with Mac OS and advanced features compared to high-end VNAs
- Firmware updates and troubleshooting can be technical, requiring familiarity with DfuSe_Demo and related tools
AURSINC NanoVNA-H4 Vector Network Analyzer with EVA Storage Bag
The AURSINC NanoVNA-H4 Vector Network Analyzer stands out as an ideal choice for hobbyists and professionals seeking a portable, easy-to-use testing tool. Its 4-inch touchscreen, V4.4 firmware, and measurement range up to 1.5GHz make it versatile for RF testing, antenna analysis, and S-parameter measurements. The device includes calibration kits, SMA cables, and a built-in 1950mAh battery for field use. It comes with a durable EVA storage bag that’s shockproof, waterproof, and dustproof, ensuring safe transport. Lightweight and compact, it’s perfect for indoor or careful outdoor applications, with user-friendly features that simplify complex RF tasks.
Best For: hobbyists, amateur radio operators, and electrical engineers seeking a portable, user-friendly VNA for RF testing and antenna analysis.
Pros:
- Compact and lightweight design with a 4-inch touchscreen for easy operation
- Supports measurement range up to 1.5GHz with reliable S-parameter analysis
- Comes with comprehensive accessories including calibration kits, SMA cables, and a durable EVA storage bag
Cons:
- Limited to indoor and careful outdoor use due to device delicacy and lack of specialized field case
- Requires manual rewiring for certain measurements like S12 and S22
- Some users find a learning curve with firmware updates and calibration procedures

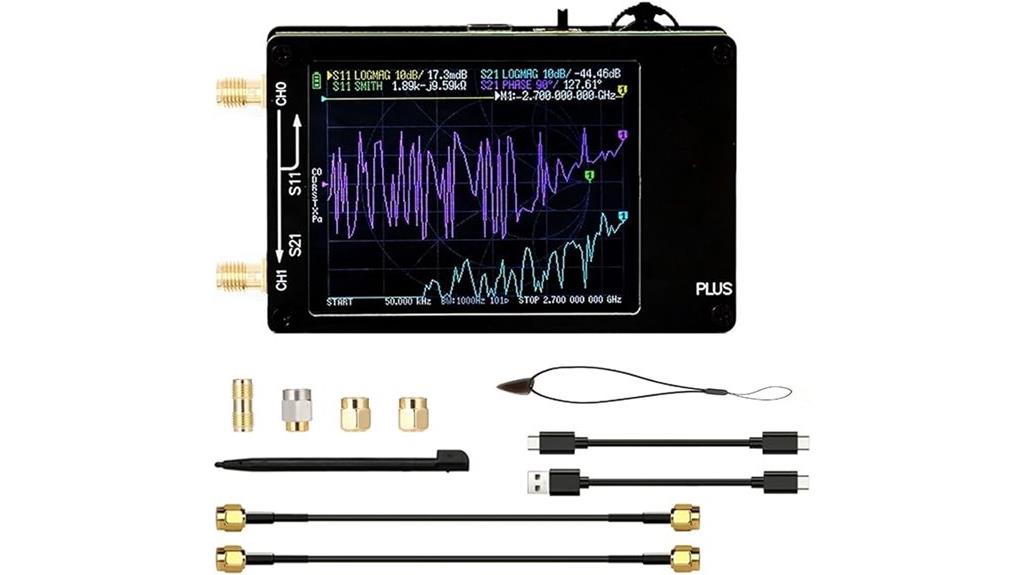

Portable Vector Network Analyzer with Touchscreen and Calibration Kit
A portable vector network analyzer with a touchscreen and calibration kit is an excellent choice for RF engineers and technicians who need accurate, on-the-go testing capabilities. It covers a broad frequency range from 50 kHz to 2.7 GHz, providing detailed measurements with dynamic ranges up to 80 dB. The device features a 2.8-inch touchscreen, making navigation straightforward, and includes essential calibration tools like LOAD, OPEN, and SHORT. Its compact design, built-in rechargeable battery, and support for MicroSD cards ensure mobility and extensive data storage. This analyzer is perfect for field testing, antenna analysis, and troubleshooting RF systems, combining professional performance with portability.
Best For: RF engineers, ham radio enthusiasts, and electronics technicians seeking portable, accurate vector network analysis in the field.
Pros:
- Wide frequency range from 50 kHz to 2.7 GHz with high dynamic range up to 80 dB for precise measurements.
- User-friendly 2.8-inch touchscreen interface with stylus for easy navigation and data visualization.
- Complete measurement kit including calibration tools, RF cables, and a large 32GB MicroSD card for extensive data storage.
Cons:
- Limited to 2.7 GHz maximum frequency, which may not cover some higher-frequency RF applications.
- Battery capacity of 1000mAh may require frequent recharging during extended field use.
- Size and weight, while portable, may still be less convenient compared to smaller, less feature-rich devices for ultra-compact applications.

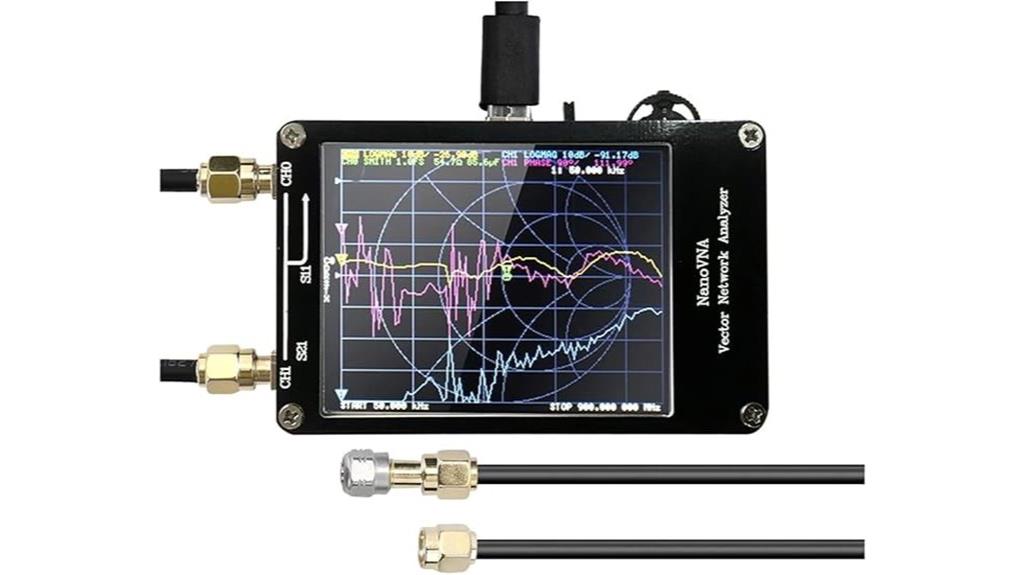

Vector Network Analyzer, 50KHz-900MHz, Nano VNA Tester
For those seeking a compact yet powerful tool for bench testing, the Nano VNA Tester covering 50KHz to 900MHz stands out. Its wide frequency range makes it ideal for shortwave, HF, VHF, and UHF antenna testing. The device features a high-efficiency digital design with a metal shield, reducing external interference for accurate readings. PC software supports Touchstone file exports, streamlining integration with radio design and simulation tools. Thanks to an improved frequency algorithm, it extends measurement capabilities up to 900MHz, providing over 70dB dynamic range in the lower bands. This compact VNA offers precise, stable measurements, making it perfect for both hobbyists and professionals.
Best For: hobbyists and professionals seeking a compact, high-precision VNA for antenna testing and RF measurements across a wide frequency spectrum from 50KHz to 900MHz.
Pros:
- Wide frequency range from 50KHz to 900MHz suitable for various RF applications
- Compact and portable design with high efficiency for bench testing
- Supports Touchstone file export for seamless integration with design and simulation tools
Cons:
- Limited to the 50KHz-900MHz range, not suitable for lower or higher frequencies outside this bandwidth
- May require familiarity with PC software for full functionality and data analysis
- External interference, while minimized, can still impact measurements if not properly shielded
Factors to Consider When Choosing Vector Network Analyzers Bench
When selecting a vector network analyzer for bench testing, I consider several key factors. Compatibility with my measurement range, accuracy, calibration features, and ease of use are essential. Additionally, I look at connectivity options and extra functionalities that can enhance my testing capabilities.
Measurement Range Compatibility
Choosing a vector network analyzer (VNA) with the right measurement range is crucial to guarantee accurate and reliable test results. First, verify the VNA covers the specific spectrum you work with, whether it’s 50 KHz to 2.7 GHz for RF testing or 9 KHz to 1.5 GHz for amateur radio. It’s essential that the device can measure relevant S-parameters like S11, S21, S12, and S22 within its frequency band for precise network characterization. Check if its harmonic extension and calibration capabilities support your target frequencies, especially for measurements beyond the base range. Additionally, verify compatibility with your antenna or cable types, including connectors and lengths, to avoid measurement errors. Finally, confirm that the VNA’s dynamic range and sensitivity suit your signal levels for dependable results.
Accuracy and Calibration Features
Ensuring accurate measurements with a vector network analyzer depends heavily on its calibration capabilities. I look for analyzers that offer thorough calibration options like open, short, load, and through standards, which are critical for precise results. Automated calibration routines streamline setup, reduce human error, and guarantee consistency across frequency ranges, while manual reconfiguration allows flexibility for specialized tests. Calibration stability over time and environmental factors directly impacts measurement reliability, so I prioritize devices with robust calibration procedures. High dynamic range and linearity further improve accuracy, especially in complex RF environments. Finally, I value frequent firmware updates that enhance calibration algorithms and address bugs, ensuring the analyzer maintains peak performance and long-term measurement precision.
Portability and Ease of Use
Ever wondered how to make RF testing more flexible and accessible? Portability plays a vital role here. Many top VNA models are lightweight, weighing under 4 ounces, making them ideal for fieldwork. Touchscreen interfaces with smartphone-like responsiveness simplify operation and cut down on training time. Built-in rechargeable batteries allow cordless use, so you’re not tied to external power sources, perfect for outdoor or remote testing. Compact designs that fit into small EVA storage bags make transportation effortless, enabling quick deployment in different locations. User-friendly features like intuitive menus and straightforward calibration procedures further enhance ease of use. All these factors combine to create a VNA that’s not only powerful but also convenient, ensuring you can perform accurate measurements anytime, anywhere, without hassle.
Connectivity and Software Support
When it comes to making the most of a VNA’s capabilities, connectivity options and software support are key considerations. I look for VNAs with versatile connectivity like USB, Type-C, or Ethernet to guarantee smooth data transfer and device control. It’s also important that the device supports software for Windows, Linux, or Android, making data analysis and visualization straightforward. Export options in standard formats like Touchstone (snp) files are essential for compatibility with simulation tools. Ease of firmware updates matters too—user-friendly tools like DfuSe_Demo simplify this process. Finally, reliable software features such as real-time measurement visualization, data logging, and remote control enhance usability and efficiency, making sure I get the most accurate and convenient testing experience.
Additional Functionality Options
Choosing a VNA with the right additional functionalities can considerably expand its capabilities and improve your testing efficiency. Features like TDR help detect faults in coaxial cables, making diagnostics quicker and more accurate. Advanced software integration allows for thorough data analysis, automated measurements, and easy export of Touchstone files for RF design work. Frequency extension options, such as harmonic support up to 1.5 GHz or higher, increase measurement versatility across different RF applications. Built-in data storage, like microSD cards up to 32GB, simplifies data logging and comparison over time. Enhanced calibration options, including automated procedures and standard kits, ensure precise measurements while reducing setup time. Overall, selecting a VNA with these functionalities ensures more reliable, flexible, and efficient testing in your bench setup.
Frequently Asked Questions
How Does Calibration Impact Measurement Accuracy in Vector Network Analyzers?
Calibration considerably impacts measurement accuracy in vector network analyzers because it corrects for systematic errors, ensuring your readings are precise. When I calibrate my VNA properly, I trust the data I get, whether I’m measuring return loss or impedance. Skipping or poorly performing calibration can lead to inaccurate results, which could mislead your analysis. Regular calibration is essential for reliable, high-quality measurements in any testing environment.
What Are the Key Differences Between Portable and Benchtop VNA Models?
Portable VNA models are compact, lightweight, and ideal for fieldwork or on-the-go measurements, offering convenience without sacrificing too much functionality. Benchtop VNAs, on the other hand, are larger, more robust, and provide higher accuracy, better dynamic range, and advanced features suited for detailed lab testing. I find that the choice depends on whether I need mobility or precision, with benchtops excelling in controlled, high-accuracy environments.
Which Features Are Essential for VNA Usability in Professional Testing Environments?
Think of a VNA like a trusty toolbox—you need the right tools to get the job done. For professional testing, essential features include high frequency range for versatile measurements, excellent dynamic range for accuracy, and user-friendly interfaces for efficiency. I also look for robust calibration options, fast sweep speeds, and reliable data export capabilities. These features guarantee precise, quick, and seamless testing in demanding environments.
How Does Frequency Range Influence VNA Performance for Specific Applications?
Frequency range is essential because it determines a VNA’s ability to accurately measure specific signals. If I need to test high-frequency components, a wide range ensures precise results at those elevated frequencies. Conversely, for lower-frequency work, a narrower range might suffice, offering better sensitivity and affordability. So, I always match the VNA’s frequency capabilities to my application’s requirements, guaranteeing reliable, accurate measurements every time.
What Maintenance Practices Extend the Lifespan of a Vector Network Analyzer?
To extend my VNA’s lifespan, I make sure to regularly calibrate it and keep it clean from dust and debris. I also avoid exposing it to extreme temperatures and handle it gently during setup and transport. Additionally, I follow the manufacturer’s maintenance schedule and use proper connectors to prevent damage. These practices help *guarantee* my VNA remains accurate and reliable over time.
Conclusion
Choosing the right vector network analyzer is like selecting the perfect compass for a voyage—each option guiding your measurements with precision and confidence. Whether you prefer compact, feature-rich, or versatile models, the best tool depends on your specific needs. Remember, a great VNA is your trusted navigator in the intricate waters of RF testing, turning complex signals into clear, actionable insights. Set sail with confidence—your ideal analyzer awaits to chart your course.
