If you’re looking for the best HBA cards for your NAS in 2025, I recommend considering models like the LSI 9300-16i, Broadcom PCIe SAS/SATA, and the 9400-16i for top speeds and reliability. These cards support numerous drives, high transfer rates, and broad OS compatibility. They’re ideal for large-scale storage. If you’re enthusiastic to find the perfect fit for your setup, stay tuned for more detailed insights and selection tips.
Key Takeaways
- Prioritize HBA cards supporting multiple protocols (SAS, SATA, NVMe) for versatile NAS compatibility and future scalability.
- Look for models with high port counts (8-16) and fast transfer speeds (up to 12Gbps) to handle large storage arrays efficiently.
- Ensure compatibility with your operating system (Windows, Linux, FreeBSD, TrueNAS) and support for enterprise-grade firmware updates.
- Consider physical form factor, cooling solutions, and PCIe interface version (3.0 or 4.0) to match your NAS chassis and performance needs.
- Opt for reputable brands offering reliable support, comprehensive documentation, and firmware flashing options to maximize performance and longevity.

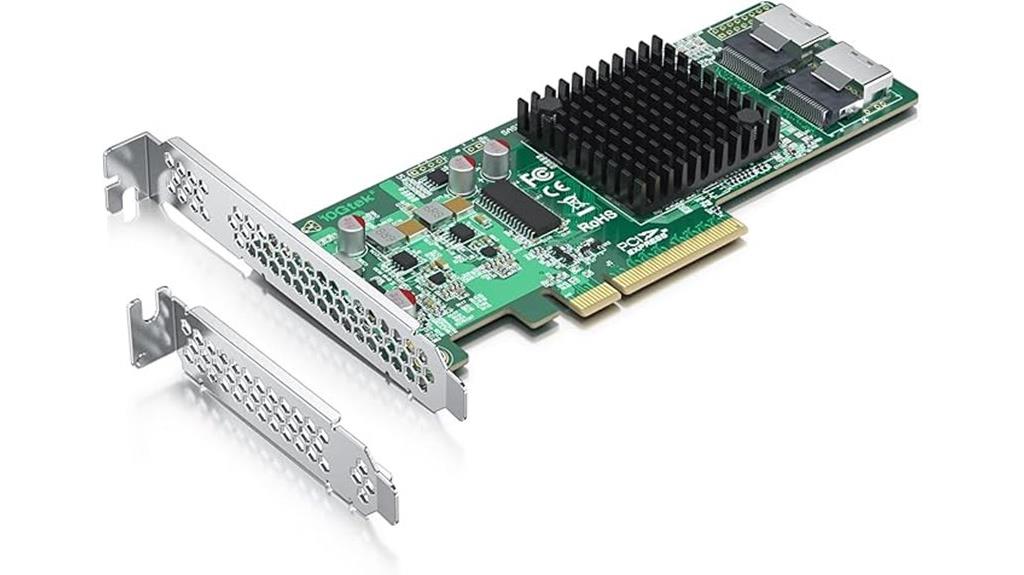

Internal PCI Express SAS/SATA HBA RAID Controller Card
If you’re building a budget-friendly NAS or home server, the Internal PCI Express SAS/SATA HBA RAID Controller Card is an excellent choice. It features a SAS2008 chip supporting 6Gb/s link rates, compatible with SAS 2.0 standards, and supports connecting up to 256 SAS and SATA devices via two Mini SAS SFF-8087 ports. Designed for low-end storage setups, it handles 4-8 HDDs or SSDs efficiently. Operating at 12 volts and with a compact size, it’s compatible with Windows, Linux, and popular NAS systems like TrueNAS, Unraid, and Proxmox. Firmware flashing options and support for NVMe SSD caching make it versatile for various configurations.
Best For: budget-conscious home NAS builders and small server enthusiasts seeking reliable internal storage expansion.
Pros:
- Supports up to 256 SAS/SATA devices with two Mini SAS ports for flexible connectivity
- Compatible with Windows, Linux, and popular NAS systems like TrueNAS, Unraid, and Proxmox out of the box
- Cost-effective solution suitable for low-end storage setups, with firmware flashing options for IT mode
Cons:
- Limited performance with PCIe 2.0 x4 bus may bottleneck high-speed SSDs
- Some units may arrive with faulty ports or firmware issues requiring troubleshooting or flashing
- Additional cables (e.g., SAS to SATA breakout) are needed and can add to overall cost

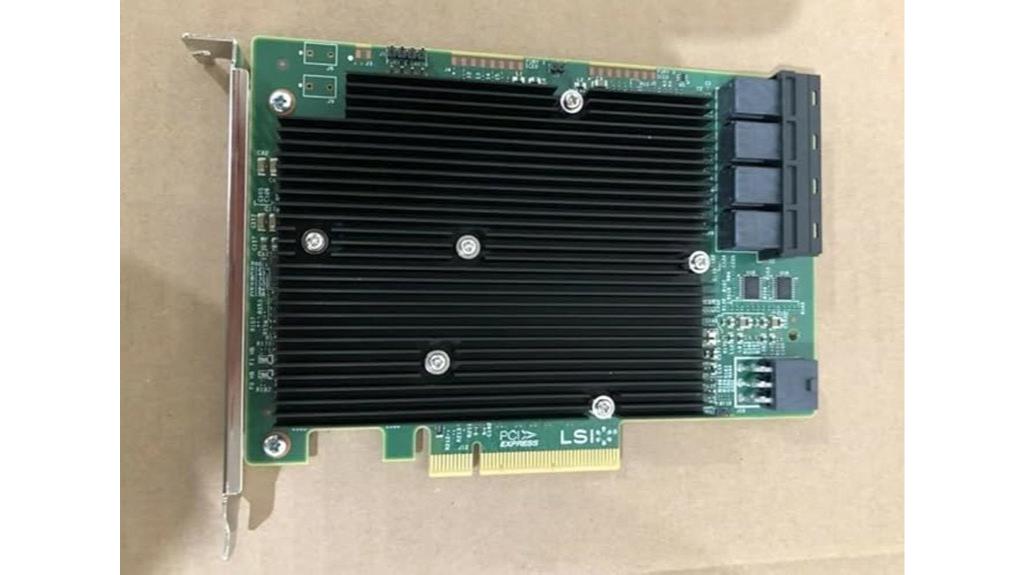

LSI 9300-16i 16-Port SAS Controller HBA Card
Looking for a high-capacity HBA card that can handle expanding your NAS server with multiple drives? The LSI 9300-16i offers 16 ports and 12Gb/s SAS throughput, making it ideal for large storage setups. It supports direct drive access in P16 IT mode, which is perfect for ZFS TrueNAS and unRAID systems. While it’s easy to install and highly compatible, you may need to update its firmware for peak performance. The card runs hot, so good airflow or cooling modifications are recommended. Overall, it’s a reliable choice for expanding storage capacity, with positive reviews highlighting speed, expandability, and straightforward operation.
Best For: users seeking a high-capacity, high-speed SAS controller for expanding large NAS or storage arrays with reliable direct drive access.
Pros:
- Supports 16 drives with 12Gb/s SAS throughput for high-performance data transfer
- Compatible with ZFS TrueNAS, unRAID, and various operating systems for versatile use
- Easy installation with positive customer feedback on speed and expandability
Cons:
- May arrive with outdated firmware requiring manual updates for optimal performance
- Runs hot; needs good airflow or cooling modifications to prevent overheating
- Some units may have recognition or compatibility issues depending on motherboard or system configuration

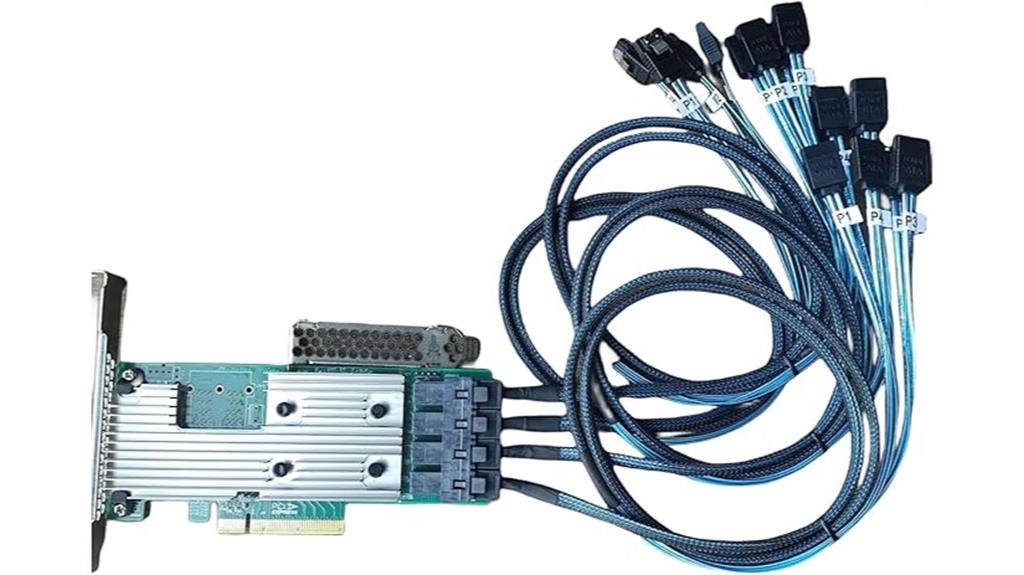

SAS9305-16i SATA SAS 16 Port HBA RAID Controller Card
The SAS9305-16i SATA SAS 16 Port HBA RAID Controller Card is an excellent choice for enterprise users who need high-density storage solutions with maximum flexibility. It features 16 internal 12Gb/s SATA+SAS ports and four additional small SAS HD connectors, supporting up to 1024 devices. With PCIe 3.0 x8 interface and support for SAS link rates up to 12Gb/s, it guarantees fast, dependable data transfer. The card comes with both high and low brackets and four SAS SFF-8643 cables, making installation straightforward. Its IT-Mode operation offers versatile, software-defined management, making it ideal for demanding NAS environments.
Best For: enterprise IT professionals and data centers seeking high-capacity, fast, and reliable storage solutions with flexible device management.
Pros:
- Supports up to 1024 devices, ideal for large-scale storage environments
- High-speed data transfer with SAS link rates up to 12Gb/s and PCIe 3.0 x8 interface
- Comes with both high and low brackets plus four SAS cables for easy installation
Cons:
- May require technical expertise for optimal configuration and management
- Physical size and port density could be overkill for small or home use
- Limited compatibility with non-enterprise or legacy hardware systems

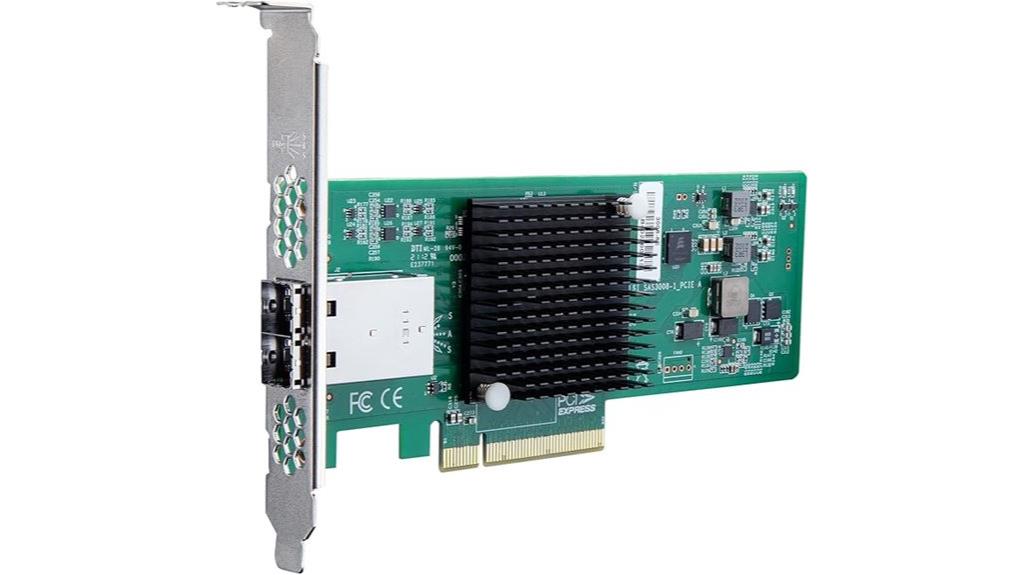

Broadcom PCIe SAS/SATA HBA Card – 2X Mini SAS Ports, Same as LSI 9300-8E
For those building high-performance NAS servers in 2025, the Broadcom PCIe SAS/SATA HBA Card with 2 Mini SAS ports, identical to the LSI 9300-8E, stands out as a reliable choice. It features a premium SAS 3008 controller supporting PCIe 3.0 and 12Gb/s SAS transfer rates, ensuring fast data throughput. With two Mini SAS SFF-8644 ports, it offers robust external connectivity compatible with Windows, Linux, Solaris, and VMware. The card comes with both low-profile and full-height brackets, plus 24/7 customer support, a 3-year warranty, and lifetime technical assistance, making it ideal for demanding enterprise storage setups.
Best For: high-performance enterprise storage solutions and NAS server builders requiring reliable, high-speed external SAS/SATA connectivity.
Pros:
- Supports PCIe 3.0 with 12Gb/s SAS transfer rates for fast data throughput
- Compatible with multiple operating systems including Windows, Linux, Solaris, and VMware
- Comes with both low-profile and full-height brackets for versatile installation
Cons:
- Requires a PCIe x8 slot, which may not be available in all systems
- External port connections need compatible cables and enclosures for optimal use
- May require driver installation and configuration for certain OS environments

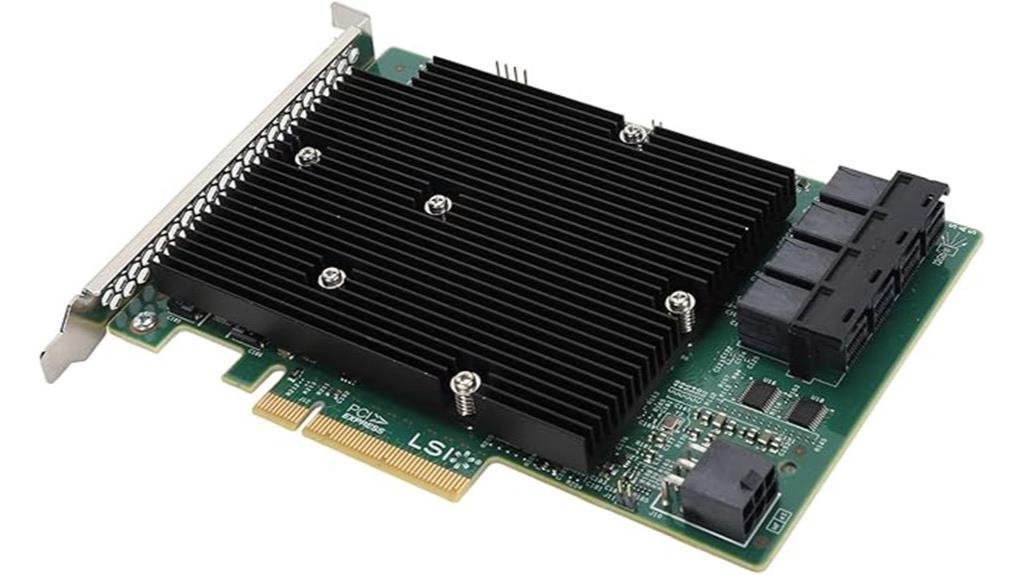

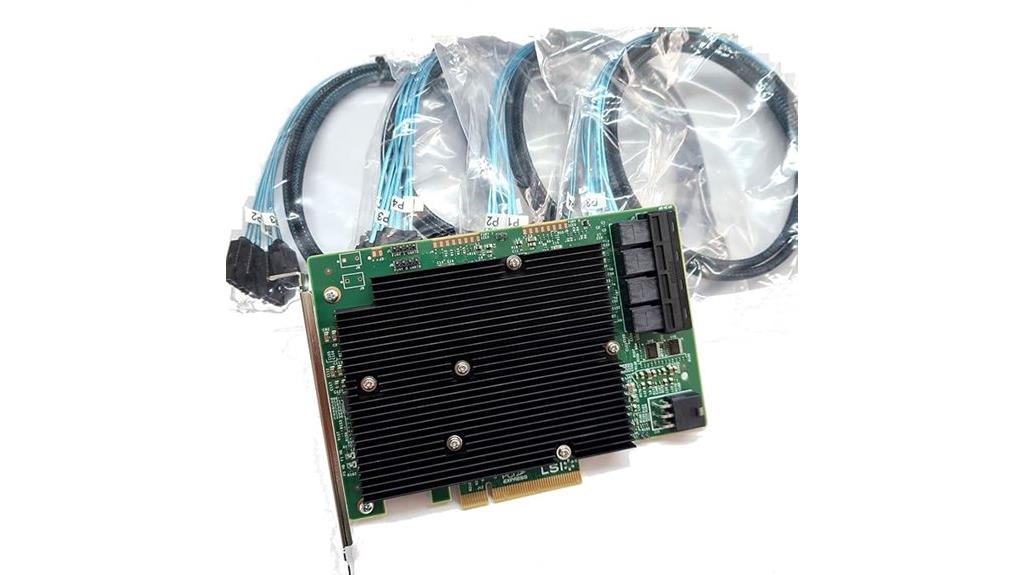

LSI 9300-16i SAS-3 PCIe HBA with 16 Ports
If you’re building a high-performance NAS server, the LSI 9300-16i SAS-3 PCIe HBA with 16 ports stands out as a top choice due to its impressive 12Gb/s SAS connectivity and extensive port count. This controller supports versatile configurations like RAID and JBOD, making it suitable for large storage arrays and demanding workloads. It’s compatible with Linux, BSD, and popular NAS solutions like TrueNAS and UnRAID. While it offers reliable performance and easy setup, beware of its high operating temperatures, which require active cooling. Overall, it’s a cost-effective, robust option for expanding storage capacity in professional or custom-built systems.
Best For: professionals and enthusiasts building high-performance NAS servers or large storage arrays requiring reliable SAS connectivity and extensive port options.
Pros:
- Supports 16 ports with 12Gb/s SAS and SATA connections for high-speed data transfer
- Compatible with Linux, BSD, TrueNAS, and UnRAID for versatile deployment
- Provides flexible configurations like RAID and JBOD for tailored storage solutions
Cons:
- Runs very hot and requires active cooling solutions to prevent thermal issues
- Installation may need careful handling and additional airflow considerations
- Limited to PCIe x8 slot, which might restrict compatibility with some systems
LSI HBA Raid Controller Card (LSI SAS 9300 16I, 12Gbps, 16 SATA/SAS Ports)
Designed for high-performance enterprise storage, the LSI SAS 9300 16I HBA card offers 16 dedicated 12Gb/s SATA/SAS ports, making it ideal for NAS server setups that demand fast data transfer and large device connectivity. It features PCIe 3.0 with an 8X bus, supporting high-bandwidth applications. Compatible with Windows, Linux, VMware, and FreeBSD, it guarantees broad system support. With the capacity to connect up to 1024 devices, it’s perfect for demanding environments. Its premium PCB materials certify reliability and stability, making it a top choice for enterprise storage solutions needing both speed and expandability.
Best For: IT professionals and enterprise environments seeking high-speed, reliable storage solutions with broad system compatibility and extensive device connectivity.
Pros:
- Supports 16 high-speed 12Gb/s SAS/SATA ports for large device connectivity and fast data transfer.
- Compatible with multiple operating systems including Windows, Linux, VMware, and FreeBSD.
- Equipped with PCIe 3.0 x8 interface, ensuring high bandwidth for demanding applications.
Cons:
- May require technical expertise for installation and configuration in complex server setups.
- Limited to internal storage connections, with external connectivity depending on additional hardware.
- Higher cost may be a consideration for small-scale or budget-conscious users.
LSI SAS 9300-16I HBA Card, 16 Port 12Gbps SAS Controller
Are you looking for a high-capacity HBA card that can handle extensive storage demands with ease? The LSI SAS 9300-16I offers 16 ports supporting 12Gbps SAS and SATA speeds, making it ideal for demanding NAS setups. It’s compatible with Windows, Linux, VMware, and FreeBSD, ensuring broad integration. With PCIe 3.0 and PCIe 8X, it delivers fast signaling and bandwidth, supporting up to 1024 devices. Built with high-quality PCB material, it’s durable and reliable, perfect for enterprise environments. Its plug-and-play design simplifies installation, providing high throughput and dependable connectivity for large-scale storage expansion.
Best For: IT professionals and enterprise environments needing high-capacity, multi-device storage connectivity with reliable high-speed data transfer.
Pros:
- Supports 16 ports with 12Gbps SAS/SATA speeds for extensive storage connectivity
- Compatible with multiple operating systems including Windows, Linux, VMware, and FreeBSD
- Durable design with high-quality PCB material and plug-and-play installation for easy deployment
Cons:
- Less energy-efficient compared to newer models, leading to higher operational costs
- Requires active cooling, which may add to system complexity and noise
- Higher price point reflecting enterprise-grade performance and capacity
LSI SAS 9300 16I HBA Card
The LSI SAS 9300 16I HBA Card stands out for its impressive 16-port SAS/SATA connectivity, making it ideal for those building large-scale NAS servers or expanding storage capacity. With a 12Gbps data transfer rate, it supports high-bandwidth applications and connects up to 1024 devices, offering unmatched scalability. Its PCIe 3.0 x8 interface ensures fast data flow, while compatibility with Linux, Windows, VMware, and FreeBSD broadens its application range. Designed with premium components, it provides reliability in demanding environments. Despite some user detection issues, its robust features make it a top choice for enterprise storage solutions focused on performance and expansion.
Best For: enterprise IT professionals and data centers seeking high-performance, scalable storage solutions with extensive SAS/SATA connectivity.
Pros:
- Supports up to 1024 devices with 16 ports for large-scale storage expansion
- High data transfer rate of 12Gbps suitable for bandwidth-intensive applications
- Compatible with multiple operating systems including Linux, Windows, VMware, and FreeBSD
Cons:
- Reports of BIOS detection issues requiring troubleshooting and configuration adjustments
- Limited official support due to Broadcom acquisition of LSI products
- Slightly bulky design and weight may pose installation challenges in some server setups

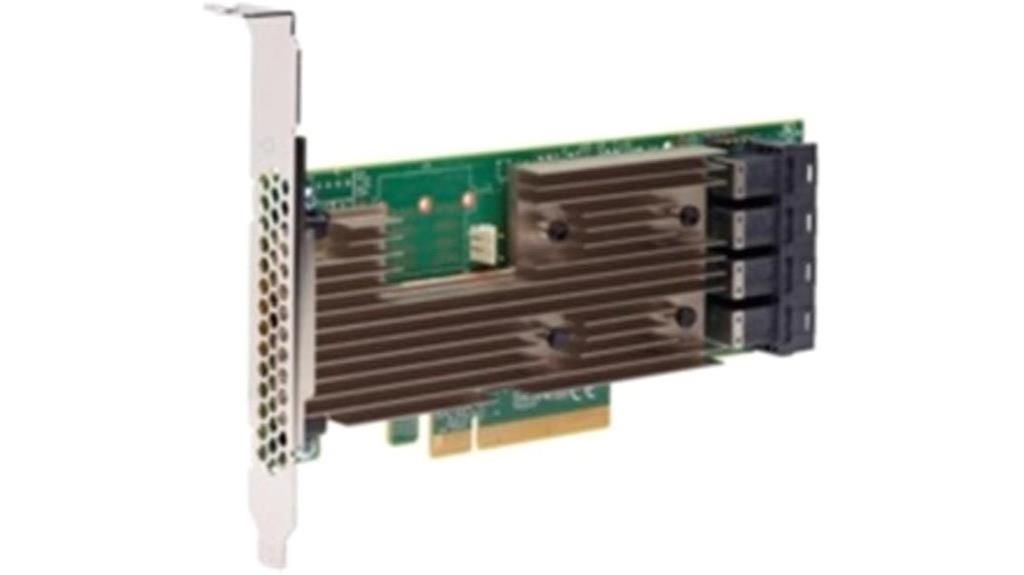

Lsi Logic 16-Port SAS PCIe Host Bus Adapter
If you’re building a high-performance NAS server and need reliable, scalable connectivity, the Lsi Logic 16-Port SAS PCIe Host Bus Adapter is an excellent choice. It features the 9305-16i controller, supporting up to 16 drives through four miniSAS SFF-8643 ports. Designed to fit into a PCIe x8 3.0 slot, it delivers a maximum data transfer rate of 12 Gbps. The adapter comes with IT mode firmware installed, ensuring ideal performance for enterprise applications. Plus, it includes both full and low profile brackets, making it versatile for different server builds. This HBA offers robust, scalable connectivity with high-speed data transfer capabilities.
Best For: IT professionals and enterprise system builders seeking a reliable, high-speed SAS/HBA solution for scalable storage connectivity.
Pros:
- Supports up to 16 drives with four miniSAS SFF-8643 ports for extensive scalability
- Max data transfer rate of 12 Gbps ensures high-performance data transfer
- Comes with IT mode firmware for optimal enterprise-level performance
Cons:
- Requires a PCIe x8 3.0 slot, which may not be available on all systems
- May need additional configuration for optimal use in certain setups
- Bulk installation might require compatible brackets or additional accessories
HBA Card SAS Controller PCI-E 2.0 8 Port Host Bus Adapter
For anyone building a high-performance NAS or server setup, the HBA Card SAS Controller PCI-E 2.0 8 Port Host Bus Adapter stands out because of its reliable 6Gbps transfer speed and support for multiple SAS and SATA drives. Its LSI SAS2008 chipset guarantees stable performance across eight ports, making it ideal for demanding storage environments. The card supports PCIe 2.0 x8 connections, maximizing bandwidth. Its firmware, P20 in IT mode, enhances compatibility with ZFS, FreeNAS, and unRAID. Plus, it comes with both high and low support brackets, along with SAS to SATA cables, making it a versatile choice for expanding your storage capacity efficiently.
Best For: IT professionals and enthusiasts building high-performance NAS or server systems requiring reliable multi-drive connectivity and compatibility with popular storage management software.
Pros:
- Supports 8 SAS/SATA drives simultaneously with 6Gbps transfer speeds for efficient data handling
- Compatible with PCIe 2.0 x8 slots, ensuring maximum bandwidth utilization
- Firmware in IT mode (P20) enhances compatibility with ZFS, FreeNAS, and unRAID for flexible storage configurations
Cons:
- Limited to PCIe 2.0 bandwidth, which may be a bottleneck in extremely high-speed environments
- Requires technical knowledge for firmware updates and configuration in IT mode
- No included support for hardware RAID, relying on software-based solutions for redundancy

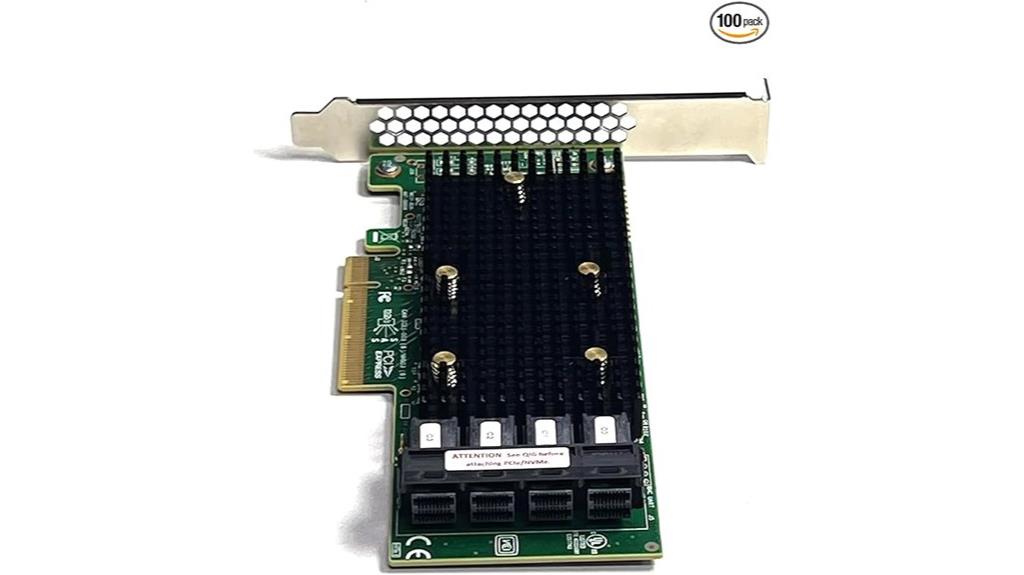

9400-16i SATA/SAS HBA Controller 12 Gbps PCIe 16 Port Support NVME HDD
Designed for high-performance storage environments, the 9400-16i SATA/SAS HBA Controller offers 16 ports supporting 12 Gbps SAS3 and 6 Gbps SATA III, making it an excellent choice for anyone needing reliable, multi-protocol expansion. It utilizes a PCIe 3.0 x8 interface, ensuring maximum bandwidth for swift data transfers. This controller is tri-mode compatible with SAS, SATA, and NVMe (with proper firmware), and features IT mode firmware suited for software-defined storage, ZFS, and NAS setups. Its low-profile and full-height options make installation flexible for various server chassis. It’s ideal for data centers demanding high throughput and multi-protocol support.
Best For: high-performance data centers, enterprise servers, and storage professionals needing reliable multi-protocol high-throughput expansion.
Pros:
- Supports 12 Gbps SAS3 and 6 Gbps SATA III for fast data transfer rates
- Tri-mode compatibility with SAS, SATA, and NVMe (with proper firmware) for versatile storage configurations
- PCIe 3.0 x8 interface maximizes bandwidth and ensures efficient data handling
Cons:
- Requires proper firmware for NVMe support, which may involve additional setup steps
- May be overkill for small-scale or less demanding storage needs
- Limited to PCIe 3.0 x8 interface, which might bottleneck in some extremely high-speed environments
ipolex PCIe SAS/SATA HBA RAID Controller Card (SAS2008, PCIe 2.0 x8, Dual Mini SAS)
The ipolex PCIe SAS/SATA HBA RAID Controller Card stands out as an excellent choice for high-density storage environments that demand reliable, enterprise-grade data transfer. Equipped with the SAS 2008 chip, it supports RAID 0/1/1E and non-RAID modes, ensuring flexible data management. Its PCIe 2.0 x8 interface delivers stable 6Gb/s transfer rates, while dual Mini SAS connectors enable connection to up to 256 SAS/SATA devices. Designed for durability, it features industrial-grade components and passive cooling. Compatible with a wide range of operating systems, this card is ideal for NAS, servers, and data centers seeking scalable, high-performance storage solutions.
Best For: high-density storage environments, enterprise servers, and data centers requiring reliable, scalable SAS/SATA connectivity and enterprise-grade data transfer performance.
Pros:
- Supports RAID 0/1/1E and non-RAID modes for flexible data management
- Connects up to 256 SAS/SATA devices via dual Mini SAS connectors
- Durable construction with industrial-grade components and passive cooling
Cons:
- Hot swapping is not supported, limiting quick drive replacements
- Requires PCIe 2.0 x8 slot, which may restrict compatibility with older or lower-bandwidth systems
- May need additional configuration or drivers for optimal performance on certain operating systems
Factors to Consider When Choosing HBA Cards for NAS Servers
When selecting an HBA card for your NAS server, I consider key factors like system compatibility and the number of ports needed to match my storage demands. I also think about transfer speeds to guarantee quick data access and check physical size constraints for proper fit. Additionally, cooling and ventilation are vital to keep the card running smoothly over time.
Compatibility With Systems
Choosing an HBA card that’s compatible with your NAS system is essential to guarantee smooth operation and reliable performance. First, verify the card supports your NAS’s operating system, whether it’s Linux, Windows, or BSD-based like TrueNAS or FreeNAS. Compatibility with firmware and drivers is critical; mismatched versions can cause detection or stability issues. Also, check if the card adheres to industry standards like SAS 3.0 or SATA III, ensuring proper communication with your drives. The PCIe interface and lane configuration should match your motherboard’s slots and bandwidth capabilities, such as PCIe 3.0 x8. Finally, consider whether the card supports features like IT mode for direct drive access or RAID modes, which align with your storage management needs.
Number of Ports Needed
Evaluating your storage needs carefully is essential because the number of ports on your HBA card directly impacts your system’s expandability and performance. You should determine the maximum number of drives you plan to connect now and in the future, ensuring the HBA has enough ports. Consider whether you need external drives, internal drives, or a mix, as some cards support both, affecting total port count. Keep in mind that higher port counts often require more PCIe lanes and greater power supply capacity, which can influence system stability and compatibility. If your setup involves direct-attached drives or combining drives with expansion chassis, your port requirements will differ. Additionally, if you plan to use RAID or JBOD configurations, make sure the total port count aligns with your storage architecture needs.
Transfer Speed Requirements
Are your drives and network capable of handling the data speeds your HBA supports? If not, you risk bottlenecks that slow down your entire system. It’s essential to match your HBA’s maximum transfer rate with your drives’ capabilities, whether that’s SATA III (6Gbps), SAS 12Gbps, or higher. Also, consider the PCIe version—3.0 or 4.0—since newer versions provide increased bandwidth, enabling faster data throughput. Verify that your HBA supports the link rate of your SSDs or HDDs to maximize performance. Additionally, check if the firmware and hardware support high-speed features like NVMe or multi-lane configurations. Ensuring these aspects align with your system’s interface guarantees consistent, high-speed data transfer and prevents performance bottlenecks down the line.
Physical Size Constraints
When selecting an HBA card for your NAS server, it’s crucial to take into account its physical size to guarantee it fits seamlessly into your system. Start by checking whether the card’s form factor—full-height or low-profile—matches your chassis’s space. Measure the available PCIe slot length and clearance to ensure the card can be installed without blocking other components. Consider the overall dimensions, including heatsinks and connectors, to prevent interference with nearby hardware. If your setup is compact or rack-mounted, verify that the mounting brackets are compatible with your case. Also, keep in mind that higher-performance cards may generate more heat, which could influence installation space and airflow. Proper sizing ensures a smooth fit and optimal operation.
Cooling and Ventilation
Effective cooling and ventilation are critical factors when choosing HBA cards for your NAS server, as they directly impact hardware performance and longevity. Many HBA cards tend to run hot, often exceeding 50°C, which can cause thermal throttling or hardware failure if not properly cooled. Installing heatsinks or adding extra fans helps prevent overheating during extended high-load operations. Good airflow within the NAS enclosure is essential, with strategic placement of intake and exhaust fans ensuring *ideal* temperatures. Using well-ventilated or dedicated server cases reduces heat buildup that could impair data transfer stability and hardware lifespan. Regularly monitoring temperature levels with sensors or software tools helps verify that cooling solutions are effective and that the HBA card remains within safe thermal limits.
Firmware and Software Support
Choosing an HBA card with strong firmware and software support is essential to guarantee your NAS server runs smoothly over time. You want a card that supports regular firmware updates with a reliable mechanism, ensuring compatibility with evolving NAS software like TrueNAS or Unraid. Flashed into IT mode, the firmware offers better compatibility and performance. It’s also important that the manufacturer provides frequent updates to patch security issues and improve stability. Look for cards that support cross-platform management tools and have a robust driver ecosystem compatible with your NAS OS. Additionally, detailed documentation, clear instructions for firmware flashing, and active support channels are invaluable. These features help troubleshoot firmware issues quickly, ensuring your system stays secure and reliable long-term.
Budget Considerations
Budget considerations are a crucial factor when selecting an HBA card for your NAS server, as costs can vary considerably. Entry-level models start around $50, while high-end enterprise options can exceed $300. Cheaper cards often have fewer ports, slower transfer speeds, or limited features, which can impact storage performance and future expandability. Spending a bit more on a higher-quality HBA can improve compatibility, firmware support, and scalability, making it worth the investment. Remember to include additional costs like cables, brackets, and cooling solutions when planning your budget. Striking a balance between cost and performance is key; choosing an HBA that fits your budget while meeting your storage needs ensures a reliable and efficient NAS setup.
Frequently Asked Questions
How Do HBA Cards Impact Overall NAS Server Data Transfer Speeds?
HBA cards markedly impact NAS server data transfer speeds by providing direct, high-speed connections between drives and the server. When I choose a high-quality HBA, I notice faster data access and smoother file transfers. They reduce bottlenecks and improve overall performance, especially with multiple drives. Upgrading my HBA card has always boosted my NAS speeds, making data handling more efficient and reliable.
Are HBA Cards Compatible With All NAS Operating Systems?
In my experience, HBA cards are generally compatible with most NAS operating systems, but it’s not universal. For example, when I set up a Synology NAS, I checked compatibility first—most HBA cards worked seamlessly. However, with certain custom or less common OSes, you might need specific drivers or firmware updates. Always verify the HBA card’s compatibility with your NAS OS before purchasing to avoid any surprises.
Can HBA Cards Be Upgraded Without Replacing the Entire NAS Server?
Yes, you can upgrade HBA cards without replacing your entire NAS server. I’ve done it myself, and it’s usually straightforward if your server supports hot-swapping or has accessible PCIe slots. Just ensure the new HBA card is compatible with your NAS’s motherboard and operating system. Upgrading can considerably boost performance or add new features, making it a cost-effective way to extend your server’s lifespan.
What Are the Power Consumption Considerations for High-Port HBA Cards?
Power consumption for high-port HBA cards isn’t exactly a walk in the park; it’s more like a marathon. These cards can sip a significant amount of electricity, especially with multiple ports humming along. I always keep an eye on their TDP ratings and make certain my power supply can handle the load. After all, an energy-hungry HBA might save me time but will definitely burn a hole in my wallet.
How Do Hardware RAID Features Differ Across Various HBA Models?
Hardware RAID features vary across HBA models, and I find that some offer built-in RAID capabilities, allowing me to manage disks directly without needing a dedicated controller. Others act purely as pass-through devices, leaving RAID management to software. When choosing, I consider whether I want hardware-level redundancy and performance benefits or prefer flexibility with software solutions, depending on my specific storage needs.
Conclusion
Ultimately, choosing the right HBA card isn’t just about speed or ports — it’s about matching your needs with reliability. I’ve found that investing in well-reviewed, future-proof models guarantees smoother performance and fewer headaches down the line. Think of it like planting a sturdy seed; the right card grows into a robust, dependable NAS. Trust me, a thoughtful choice now saves you time and trouble later, proving that quality truly makes all the difference.
