If you’re after the best PCIe Gen4 NVMe RAID cards for top storage performance in 2025, I recommend looking into options like the ASUS Hyper M.2 X16 and HighPoint SSD7580C, which offer blazing speeds and huge capacities. Other great choices include JEYI, Cablecc, SABRENT, and GLOTRENDS adapters, all supporting multiple NVMe drives with advanced cooling. Keep in mind compatibility and cooling needs—stick around to learn how to optimize your setup for maximum performance.
Key Takeaways
- Prioritize RAID cards supporting PCIe 4.0 x16 interfaces for maximum bandwidth and high-speed data transfer.
- Look for models with robust cooling solutions like active fans and heatsinks to ensure thermal stability during intensive workloads.
- Verify motherboard BIOS/UEFI compatibility and bifurcation support to enable multi-drive RAID configurations effectively.
- Consider enterprise-grade options such as HighPoint SSD7580C and RIITOP adapters for high capacity and sustained performance.
- Ensure system components, including CPU and SSDs, support PCIe 4.0 to fully leverage the cards’ maximum throughput in 2025.

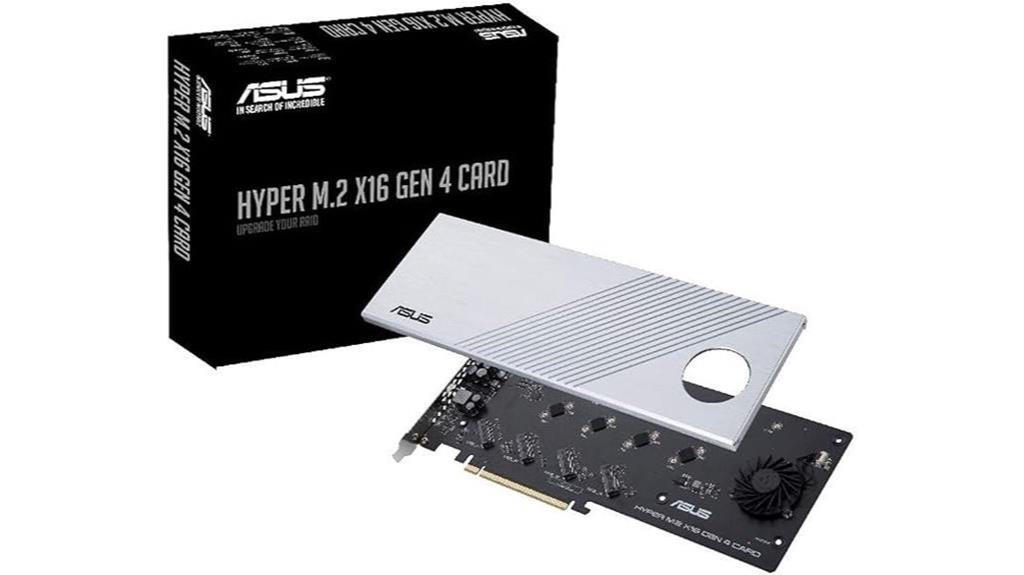

ASUS Hyper M.2 X16 PCIe 4.0 Expansion Card with NVMe Support
If you’re looking to maximize storage performance for high-end workstations or gaming setups, the ASUS Hyper M.2 X16 PCIe 4.0 Expansion Card is an excellent choice. It supports four NVMe M.2 drives in various sizes, including 2242, 2260, 2280, and 22110, with a maximum bandwidth of 256 Gbps thanks to PCIe 4.0. Its PCIe 4.0 x16 interface, combined with a server-grade low-loss PCB, guarantees fast and reliable connections. The card is compatible with AMD Ryzen sTRX40, AM4 sockets, and Intel VROC NVMe RAID. Plus, it features a stylish heatsink and blower fan to prevent throttling during intensive operations.
Best For: high-end workstations and gaming setups that require maximum storage performance and reliable NVMe expansion.
Pros:
- Supports four NVMe M.2 drives with various sizes (2242/2260/2280/22110) for versatile storage options.
- Utilizes PCIe 4.0 x16 interface with a high bandwidth of 256 Gbps, ensuring fast data transfer speeds.
- Features a stylish heatsink and blower fan to effectively prevent M.2 throttling during intensive use.
Cons:
- Compatible primarily with AMD sTRX40 and AM4 sockets, and Intel VROC, limiting cross-platform flexibility.
- Requires a PCIe x8 or x16 slot, which may not be available on all motherboards.
- Power consumption support up to 14W per SSD may restrict the use of some high-power drives.

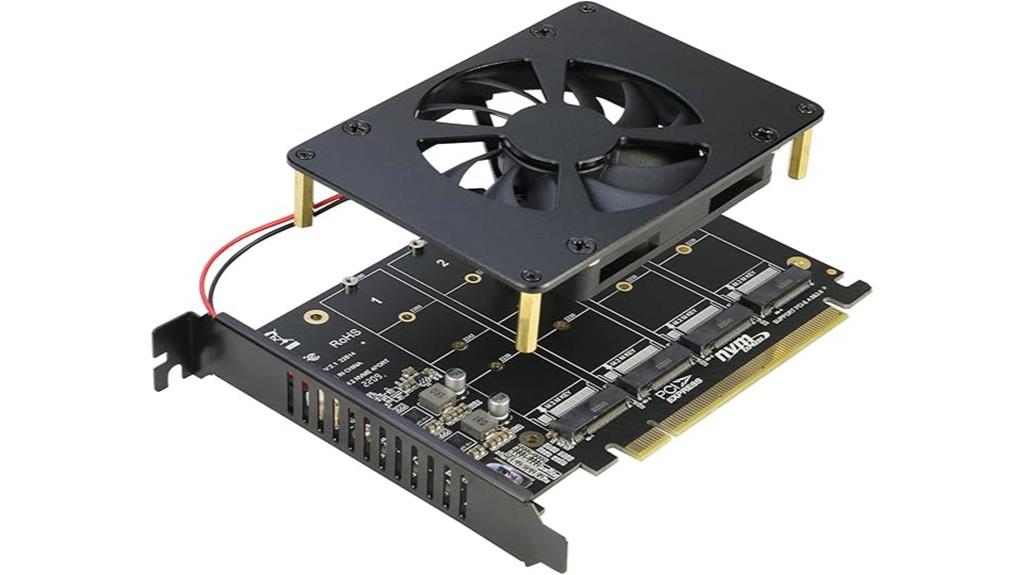

JEYI NVMe PCIe 4.0 Expansion Card for 4 SSDs
The JEYI NVMe PCIe 4.0 Expansion Card is an excellent choice for users seeking high-density storage solutions, as it supports four NVMe M.2 SSDs up to 8TB each, all within a single card. It’s compatible with bifurcation motherboards and fits into high or low profile cases, offering versatile installation options. With dual voltage power modules providing stable power, it guarantees reliable performance. Leveraging PCIe 4.0 bandwidth, it can deliver up to 256 Gbps transfer speeds. Additionally, it supports NVMe RAID configurations, enabling redundancy and enhanced performance, making it a powerful addition for demanding storage setups.
Best For: users needing high-capacity, high-speed storage solutions in professional or gaming setups with support for bifurcation motherboards.
Pros:
- Supports four NVMe SSDs up to 8TB each, providing high storage density.
- Utilizes PCIe 4.0 bandwidth for transfer speeds up to 256 Gbps, ensuring fast data throughput.
- Compatible with bifurcation motherboards and various case sizes, offering versatile installation options.
Cons:
- Requires motherboard bifurcation support, which may limit compatibility with some systems.
- Needs dual 6A power modules, potentially increasing power management complexity.
- May require additional configuration for RAID setup depending on motherboard capabilities.

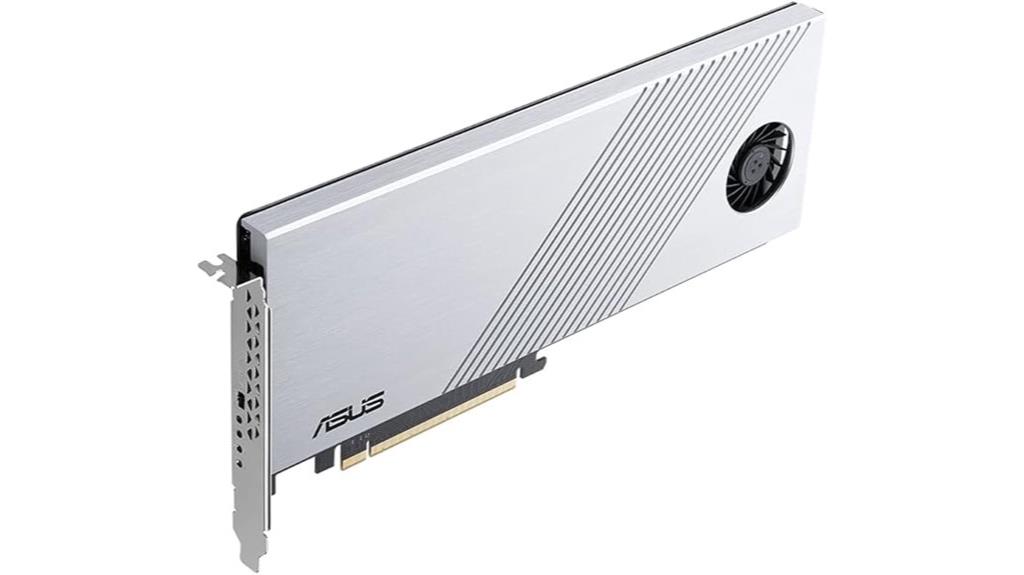

ASUS Hyper M.2 x16 Gen 4 PCIe 4.0/3.0 Support for Multiple NVMe Devices
Looking for a reliable solution to maximize your storage performance with multiple NVMe drives? The ASUS Hyper M.2 x16 Gen 4 is an excellent choice. It supports four M.2 NVMe devices in various sizes, offering up to 256 Gbps bandwidth. Compatible with AMD TRX40/X570 and Intel platforms, it enables PCIe 4.0/3.0 NVMe RAID configurations. The card features a robust two-phase power design and a large heatsink with active cooling, ensuring stability during intensive use. Its server-type PCB design enhances durability, making it ideal for demanding environments where high-speed, reliable storage is essential.
Best For: power users and professionals seeking high-speed, reliable multi-NVMe storage solutions compatible with AMD and Intel platforms.
Pros:
- Supports up to four NVMe devices with high bandwidth of 256 Gbps for demanding data transfer needs.
- Compatible with AMD TRX40/X570 and Intel platforms, enabling versatile RAID configurations.
- Equipped with active cooling and robust power delivery for sustained performance and stability.
Cons:
- Requires PCIe bifurcation support in BIOS for non-compatible motherboards.
- May need additional cooling solutions in extremely high-temperature environments.
- Installation and configuration can be complex for users unfamiliar with BIOS settings and PCIe bifurcation.

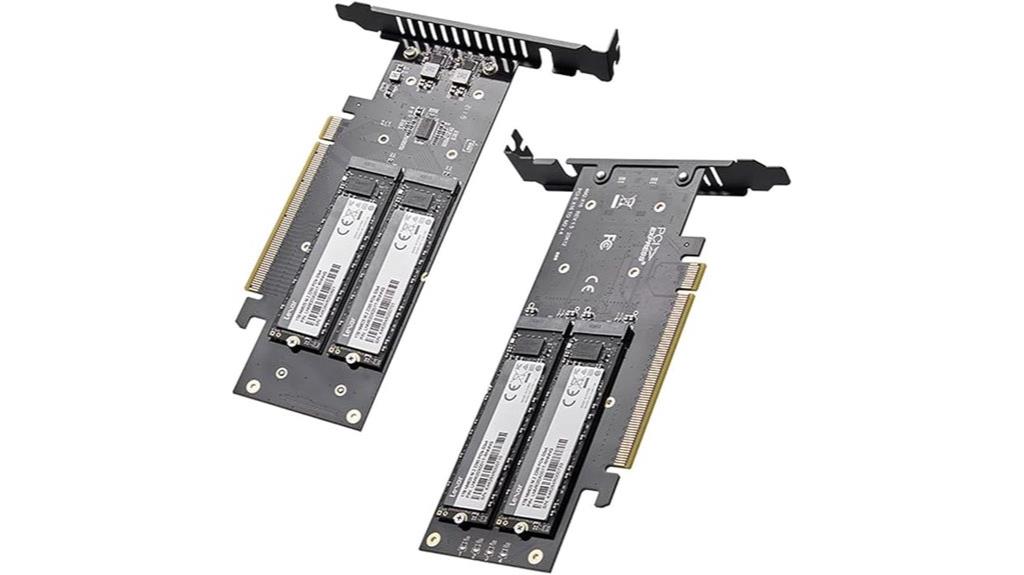

Cablecc Dual NVME M.2 SSD to PCIe Gen4 Raid Card with Low Profile Bracket
For users with motherboards supporting PCIe bifurcation, the Cablecc Dual NVMe M.2 SSD to PCIe Gen4 Raid Card with Low Profile Bracket offers an excellent solution to maximize NVMe SSD performance. It supports two drives simultaneously via VROC Raid0, leveraging PCIe Gen4 x8/x16 interfaces for high speed. Designed for low-profile slots, it fits compact cases and is compatible with Windows 10/11. However, proper motherboard support is critical; non-bifurcation boards recognize only one drive, limiting performance. Users should also be aware of potential installation challenges and compatibility issues, especially with older systems or non-standard mounting. Overall, it’s a cost-effective, flexible option for optimized NVMe RAID setups.
Best For: users with compatible motherboards supporting PCIe bifurcation seeking high-speed NVMe RAID solutions in compact cases.
Pros:
- Supports dual NVMe SSDs with high-speed PCIe Gen4 x8/x16 interfaces for optimal performance
- Compatible with Windows 10/11 and leverages VROC for software RAID, reducing hardware complexity
- Low-profile design fits in compact cases, suitable for enterprise and personal use
Cons:
- Requires motherboard with PCIe bifurcation support; non-bifurcation boards recognize only one drive
- Installation can be challenging due to non-standard mounting, missing screws, or compatibility issues
- May not perform as expected on older PCIe 2.0, x1 slots, or systems lacking proper support
SABRENT 4-Drive NVMe SSD to PCIe 4.0 X 16 Adapter Card
If you’re expanding high-speed storage in a desktop with a compatible motherboard, the SABRENT 4-Drive NVMe SSD to PCIe 4.0 x16 Adapter Card is an excellent choice, especially when you need to support up to four NVMe M.2 SSDs simultaneously. It supports PCIe 4.0 x16, backward compatible with PCIe 3.0/2.0, and works with various RAID configurations through Intel VROC, AMD Ryzen NVMe RAID, or Windows Storage Spaces. Designed with aluminum for heat dissipation and thermal padding, it guarantees stable performance. However, it requires motherboard support for bifurcation and proper BIOS configuration. Its build quality and expandability make it ideal for demanding storage environments.
Best For: tech enthusiasts and professionals seeking to expand high-speed NVMe storage in desktops with compatible motherboards supporting PCIe bifurcation.
Pros:
- Supports up to four NVMe M.2 SSDs in a single PCIe 4.0 x16 slot, maximizing storage capacity.
- Constructed with aluminum and thermal padding for effective heat dissipation, ensuring stable performance.
- Compatible with multiple RAID configurations via Intel VROC, AMD Ryzen NVMe RAID, or Windows Storage Spaces, offering flexible data management options.
Cons:
- Requires motherboard support for PCIe bifurcation and BIOS configuration, which may complicate setup on some systems.
- Cooling efficiency can vary; thermal pads may not fully contact SSD controllers, potentially affecting thermal performance.
- Lacks active cooling solutions; relies on passive heat dissipation and user-installed fans, which may be insufficient in demanding environments.

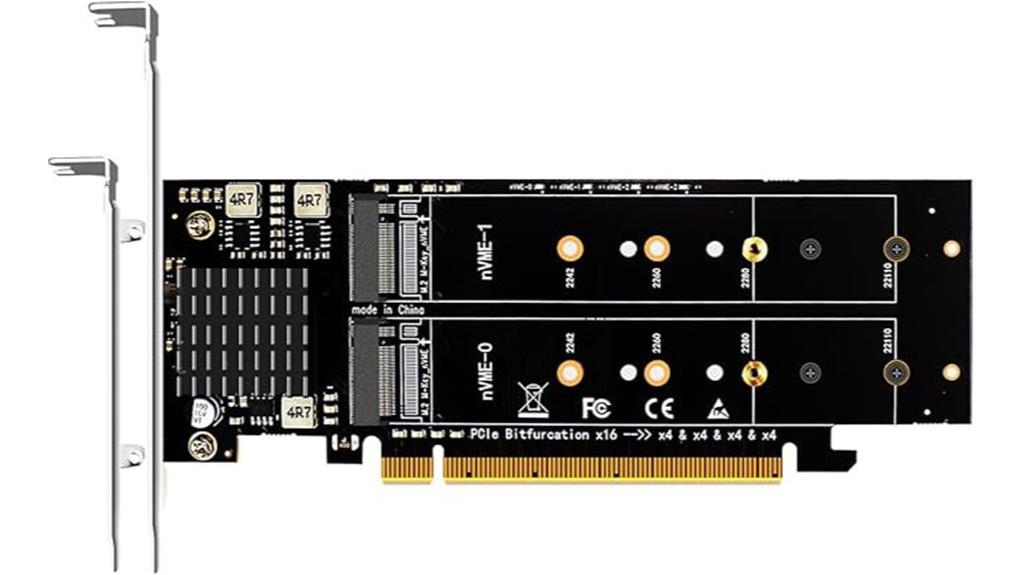

Quad NVMe PCIe Adapter, RIITOP 4-Port NVMe to PCI-e Expand Controller Card
The RIITOP 4-Port NVMe to PCIe Expand Controller Card is an excellent choice for users who need to maximize storage performance without investing in expensive hardware RAID solutions. It allows you to add four NVMe SSDs via PCIe 4.0/3.0 x16 slots with bifurcation support, supporting various M.2 sizes (80x22mm, 60x22mm, 42x22mm, 30x22mm). Designed with a heatsink and individual LED indicators, it ensures thermal management and easy monitoring. Compatibility depends on motherboard BIOS support for bifurcation and PCIe x16 slots. While it doesn’t support hardware RAID, software solutions enable flexible configurations, making it a budget-friendly, high-performance storage expansion.
Best For: users seeking a cost-effective, high-performance NVMe storage expansion solution compatible with a variety of motherboards supporting PCIe bifurcation.
Pros:
- Supports up to four NVMe SSDs simultaneously with PCIe 4.0/3.0 x16 bifurcation support.
- Includes a heatsink and LED indicators for thermal management and easy status monitoring.
- Compatible with multiple M.2 sizes and offers reliable, full-speed data transfer up to 4x 32Gbps.
Cons:
- Requires motherboard BIOS support for PCIe bifurcation; incompatibility can limit the number of recognized drives.
- Does not support hardware RAID, relying solely on software or third-party solutions.
- Installation and setup depend on proper BIOS configuration, which may be challenging on some systems.

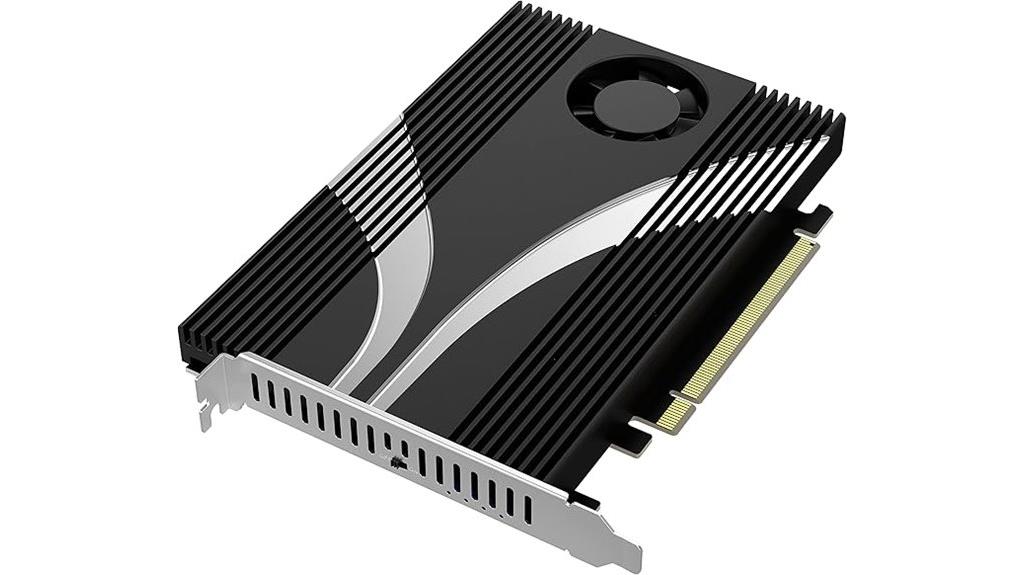

Sonnet M.2 8×4 Silent PCIe 4.0 PCIe Card (Window & Linux)
Designed for professionals and enthusiasts who need ultra-fast, high-capacity storage, the Sonnet M.2 8×4 Silent PCIe 4.0 Card delivers impressive performance with support for up to 64TB across eight NVMe SSDs. Compatible with Windows 10 and Linux, it supports RAID 0, 1, and 10 configurations. Its custom silent cooling prevents thermal throttling, ensuring consistent speeds during intensive workloads. Utilizing PCIe 4.0 x16 with a full x16 bandwidth, it can reach real-world read speeds around 6,972 MBps. Despite some compatibility challenges, especially with Macs, this card offers a high-performance solution for demanding storage needs, making it ideal for pro and enthusiast setups.
Best For: professionals and enthusiasts requiring ultra-fast, high-capacity NVMe storage solutions with robust cooling and RAID support.
Pros:
- Supports up to 64TB storage across eight NVMe SSDs, ideal for large data projects.
- Utilizes PCIe 4.0 x16 interface delivering high-speed data transfer speeds up to 6,972 MBps in real-world tests.
- Features a custom silent cooling system that maintains optimal performance without noise.
Cons:
- Compatibility issues with some Mac systems and macOS Sonoma, limiting cross-platform use.
- Installation and setup can be challenging, with reports of recognition problems despite indicator lights.
- Support experiences vary, with some users citing slow responses from Sonnet technical assistance.
HighPoint Technologies SSD7540 PCIe 4.0 x16 8-Port M.2 NVMe RAID Controller
Looking for a high-performance NVMe RAID solution that can handle demanding workloads with speed and reliability? The HighPoint SSD7540 offers eight M.2 NVMe ports with PCIe 4.0 x16 support, delivering up to 28,000MB/s transfer speeds. Its advanced NVMe RAID engine and integrated Gen4 switch chipset guarantee top-tier performance, supporting RAID 0, 1, and 10 configurations. Designed with robust cooling, it maintains suitable temperatures during heavy loads. Compatible with AMD and Intel systems, it’s platform-independent. While setup can be complex, its scalability and high-speed capabilities make it ideal for enterprise and high-end workstation environments.
Best For: professionals and enterprise users seeking a high-speed, scalable NVMe RAID controller for demanding workloads and data-intensive applications.
Pros:
- Supports up to 8 M.2 NVMe SSDs with transfer speeds up to 28,000MB/s for exceptional performance
- Compatible with both AMD and Intel platforms, offering flexibility in system integration
- Advanced cooling system maintains optimal temperatures during prolonged heavy I/O operations
Cons:
- Installation and configuration can be complex, requiring technical expertise
- Higher cost compared to standard motherboard or lower-end RAID solutions
- Potential for system stability issues or BIOS corruption if not properly installed or configured
GLOTRENDS PA54 Quad M.2 NVMe to PCIe 5.0 X16 Adapter
If you’re aiming to maximize storage performance with multiple NVMe SSDs, the GLOTRENDS PA54 Quad M.2 NVMe to PCIe 5.0 x16 Adapter is an excellent choice—especially if your motherboard supports PCIe bifurcation. It expands four M.2 NVMe slots via PCIe 5.0 x16, supporting 2230 and 2280 SSDs with up to 512Gbps bandwidth. However, full performance depends on motherboard BIOS settings and bifurcation support, as the adapter itself doesn’t handle bifurcation. Compatible with AMD and Intel, it allows software RAID and OS booting from NVMe SSDs with proper setup. It’s a powerful, flexible solution for those seeking ultimate storage performance.
Best For: users seeking maximum storage expansion and high-speed data transfer with multiple NVMe SSDs on compatible motherboards supporting PCIe bifurcation.
Pros:
- Supports four NVMe SSDs simultaneously with up to 512Gbps bandwidth.
- Compatible with both AMD and Intel platforms, supporting various OS including Windows, Linux, and macOS.
- Enables software RAID and OS boot from NVMe drives with proper BIOS configuration.
Cons:
- Requires motherboard BIOS support for PCIe bifurcation; not all motherboards are compatible out of the box.
- Does not support hardware RAID; only software RAID configurations are possible.
- Legacy motherboards may only support storage, not booting from NVMe SSDs, requiring BIOS adjustments.

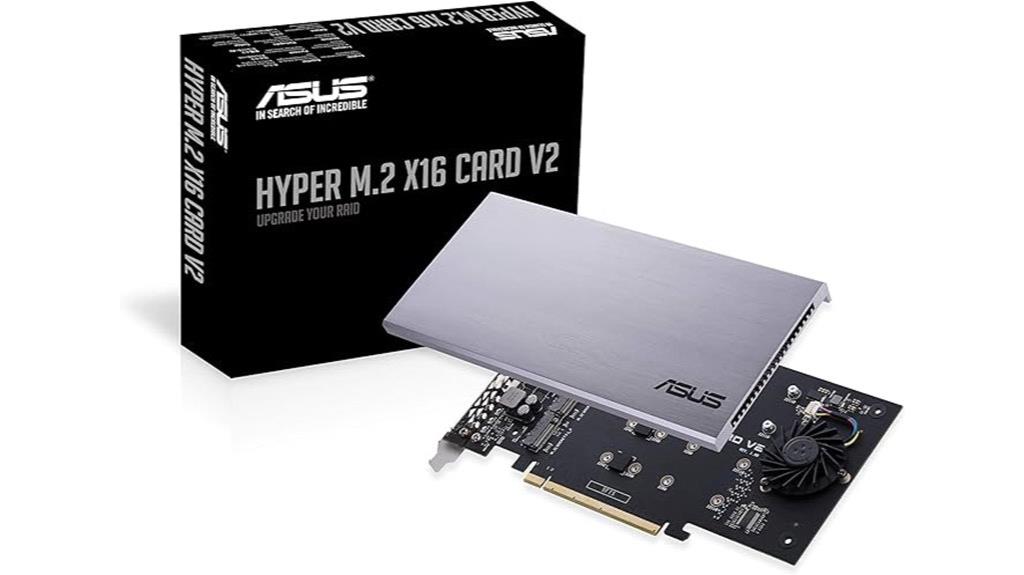

ASUS Hyper M.2 X16 PCIe 3.0 Expansion Card V2
The ASUS Hyper M.2 X16 PCIe 3.0 Expansion Card V2 is an excellent choice for users who want to expand their high-speed storage with multiple NVMe drives, especially if their system supports PCIe bifurcation. It supports four M.2 drives up to 2280 in size and delivers transfer speeds up to 128 Gbps with Intel VROC or AMD Ryzen Threadripper platforms. The card features a heatsink and blower fan to prevent throttling, and it requires BIOS adjustments like enabling bifurcation for full drive recognition. Compatible with Windows, Linux, and Chrome OS, it’s ideal for high-performance RAID setups when paired with the right motherboard.
Best For: enthusiasts and professionals seeking high-speed NVMe storage expansion with support for RAID in systems that support PCIe bifurcation.
Pros:
- Supports four NVMe M.2 drives with high transfer speeds up to 128 Gbps.
- Equipped with heatsink and blower fan for effective thermal management.
- Compatible with multiple operating systems including Windows, Linux, and Chrome OS, and supports RAID configurations.
Cons:
- Requires BIOS adjustments such as enabling PCIe bifurcation, which may be complex for some users.
- Limited support on motherboards without PCIe bifurcation or sufficient PCIe lanes.
- Does not support PCIe 4.0, potentially limiting performance with newer drives.

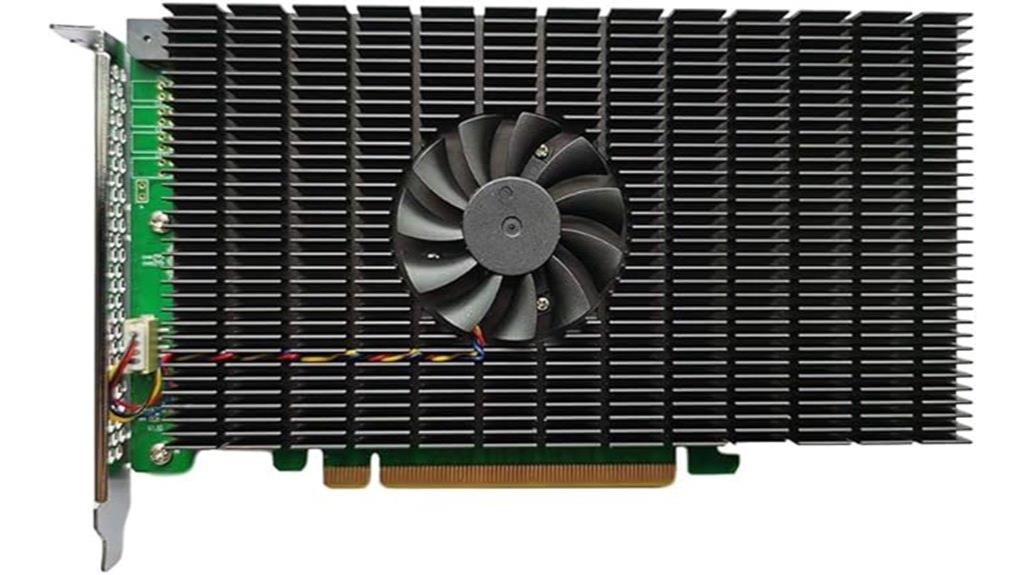

HighPoint SSD7505 PCIe 4.0 x16 4-Channel M.2 NVMe RAID Controller
For high-performance storage setups that demand maximum bandwidth and capacity, the HighPoint SSD7505 PCIe 4.0 x16 RAID controller stands out as an excellent choice—especially for users running Windows or Linux who want to leverage multiple NVMe drives. It supports four M.2 NVMe drives with up to 32TB total capacity, low-noise hyper-cooling, and real-time temperature and TBW monitoring. While it offers bootable RAID 0, 1, and 10 configurations, it’s not a traditional RAID card and lacks XOR parity. Compatibility requires a PCIe x16 or x8 slot with good airflow, and users should be prepared for some setup complexity and driver challenges.
Best For: power users and professionals seeking high-capacity, high-speed NVMe storage with customizable RAID configurations on Windows or Linux systems.
Pros:
- Supports up to 32TB total capacity across four NVMe drives, ideal for demanding data workloads
- Offers PCIe 4.0 x16 support with low-noise hyper-cooling and real-time temperature/TBW monitoring
- Provides bootable RAID 0, 1, and 10 configurations, enhancing flexibility for various storage needs
Cons:
- Complex setup requiring specific BIOS, UEFI, and driver configurations, which can be challenging for less experienced users
- Lacks XOR parity, limiting RAID options to 0, 1, and 10, thus not suitable for all enterprise or data protection needs
- Compatibility and driver issues may arise with newer OS updates, especially Windows 11 and recent Linux kernels, potentially affecting reliability
M.2 PCIe Adapter x16 Gen4 for 4 M.2 SSDs
Designed for high-performance enthusiasts and professionals, the M.2 PCIe Adapter x16 Gen4 for 4 M.2 SSDs release maximum bandwidth by supporting up to 256 Gbps total transfer speed. This adapter expands storage capabilities by accommodating four NVMe M.2 SSDs of various sizes (2230, 2242, 2260, 2280) and is compatible with PCIe standards 1.0 to 4.0, ensuring future-proofing. It supports BIOS booting for seamless system startup, and its quiet DC Brushless fan maintains ideal temperatures during intense data transfers. Proper motherboard support for PCIe bifurcation is essential to unleash full performance, making this adapter ideal for demanding storage setups.
Best For: high-performance enthusiasts and professionals seeking to expand their storage capacity with maximum bandwidth and reliable cooling.
Pros:
- Supports up to 256 Gbps total bandwidth for blazing-fast data transfer speeds
- Compatible with multiple NVMe SSD sizes (2230, 2242, 2260, 2280) and PCIe standards 1.0 to 4.0 for future-proofing
- Equipped with a quiet DC Brushless fan to maintain optimal temperatures during intensive use
Cons:
- Requires motherboard support for PCIe bifurcation to realize full four-drive performance
- Installation may be limited on motherboards lacking PCIe signal splitting/bifurcation support
- Higher power consumption and potential noise from the cooling fan during operation

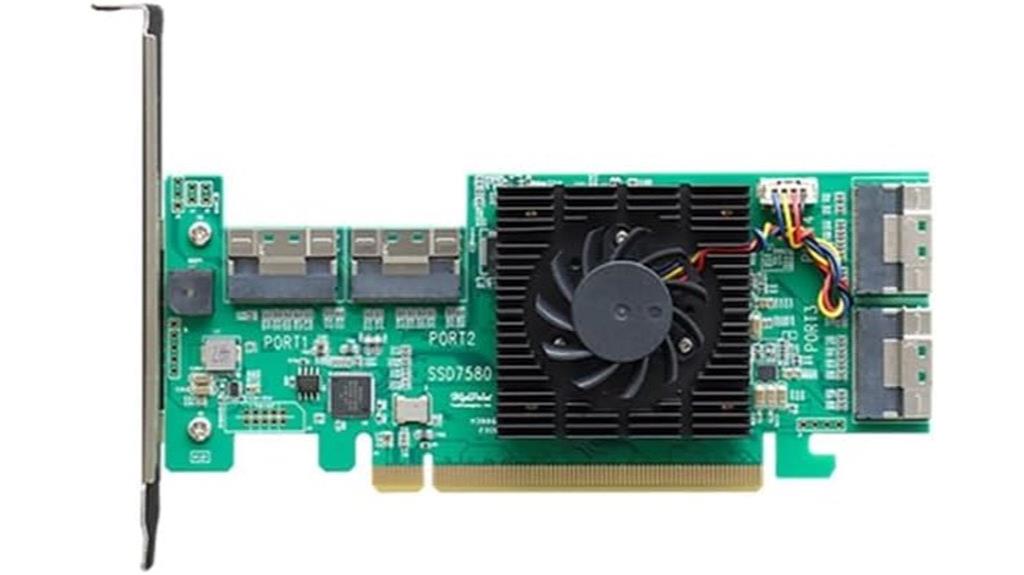

HighPoint Technologies SSD7580C PCIe 4.0 x16 8-Port U.2 NVMe RAID HBA
If you’re seeking high-performance storage solutions for enterprise-level demanding workloads, the HighPoint Technologies SSD7580C PCIe 4.0 x16 8-Port U.2 NVMe RAID HBA stands out as an excellent choice. It offers eight independent U.2/NVMe channels, a dedicated PCIe 4.0 x16 interface, and supports over 200TB of hot-swappable storage. With a sustained throughput of 28,000MB/s, it guarantees fast data access. Its compact, half-height design fits standard servers and workstations, compatible with Linux and Windows. Advanced cooling, hot-swap capability, and hardware encryption provide reliable performance and data security. This RAID HBA is ideal for demanding enterprise environments needing scalable, high-speed storage solutions.
Best For: enterprise IT professionals and data centers seeking high-capacity, high-speed, scalable NVMe storage solutions with robust security features.
Pros:
- Supports over 200TB of hot-swappable NVMe storage with a 28,000MB/s throughput.
- Hot-plug/hot-swap capability for seamless maintenance without downtime.
- Advanced security with hardware encryption and drive lock-down features.
Cons:
- Requires compatible host platform with specific backplane for M.2 compatibility.
- May be overkill for small-scale or non-enterprise use cases.
- Slightly larger dimensions and weight may require dedicated space in rackmount setups.

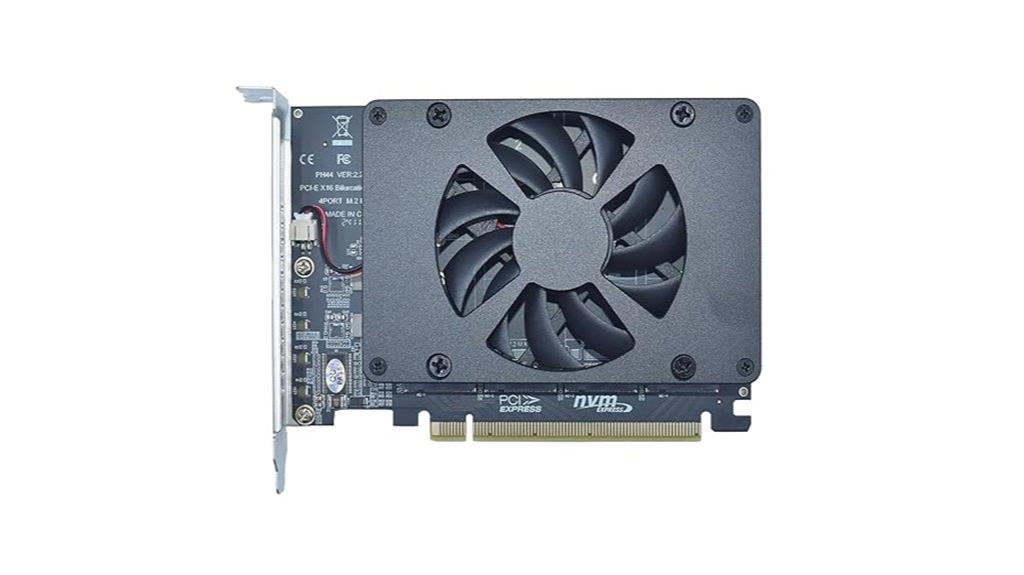

Quad NVMe PCIe Adapter with Fan Support
The RIITOP Quad NVMe PCIe Adapter with Fan Support stands out as an excellent choice for advanced users who need to expand their storage with high-speed SSDs while maintaining peak temperatures. It allows four NVMe SSDs to be added via a single PCIe 4.0/3.0 x16 slot, supporting bifurcation on compatible motherboards like X299 and X399. The active cooling fan prevents throttling during intensive tasks, while LED indicators show drive activity. Setup requires enabling bifurcation in BIOS, and it supports soft RAID configurations. Compact and versatile, this adapter offers reliable multi-drive expansion, though some find the fan noisy or bulky. It’s a solid option for high-performance storage arrays.
Best For: advanced users and IT professionals seeking high-speed multi-NVMe SSD expansion with reliable cooling in compatible motherboards.
Pros:
- Supports four NVMe SSDs simultaneously via a single PCIe x16 slot, maximizing storage capacity.
- Includes an active cooling fan to prevent thermal throttling during intensive workloads.
- Compatible with motherboards supporting PCIe x16 bifurcation and offers LED indicators for drive activity monitoring.
Cons:
- The cooling fan can be loud and may interfere with SSD heatsinks, requiring modifications.
- Setup depends heavily on motherboard BIOS support for bifurcation, which can be complex to configure.
- Not suitable for SATA-based M.2 SSDs, limiting compatibility to PCIe NVMe drives only.
GLOTRENDS PA41 M.2 NVMe to PCIe 4.0 x16 Adapter
The GLOTRENDS PA41 M.2 NVMe to PCIe 4.0 x16 Adapter stands out as an ideal solution for power users who want to maximize storage performance by installing multiple NVMe SSDs simultaneously. It supports up to four M.2 NVMe drives in various sizes, allowing for concurrent access and potential RAID configurations on compatible systems. However, it requires a motherboard with PCIe bifurcation support, such as X4X4X4X4 or Hyper M.2 X16 modes, and proper BIOS setup. For full PCIe 4.0 speed, your CPU, motherboard, and SSDs all need to support PCIe 4.0. Compatibility and setup are key to accessing its full potential.
Best For: power users and professionals seeking to maximize storage capacity and performance with multiple NVMe SSDs on a compatible motherboard.
Pros:
- Supports up to four NVMe SSDs simultaneously for high-capacity and high-speed storage.
- Enables RAID configurations on compatible systems for data redundancy and performance.
- Compatible with multiple OS including Windows, Linux, and Mac OS (excluding Windows 7).
Cons:
- Requires a motherboard with PCIe bifurcation support and proper BIOS setup, which may limit compatibility.
- Dependence on motherboard features means some systems may not support booting from NVMe drives.
- Full PCIe 4.0 performance demands compatible CPU, motherboard, and SSDs, which can increase overall system cost.
Factors to Consider When Choosing Pcie Gen4 Nvme Raid Cards
When selecting a PCIe Gen4 NVMe RAID card, I consider factors like compatibility with my motherboard, especially bifurcation support, to guarantee everything works smoothly. Cooling and heat dissipation are also essential to maintain performance and longevity, along with understanding performance limits and available RAID configurations. These points help me choose a card that best fits my system’s needs and future-proof my setup.
Compatibility With Motherboards
Choosing a PCIe Gen4 NVMe RAID card requires ensuring your motherboard can support its advanced features. First, check if your motherboard supports PCIe bifurcation, which is essential for recognizing multiple NVMe drives in RAID configurations. Make sure your PCIe slots are compatible with PCIe 4.0 to facilitate the full bandwidth and performance potential of the RAID card. Verify that the BIOS includes options to enable PCIe bifurcation and NVMe RAID settings, as these are often necessary for proper operation. Additionally, confirm your motherboard provides enough PCIe lanes and slots to prevent bottlenecks, especially in high-bandwidth setups. Be aware that some motherboards only support single NVMe drives per slot or lack bifurcation support, limiting RAID functionality.
Bifurcation Support Needed
Bifurcation support in your motherboard or system BIOS plays a key role in maximizing the capabilities of a PCIe Gen4 NVMe RAID card. Without it, a PCIe x16 slot may only recognize a single NVMe drive, limiting throughput and storage expansion. Enabling bifurcation usually requires specific BIOS settings, but not all motherboards support this feature. Bifurcation allows splitting a single PCIe slot into multiple lanes, such as x4/x4/x4/x4, enabling multiple NVMe drives to operate at full speed simultaneously. Confirming your motherboard’s compatibility with bifurcation is essential—installing a PCIe RAID card without support often results in only one drive being recognized or operational. Ensuring bifurcation support is a critical factor when planning for high-performance storage setups.
Cooling and Heat Dissipation
Effective cooling is vital for maintaining ideal performance and longevity of PCIe Gen4 NVMe RAID cards, especially when multiple drives are involved. Without proper heat dissipation, drives can overheat, leading to thermal throttling that reduces speed and can cause errors. Heat sinks and active fans are common solutions to manage temperatures effectively. Thermal pads and heat sinks should make direct contact with SSD controllers for maximum heat transfer. While active cooling fans improve heat dissipation substantially, they can introduce noise and compatibility issues in smaller or quieter systems. Proper airflow and integrated cooling components are essential to prevent overheating, which can cause performance drops, drive errors, and reduce drive lifespan. Prioritizing efficient heat management ensures consistent performance and system reliability over time.
Performance and Bandwidth Limits
Have you ever wondered what limits the speed and performance of PCIe Gen4 NVMe RAID cards? The main factor is bandwidth, which can reach up to 256 Gbps with a PCIe 4.0 x16 interface. However, real-world performance depends heavily on your motherboard’s PCIe bifurcation support and the number of drives connected. Adding more drives shares the available bandwidth, so transfer speeds per drive can drop if the total bandwidth is saturated. Bottlenecks often occur due to motherboard PCIe lane availability or CPU PCIe generation, limiting maximum throughput. For ideal performance, you need a setup where the PCIe slot, motherboard chipset, and drives all support PCIe 4.0 and are configured to maximize bandwidth. This ensures you get the most out of your RAID card’s potential.
RAID Configuration Options
Choosing the right RAID configuration for PCIe Gen4 NVMe cards depends on your specific needs for performance, redundancy, and system compatibility. Common options include RAID 0 for maximum speed through striping, RAID 1 for data redundancy via mirroring, and RAID 10, which combines both for balanced performance and protection. Some high-end controllers support both hardware and software RAID modes, giving you flexibility based on your system’s capabilities. Keep in mind that motherboard support and BIOS/UEFI settings are fundamental, as they determine available RAID levels and may require specific BIOS configurations like bifurcation. Not all cards support hardware RAID; many rely on software or motherboard solutions, so proper setup is vital to guarantee data integrity and optimal performance.
Power Supply Requirements
When selecting a PCIe Gen4 NVMe RAID card, ensuring your power supply can handle the load is essential. These cards often demand high-quality power supplies that deliver enough wattage for multiple SSDs and the card itself, sometimes up to 14W per drive. Many high-performance models need dedicated power connectors or dual-voltage modules (3.3V and 12V) to maintain stable operation under load. It’s critical to have multiple stable, clean power rails to prevent voltage fluctuations that could cause data corruption or drive instability. For example, supporting four NVMe SSDs at 14W each, plus the card’s consumption, might require a 550W or higher power supply. Proper connectors and sufficient amperage on the 12V rail are key for reliable, high-density storage setups.
Frequently Asked Questions
How Compatible Are These RAID Cards With Different Motherboard Chipsets?
These RAID cards generally work well with most modern motherboard chipsets that support PCIe Gen4, but compatibility varies. I recommend checking the motherboard’s specifications to confirm it has enough PCIe lanes and the correct slot type. Sometimes, BIOS updates or specific chipset features are needed for maximum performance. Always verify compatibility before purchasing to avoid issues and ensure seamless integration with your system.
What Cooling Solutions Are Recommended for High-Performance NVME RAID Setups?
Did you know that high-performance NVMe drives can generate temperatures over 70°C under load? I recommend using a dedicated heatsink or a PCIe expansion card with built-in cooling solutions. For ideal results, consider airflow from case fans and possibly liquid cooling if you’re pushing extreme speeds. Proper cooling not only maintains performance but also extends the lifespan of your NVMe drives, ensuring you get the most out of your RAID setup.
Can These Cards Support Hot-Swapping of SSDS During Operation?
Yes, these cards often support hot-swapping SSDs during operation, but it depends on the specific model. I recommend checking the manufacturer’s specifications to confirm hot-swap capability. When supported, hot-swapping can be seamless, allowing you to replace or add drives without shutting down your system. Just remember to handle SSDs carefully and follow proper procedures to prevent data loss or hardware damage.
How Do Firmware Updates Impact RAID Stability and Performance?
Firmware updates can substantially improve RAID stability and performance. When I update firmware, I notice enhanced compatibility, bug fixes, and sometimes faster data transfer rates. However, there’s a small risk of temporary instability or data loss if the update isn’t done correctly. I always back up my data before updating, and I follow manufacturer instructions carefully to ensure my RAID array remains reliable and performs at its best after each update.
Are There Specific Software Tools for Managing and Monitoring RAID Arrays?
Yes, there are specific software tools I use to manage and monitor my RAID arrays. Tools like Intel’s Rapid Storage Technology, Dell OpenManage, or MegaRAID Storage Manager help me keep an eye on drive health, performance, and configurations. They’re user-friendly, offer real-time updates, and allow me to troubleshoot issues quickly, ensuring my storage remains stable and performs at its best.
Conclusion
Choosing the right PCIe Gen4 NVMe RAID card is like picking the perfect key to release lightning-fast storage. With so many options shining like stars in the tech sky, your decision shapes your system’s future. Remember, it’s not just about speed but about creating a powerhouse that transforms your data experience. Ready to elevate your storage to new heights? The right card will turn your setup into a blazing trail of performance.
