For PCB inspection, I’d start with the HSFTOOLS F2VW as my best overall pick: its 640×480 super-resolution imaging and separate visual camera offer a useful balance for locating heat patterns on small boards. The ShortCam III stands out for a bench setup that benefits from a 4K HDMI display, while the GT16D offers a more straightforward option with a visual camera and 240×240 infrared resolution. The main tradeoffs are image detail, how easily you can frame tiny components, and whether you want a standalone or phone-connected workflow. Higher image resolution can help distinguish neighboring hot spots, but it does not replace careful focus, controlled measurement conditions, or a suitable close-up view. Read on for my full comparison and recommendations by buyer type.
Get privacy and security gear delivered free with Prime
- Fast, free delivery on millions of items
- Prime Video, Amazon Music and more included
- Member-only deals all year
Key Takeaways
- Resolution separates the detailed bench options from the simpler picks: the F2VW and P2W advertise 640×480 super resolution, while several other models list 240×240 infrared resolution.
- Visual context is useful when locating a hot component: the F2VW, P2W, and GT16D pair thermal imaging with a visual camera, while the ShortCam III emphasizes a 4K HDMI display workflow.
- Phone-connected and standalone designs serve different benches: the Thermal Master P3 is made for iOS and Android, whereas the FOXWELL HT280 and RT280 are handheld camera options.
- Special processing features target different interpretation needs: the RISION Magic highlights AI Bispectrix image fusion, the GT14S Edge Enhancement adds image processing, and the HF96 lists AI scene detection and a laser pointer.
- Similar model names deserve careful comparison: the two GT14S listings differ by edge enhancement, so buyers should check the exact configuration rather than assume the names describe identical tools.
| HSFTOOLS F2VW Thermal Camera with 2MP Visual Cam and 640×480 Super Resolution |  | Best for Detailed Handheld PCB Scans | Detector resolution: 256×192 | Enhanced thermal resolution: 640×480 via super resolution | Visual camera: 2MP | VIEW ON AMAZON | See Our Full Breakdown |
| GT16D Thermal Imaging Camera with Visual Camera, 240×240 UIRA-IR Resolution |  | Best for Long Inspection Sessions | Detector resolution: 128×128 | Enhanced resolution: 240×240 UIRA-IR | Refresh rate: 25 Hz | VIEW ON AMAZON | See Our Full Breakdown |
| Flagfront YXI96 Thermal Camera with 240×240 Resolution |  | Best for Rugged General-Purpose Checks | Resolution: 240×240 | Refresh rate: 25 Hz | Temperature range: -4°F to 1022°F | VIEW ON AMAZON | See Our Full Breakdown |
| Thermal Master Thor002 Thermal Camera |  | Best for Field Documentation | Native resolution: 256×192 | Enhanced resolution: 512×384 | Display: 3.5-inch IPS | VIEW ON AMAZON | See Our Full Breakdown |
| RIS ION Magic Thermal Camera with AI Bispectrix Image Fusion |  | Best Compact USB-C Option | Native resolution: 160×120 | Enhanced resolution: 320×240 QuadIR | Refresh rate: 25 Hz | VIEW ON AMAZON | See Our Full Breakdown |
| GT14S Thermal Imaging Camera with Edge Enhancement and Thermometer Mode |  | Best for Long Inspection Sessions | Weight: 240g | Battery capacity: 2500mAh | Battery life: Up to 14 hours | VIEW ON AMAZON | See Our Full Breakdown |
| GT14S Thermal Imaging Camera with Thermometer Mode |  | Best for Quick Spot Checks | Weight: 240g | Battery capacity: 2500mAh | Battery life: Up to 14 hours | VIEW ON AMAZON | See Our Full Breakdown |
| Thermal Master P3 Thermal Camera for iOS & Android |  | Best Compact Phone-Powered Pick | Compatibility: iOS, Android, Windows via extension cable | Thermal resolution: 512×384 upscaled from 256×192 native | Temperature range: -4°F to 1112°F (-20°C to 600°C) | VIEW ON AMAZON | See Our Full Breakdown |
| HSFTOOLS P2W WiFi Thermal Camera with 8MP Visual Cam and 640×480 Super Resolution |  | Best for Image Context and Sharing | Thermal resolution: 640×480 super-resolution | Detector type: VOx | Visual camera: 8MP | VIEW ON AMAZON | See Our Full Breakdown |
| FOXWELL HT280 Thermal Imaging Camera |  | Best for PC-Based Analysis | Display: 2.8-inch LCD | Resolution: 320×240; TISR enhanced to 260×260 | Thermal sensitivity: 50mK | VIEW ON AMAZON | See Our Full Breakdown |
| ShortCam III PCB Thermal Imaging Camera with 4K HDMI Display |  | Best for Bench-Based PCB Diagnosis | Brand: LAUREII | Model: ShortCam III (AD16) | Infrared resolution: 256 x 192 | VIEW ON AMAZON | See Our Full Breakdown |
| HSFTOOLS HF96 Thermal Imaging Camera with AI Scene Detection and Laser Pointer |  | Best for Long Inspection Sessions | Model: HF96 | Temperature range: -4°F to 1022°F | Accuracy: ±3.6°F | VIEW ON AMAZON | See Our Full Breakdown |
| TOPDON TC004 Mini Thermal Imaging Camera |  | Best Compact Pick | Model: TC004 Mini | Resolution: 240 x 240 TISR-enhanced | Field of view: 40° x 30° | VIEW ON AMAZON | See Our Full Breakdown |
| FOXWELL RT280 Thermal Imaging Camera |  | Best for Saving and Reviewing Inspections | Screen: 2.8-inch LCD | Resolution: 320 x 240; TISR-enhanced to 240 x 180 (as listed) | Field of view: 50° x 38° | VIEW ON AMAZON | See Our Full Breakdown |
| thermal cameras for pcb inspection | Temperature range | Thermal sensitivity | Field of view | Accuracy |
|---|---|---|---|---|
| HSFTOOLS F2VW Thermal Camera w | -4°F to 1022°F | <40 mK | — | — |
| GT16D Thermal Imaging Camera w | -4°F to 1202°F | <50 mK NETD | 50°×50° | ±2% |
| Flagfront YXI96 Thermal Camera | -4°F to 1022°F | — | 50° | ±2% |
| Thermal Master Thor002 Thermal | -4°F to 1022°F | 40 mK | — | ±3.6°F |
| RIS ION Magic Thermal Camera w | -4°F to 1112°F | 40 mK | 52°×39° | ±3.6°F |
| GT14S Thermal Imaging Camera w | — | <50mK | 50° | — |
| GT14S Thermal Imaging Camera w | -4°F to 1022°F | <50mK | 50° | — |
| Thermal Master P3 Thermal Came | -4°F to 1112°F (-20°C to 600°C) | — | — | ±3.6°F (±2°C) |
| HSFTOOLS P2W WiFi Thermal Came | -4°F to 752°F | <40mK | — | — |
| FOXWELL HT280 Thermal Imaging | -10°C to 500°C (14°F to 932°F) | 50mK | 50° × 50° | ±3.6°F or ±2% |
| ShortCam III PCB Thermal Imagi | — | — | — | — |
| HSFTOOLS HF96 Thermal Imaging | -4°F to 1022°F | <50 mK | 50° | ±3.6°F |
| TOPDON TC004 Mini Thermal Imag | -4°F to 842°F (-20°C to 450°C) | — | 40° x 30° | ±3.6°F / ±2% |
| FOXWELL RT280 Thermal Imaging | -4°F to 1022°F | — | 50° x 38° | ±3.6°F / ±2% |
More Details on Our Top Picks
HSFTOOLS F2VW Thermal Camera with 2MP Visual Cam and 640×480 Super Resolution
The HSFTOOLS F2VW pairs a 256×192 detector with AI super resolution that produces a 640×480 image, plus a 2MP visual camera for relating hot spots to components. Its fusion and picture-in-picture modes can make board-level troubleshooting easier to document than with the Flagfront YXI96, which has a wider field of view but no listed visual camera. The 25 Hz frame rate suits scanning a powered board by hand, while the stated sensitivity below 40 mK can help distinguish small temperature changes. The main qualification is that 640×480 is enhanced output, not native detector detail; tiny traces and closely spaced components may still blur together. Wi-Fi sharing also depends on a phone or tablet, adding a device to the inspection setup.
Pros:- Visual, thermal, fusion, and picture-in-picture modes help connect hot spots with board components.
- 25 Hz imaging supports fluid handheld scans across powered circuitry.
- Sensitivity below 40 mK is suited to spotting modest temperature differences.
- Wi-Fi supports sharing images to a phone or tablet.
Cons:- The 640×480 image is AI-enhanced from a 256×192 detector, so it does not provide native detail at that resolution.
- Full wireless sharing requires a separate smartphone or tablet.
- The listed temperature range does not by itself establish measurement accuracy for small PCB components.
Best for: PCB repair technicians who want a standalone handheld imager with visual context for locating and documenting component hot spots.
Not ideal for: Engineers who need native high-resolution detail on densely packed boards or want to inspect and share images without a companion phone.
- Detector resolution:256×192
- Enhanced thermal resolution:640×480 via super resolution
- Visual camera:2MP
- Frame rate:25 Hz
- Thermal sensitivity:<40 mK
- Temperature range:-4°F to 1022°F
- Display:3.2-inch LCD
- Image modes:Visual, thermal, fusion, PIP
Our verdict“Choose the F2VW if visual overlays and handheld board scans matter more than native pixel detail.”
GT16D Thermal Imaging Camera with Visual Camera, 240×240 UIRA-IR Resolution
For PCB work that involves inspecting multiple boards or tracking a fault through a longer bench session, the GT16D stands out for its stated up to 11-hour battery life and 4GB of storage. Its 240×240 UIRA-IR output is enhanced from a 128×128 detector, so buyers should distinguish the displayed resolution from native detail when examining small components. Compared with the HSFTOOLS F2VW, it offers more listed onboard storage and longer operating time, while the F2VW specifies a higher enhanced resolution and a 2MP visual camera. The GT16D’s visual fusion may help locate a thermal anomaly, but its moisture and insulation scene algorithms are aimed at broader inspections rather than PCB diagnosis. Its 50° field of view can also include neighboring components, making close targeting important.
Pros:- Stated battery life of up to 11 hours supports extended inspection sessions.
- 4GB storage holds images and video for later review.
- 240×240 enhanced output and a 25 Hz refresh rate support moving scans.
- A 50°×50° field of view covers a broad area during initial fault searches.
Cons:- The 240×240 output is enhanced from a 128×128 detector.
- Moisture and insulation scene algorithms are not specifically described for PCB analysis.
- The supplied data does not specify visual camera resolution or image modes in detail.
Best for: Technicians who inspect boards in extended sessions and want onboard image or video storage without frequent offloading.
Not ideal for: PCB engineers focused on fine-pitch components who need documented native detector resolution or specialized board-analysis features.
- Detector resolution:128×128
- Enhanced resolution:240×240 UIRA-IR
- Refresh rate:25 Hz
- Field of view:50°×50°
- Temperature range:-4°F to 1202°F
- Accuracy:±2%
- Thermal sensitivity:<50 mK NETD
- Battery life:Up to 11 hours
- Storage:4GB
Our verdict“Pick the GT16D for long, storage-heavy inspection sessions where runtime matters more than native fine-pitch detail.”

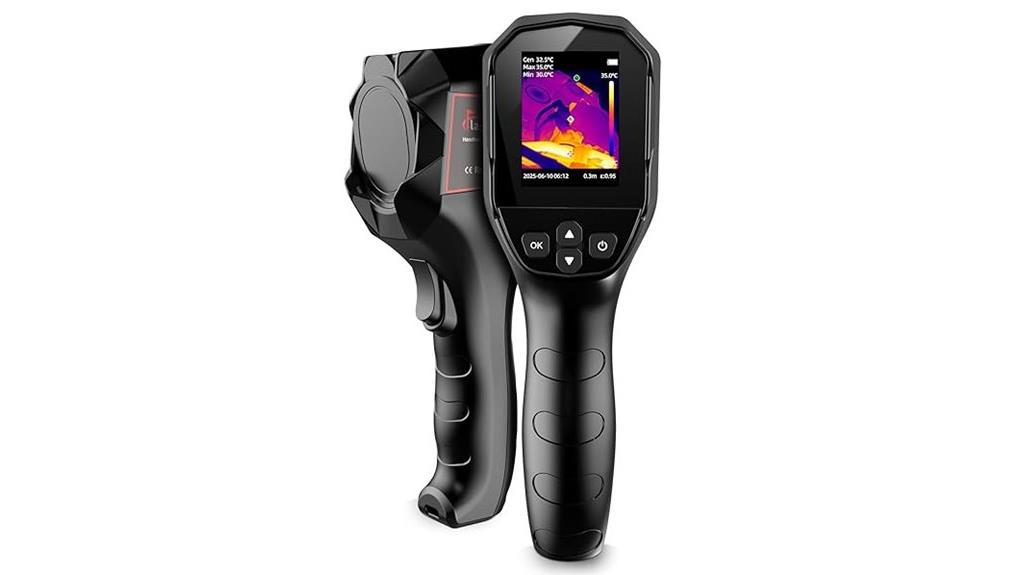

Flagfront YXI96 Thermal Camera with 240×240 Resolution
The Flagfront YXI96 is the straightforward choice here for technicians who need a thermal camera that can take routine knocks while moving between benches or work areas. Its IP54 protection and 6.6-foot drop resistance give it a durability case that the listed specs for the HSFTOOLS F2VW do not make, though the F2VW adds a visual camera and several overlay modes that are more useful for identifying which PCB component is heating up. The YXI96’s 240×240 resolution, 25 Hz refresh rate, and 50° field of view suit general hotspot sweeps, while adjustable emissivity helps account for differences in board surfaces. The provided data does not say whether its resolution is native or enhanced. Battery life and charging details are also absent, so it is harder to plan longer inspection sessions.
Pros:- IP54 protection and stated 6.6-foot drop resistance suit mobile work.
- 25 Hz refresh rate supports smooth scans across powered boards.
- Adjustable emissivity helps tailor temperature readings to different surfaces.
- A 50° field of view covers a broad area during initial checks.
Cons:- No visual camera or fusion mode is listed to help identify individual PCB components.
- Battery life and charging specifications are not provided.
- The 240×240 resolution is below the enhanced outputs listed for the HSFTOOLS F2VW and Thermal Master Thor002.
Best for: Field technicians who need a durable imager for broad electrical checks and occasional PCB hotspot surveys.
Not ideal for: Board repair specialists who need a visual overlay, detailed component identification, or confirmed battery runtime for extended bench work.
- Resolution:240×240
- Refresh rate:25 Hz
- Temperature range:-4°F to 1022°F
- Accuracy:±2%
- Field of view:50°
- Ingress protection:IP54
- Drop resistance:6.6 feet
- Color palettes:6
Our verdict“Choose the YXI96 for durability and broad hotspot checks, but choose a fusion-equipped model for component-level identification.”
Thermal Master Thor002 Thermal Camera
The Thermal Master Thor002 makes the strongest case for technicians who need to capture, review, and report inspection findings away from a fixed workstation. Its 256×192 native sensor is enhanced to 512×384, and the camera adds 32GB storage, Wi-Fi, PC analysis software, and up to 10.5 hours of battery life. For PCB work, those tools can simplify sharing and documenting a suspected hot component; the F2VW also offers fusion modes, but the Thor002 lists more storage and a longer stated runtime than the GT16D? Actually the GT16D states 11h, slightly more, but less storage. The Thor002’s rugged build and 3.5-inch display favor field use. Its fixed focus can limit close-up framing on dense boards, and digital zoom cannot recover detail that the sensor did not capture.
Pros:- 32GB storage and PC analysis software support image archiving and reporting.
- Wi-Fi supports sharing captured inspection data.
- Up to 10.5 hours of battery life suits extended field sessions.
- IP54 construction and 2-meter drop resistance support work outside a controlled bench.
Cons:- Fixed focus can make close-up PCB framing less flexible.
- 8× zoom is digital, so it does not add captured thermal detail.
- The 512×384 output is enhanced from a 256×192 native sensor.
Best for: Field service teams that inspect control boards and need to save, share, and turn thermal findings into PC reports.
Not ideal for: Bench technicians working on very small components who need adjustable close focus or optical magnification.
- Native resolution:256×192
- Enhanced resolution:512×384
- Display:3.5-inch IPS
- Thermal sensitivity:40 mK
- Temperature range:-4°F to 1022°F
- Accuracy:±3.6°F
- Battery life:Up to 10.5 hours
- Storage:32GB memory card
- Drop resistance:2 meters
Our verdict“Choose the Thor002 when rugged field documentation matters more than close-focus flexibility on dense boards.”
RIS ION Magic Thermal Camera with AI Bispectrix Image Fusion
The RIS ION Magic is a compact route into PCB thermal checks for people who already work from a compatible phone, tablet, or Windows device. Instead of a handheld camera with its own screen, it connects over USB-C and uses AI Bispectrix fusion to align thermal data with the host device’s visible camera. That can help connect a warm patch to a board location, while the HSFTOOLS F2VW keeps the display and visual camera in the instrument itself. The Magic’s 320×240 QuadIR image is upscaled from a 160×120 sensor; that distinction matters when trying to separate heat from adjacent small components. Its 25 Hz refresh and 40 mK sensitivity are useful for scanning, but the listed compatibility excludes Mac, and relying on a host device adds setup and handling constraints.
Pros:- USB-C connection works with listed iOS, Android, and Windows devices.
- AI Bispectrix fusion combines thermal information with visible imagery for location context.
- 25 Hz refresh rate and 40 mK sensitivity support moving hotspot scans.
- Twelve color palettes allow different thermal presentations.
Cons:- Mac devices are not supported.
- The 320×240 output is upscaled from a 160×120 sensor.
- A compatible host device is required for viewing and operation.
Best for: Repair hobbyists and mobile technicians who want a pocketable USB-C thermal attachment for quick PCB checks on a compatible device.
Not ideal for: Mac users or engineers who need a self-contained camera, a larger native detector, or dependable detail on tightly spaced components.
- Native resolution:160×120
- Enhanced resolution:320×240 QuadIR
- Refresh rate:25 Hz
- Field of view:52°×39°
- Temperature range:-4°F to 1112°F
- Accuracy:±3.6°F
- Thermal sensitivity:40 mK
- Connectivity:USB-C
- Compatibility:iOS, Android, Windows; Mac not supported
Our verdict“Pick the Magic for portable USB-C checks on a supported device, but use a higher native-resolution imager for dense boards.”
GT14S Thermal Imaging Camera with Edge Enhancement and Thermometer Mode
The GT14S suits PCB technicians who need to scan boards and revisit suspected hot spots through a full workday. Its up to 14-hour battery life and 240g body make handheld sweeps less tiring than using a phone-powered camera such as the Thermal Master P3, which depends on the connected phone’s charge. The <50mK sensitivity is aimed at spotting small temperature differences, while the 50° field of view covers a broad area quickly. The point-and-shoot thermometer mode and customizable alarms also help flag components for closer inspection. The tradeoff is limited documentation: the supplied details omit thermal resolution, storage, and connectivity, which makes image review and board-to-board comparisons harder to judge. I’d choose it for portable screening, but not as a documented analysis workflow.
Pros:- 240g weight supports comfortable handheld scanning
- Up to 14 hours of battery life suits extended bench or field work
- <50mK sensitivity is suited to finding subtle temperature differences
- 50° field of view speeds broad board scans
Cons:- Thermal sensor resolution is not specified
- Storage and connectivity details are not provided
- A broad field of view may make tiny component hot spots harder to isolate without close positioning
Best for: PCB repair technicians who need a lightweight camera for long handheld inspection sessions and quick anomaly checks
Not ideal for: Engineers who need specified thermal resolution, saved image capacity, or wireless transfer for repeatable documentation
- Weight:240g
- Battery capacity:2500mAh
- Battery life:Up to 14 hours
- Measurement range:-4°F to 1022°F
- Thermal sensitivity:<50mK
- Field of view:50°
- Color palettes:7
- Warranty:1 year
Our verdict“Choose this GT14S for long, untethered PCB screening when portability matters more than documented imaging and data-transfer features.”
GT14S Thermal Imaging Camera with Thermometer Mode
For fast PCB triage, this GT14S pairs a full-screen thermal view with a point-and-shoot thermometer mode, so I can scan a board and take a targeted reading without switching tools. Its 240g weight and non-slip grip support short, repeated checks around regulators, processors, and power stages. Compared with the first GT14S listing, this version’s supplied description emphasizes the dual measurement modes, while the other calls out edge enhancement and alarms. Both list <50mK sensitivity, a 50° field of view, and up to 14 hours of use. That makes either a plausible portable screening pick, but neither listing supplies the thermal resolution or image-transfer details needed to assess fine-pitch inspection and record keeping. This model fits technicians who value direct readings over a connected-phone workflow like the Thermal Master P3.
Pros:- Thermal imaging and spot thermometer modes support both scanning and targeted readings
- 240g body with a non-slip grip is easy to handle
- Up to 14 hours of battery life supports extended inspection work
- <50mK sensitivity and 50° field of view support broad anomaly searches
Cons:- Thermal resolution is not specified
- No wireless transfer or app integration is described
- A 50° view prioritizes coverage over tight framing of small PCB components
Best for: Repair technicians who want to move from broad thermal scanning to quick spot readings on suspect PCB components
Not ideal for: Lab users who need confirmed sensor resolution, image export, or software tools for documented component comparisons
- Weight:240g
- Battery capacity:2500mAh
- Battery life:Up to 14 hours
- Temperature range:-4°F to 1022°F
- Thermal sensitivity:<50mK
- Field of view:50°
- Warranty:1 year
Our verdict“Pick this GT14S for quick handheld triage when spot readings matter more than image documentation or fine-detail specifications.”
Thermal Master P3 Thermal Camera for iOS & Android
The Thermal Master P3 is the most compact choice here for technicians who already work from a compatible phone or tablet. At 0.93 oz, it plugs into the device and draws only 0.3W, avoiding a separate camera battery; its 25Hz refresh rate gives a responsive view while scanning powered boards. The stated 0.035°C NETD and 512×384 upscaled output promise more detail than either GT14S listing documents, though the native detector is 256×192, so the upscaled figure should not be read as native sensor resolution. Unlike the standalone HSFTOOLS P2W, it lacks its own screen and depends on a phone for viewing and power. Manual focus also takes care when changing distance, and Windows use needs an extension cable.
Pros:- Pocket-sized 0.93 oz design is easy to carry with a phone
- 0.035°C NETD is specified for detecting small temperature differences
- 512×384 super-resolution output provides a detailed displayed image
- USB-C and Lightning adapters support newer and older iPhones
Cons:- Requires a connected phone for display and power
- Manual focus can slow inspection when working at different distances
- Windows connectivity requires an extension cable
Best for: Mobile repair technicians who want a pocketable thermal attachment for inspecting powered boards through an iOS or Android device
Not ideal for: Bench teams needing a self-contained camera, fixed-focus convenience, or reliable use without a compatible phone
- Compatibility:iOS, Android, Windows via extension cable
- Thermal resolution:512×384 upscaled from 256×192 native
- Temperature range:-4°F to 1112°F (-20°C to 600°C)
- Accuracy:±3.6°F (±2°C)
- Sensitivity:0.035°C NETD
- Refresh rate:25Hz
- Dimensions:2.32 × 1.06 × 0.68 inches
- Weight:0.93 oz
- Power consumption:0.3W
Our verdict“Choose the P3 for phone-based PCB inspection when low carry weight and a detailed displayed image matter more than standalone operation.”
HSFTOOLS P2W WiFi Thermal Camera with 8MP Visual Cam and 640×480 Super Resolution
The P2W is a stronger fit when a PCB inspection needs visual context alongside heat patterns. Its 8MP visible camera, five image modes, and 3.5-inch touchscreen can help identify which connector or component sits beneath a thermal anomaly. The 640×480 figure is a super-resolution output, so it describes processed imagery rather than the base detector; that distinction matters when comparing it with the phone-powered Thermal Master P3, whose resolution is also upscaled. Wi-Fi and 16GB of storage make the P2W more self-contained for capturing and sharing findings. Yet the four-hour battery life is a clear limit for long inspection rounds, and its scene detection is described for leaks and insulation rather than PCB-specific diagnosis. I’d favor it for visual records, not all-day bench work.
Pros:- 8MP visual camera adds component and board context to thermal images
- 3.5-inch touchscreen supports standalone inspection
- Wi-Fi and 16GB storage support image capture and sharing
- Five image modes offer different ways to view thermal and visible information
Cons:- Up to four hours of battery life may require recharging during extended work
- 640×480 is super-resolution output rather than the stated base detector resolution
- Scene detection examples target water leaks and insulation, not PCB faults
Best for: Electronics technicians who need a standalone screen, visible-light context, and wireless sharing for documenting board anomalies
Not ideal for: Users doing long shifts or requiring PCB-specific automated fault classification and analysis
- Thermal resolution:640×480 super-resolution
- Detector type:VOx
- Visual camera:8MP
- Display:3.5-inch touchscreen
- Frame rate:25Hz
- Thermal sensitivity:<40mK
- Temperature range:-4°F to 752°F
- Storage:16GB eMMC
- Battery life:Up to 4 hours
Our verdict“Choose the P2W when standalone viewing and visible-light context help document PCB findings, and its shorter runtime fits your workflow.”
FOXWELL HT280 Thermal Imaging Camera
The HT280 makes the most sense for PCB technicians who capture images at the bench and review them later on a Windows computer. Its USB connection and PC analysis software support 2D/3D analysis and report generation, while storage for over 20,000 images helps build a record of recurring board faults. The 320×240 display is enhanced to 260×260 with TISR; that is a different kind of resolution claim from the HSFTOOLS P2W’s 640×480 super-resolution output, so I would compare the underlying detector details before treating either figure as a direct measure of PCB detail. The HT280’s eight-hour runtime and IP54 construction favor bench and field use. Its software is Windows-only, and no visual camera is listed, leaving less component context than the P2W provides.
Pros:- PC software supports 2D/3D analysis and report generation
- Storage capacity exceeds 20,000 images
- Eight-hour continuous battery life supports extended inspection sessions
- IP54 protection and 6.6-foot drop resistance suit workshop handling
Cons:- Analysis software is not compatible with Mac computers
- No visual camera is listed for adding component context
- Tripod support is available, but a tripod is not included
Best for: Windows-based repair benches that need to save many thermal images and generate reports for recurring PCB issues
Not ideal for: Mac users or technicians who need visible-light image fusion to identify small components in a crowded board
- Display:2.8-inch LCD
- Resolution:320×240; TISR enhanced to 260×260
- Thermal sensitivity:50mK
- Frame rate:25Hz
- Temperature range:-10°C to 500°C (14°F to 932°F)
- Accuracy:±3.6°F or ±2%
- Field of view:50° × 50°
- Storage:Over 20,000 images
- Battery life:8 hours continuous
Our verdict“Pick the HT280 for Windows-based PCB documentation and image analysis if you can work without a listed visual camera.”
ShortCam III PCB Thermal Imaging Camera with 4K HDMI Display
The ShortCam III is the most purpose-built choice here for a stationary electronics bench. Its 256 x 192 sensor and dual-light imaging are aimed at spotting small, heat-producing faults on circuit boards, while direct 4K HDMI output lets me send the view to a display without routing through a computer. That makes it a more natural fit for shared bench work than the handheld TOPDON TC004 Mini, which puts portability and long runtime first. The included PC and mobile analysis software adds a path from live inspection to saved review. The tradeoff is its fixed focus, which can limit close-up flexibility, and it lacks water resistance. I would choose it for controlled PCB diagnosis, not for a camera that needs to travel between varied field jobs.
Pros:- 256 x 192 infrared resolution is suited to locating small thermal anomalies on boards
- Direct 4K HDMI output supports display connection without a computer
- Dual-light imaging helps identify temperature rises linked to component leakage
- PC and mobile analysis software supports follow-up review
Cons:- Fixed focus can constrain close-up inspection flexibility
- Not water-resistant for field environments
- Bench-oriented HDMI setup is less portable than the TOPDON TC004 Mini
Best for: Electronics technicians who inspect boards at a fixed bench and want a direct HDMI view alongside microscope or display equipment.
Not ideal for: Field inspectors or buyers who need adjustable focusing for varied close-up targets or water-resistant construction.
- Brand:LAUREII
- Model:ShortCam III (AD16)
- Infrared resolution:256 x 192
- Display output:4K HDMI
- Body material:Aluminum alloy
- File formats:JPEG, MP4, AVI
- Water resistance:Not water-resistant
- Included accessories:Power supply, HDMI switcher, HDMI cable, USB Type-C cable
Our verdict“Choose the ShortCam III for display-led PCB troubleshooting at a dedicated electronics bench.”
HSFTOOLS HF96 Thermal Imaging Camera with AI Scene Detection and Laser Pointer
With up to 11 hours of battery life, the HF96 suits technicians who move between inspection points without frequent charging. Its 240 x 240 live super-resolution view, <50 mK thermal sensitivity, and 25 Hz refresh rate provide useful detail for surveying boards and electrical assemblies. The wide 50° field of view covers more area per pass than the FOXWELL RT280‘s 50° x 38° listed view, though a broad view can make tiny components harder to isolate without moving closer. Its AI scene detection targets water leaks and insulation gaps, so those automated functions are less tailored to PCB fault diagnosis than the ShortCam III’s dual-light board focus. I would favor the HF96 for mixed inspection work; Windows-only software and the lack of moisture readings narrow its workflow options.
Pros:- Up to 11 hours of battery life supports extended inspection rounds
- 240 x 240 live super-resolution and <50 mK sensitivity provide thermal detail
- 50° field of view covers a broad area during initial scans
- IP54 rating and 6.6-foot drop resistance suit field handling
Cons:- AI scene detection focuses on water leaks and insulation gaps rather than PCB-specific faults
- HSF Studio software is limited to Windows
- Does not provide moisture readings
Best for: Technicians who need a long-running handheld camera for mixed electrical, building, and equipment inspections, including preliminary board surveys.
Not ideal for: PCB specialists who want board-focused imaging tools or Mac users who rely on the included Windows software.
- Model:HF96
- Temperature range:-4°F to 1022°F
- Accuracy:±3.6°F
- Thermal sensitivity:<50 mK
- Resolution:240 x 240 live super resolution
- Field of view:50°
- Frame rate:25 Hz
- Battery and storage:Up to 11 hours; 4 GB internal storage
- Software:HSF Studio for Windows
Our verdict“Pick the HF96 for long mixed-use inspection sessions where battery life and a wide view matter more than PCB-specific analysis.”
TOPDON TC004 Mini Thermal Imaging Camera
The TC004 Mini is the portable option for technicians who want thermal checks close at hand rather than a dedicated bench analyzer. Its compact body, 240 x 240 TISR-enhanced resolution, and 40° x 30° field of view make it practical for scanning boards and then checking equipment elsewhere. Smart temperature alerts can trigger automatic photo capture, which helps document a heat event without keeping a hand on the shutter. Compared with the ShortCam III, it gives up direct 4K HDMI output and board-oriented dual-light imaging in exchange for portability and up to 15 hours of runtime. Its 512 MB storage is modest beside the FOXWELL RT280‘s 8 GB, and the package omits a charging head. This makes more sense for mobile troubleshooting than detailed, repeatable bench analysis.
Pros:- TISR enhances the 128 x 128 sensor view to 240 x 240
- Up to 15 hours of battery life supports mobile work
- Smart alerts can automatically capture images at temperature thresholds
- IP54 rating and 2-meter drop resistance support portable use
Cons:- 512 MB storage is limited compared with the FOXWELL RT280’s 8 GB
- Charging head is not included
- Does not list direct HDMI output or PCB-focused dual-light imaging
Best for: Repair technicians and field engineers who need a compact thermal camera for occasional PCB checks and broader equipment troubleshooting.
Not ideal for: Bench users who need HDMI display integration, extensive onboard storage, or specialized board-analysis features.
- Model:TC004 Mini
- Resolution:240 x 240 TISR-enhanced
- Field of view:40° x 30°
- Refresh rate:25 Hz
- Temperature range:-4°F to 842°F (-20°C to 450°C)
- Accuracy:±3.6°F / ±2%
- Storage:512 MB eMMC; up to 8,000 photos
- Battery life:Up to 15 hours
- Durability:IP54; drop-resistant up to 2 meters
Our verdict“Choose the TC004 Mini if portability and long runtime matter more than bench connectivity and larger image storage.”
FOXWELL RT280 Thermal Imaging Camera
The RT280 stands out for documenting inspection work: its 8 GB eMMC storage holds more than 20,000 images and videos, and its Windows PC software supports 2D and 3D analysis plus report generation. For PCB inspection, that gives engineers a useful record for comparing boards or sharing findings, though the listed sensor resolution is more modest than the ShortCam III‘s 256 x 192 infrared sensor. The 2.8-inch screen, laser pointer, LED light, and automatic high/low alerts support handheld checks, while IP54 protection and 6.6-foot drop resistance suit field use. Compared with the TOPDON TC004 Mini, the RT280 offers substantially more storage and analysis tools but is less compact. Its analysis software does not support Mac, and the resolution details are described inconsistently in the supplied specifications.
Pros:- 8 GB eMMC storage holds more than 20,000 images and videos
- Windows software supports 2D and 3D analysis and report generation
- Automatic high/low temperature alerts help flag unusual readings
- IP54 rating and 6.6-foot drop resistance support field use
Cons:- PC analysis software is not compatible with Mac
- Base thermal resolution is moderate compared with more specialized professional options
- Supplied resolution description gives both 320 x 240 and 240 x 180 TISR-enhanced figures
Best for: Electronics service teams that capture many thermal images and need Windows-based analysis and report generation for inspection records.
Not ideal for: Mac users or PCB specialists who prioritize clearly specified native thermal resolution and compact carry size.
- Screen:2.8-inch LCD
- Resolution:320 x 240; TISR-enhanced to 240 x 180 (as listed)
- Field of view:50° x 38°
- Frame rate:25 Hz
- Temperature range:-4°F to 1022°F
- Accuracy:±3.6°F / ±2%
- Storage:8 GB eMMC
- Connectivity:Windows PC compatible; not Mac compatible
- Features:9 color palettes, laser pointer, LED light
Our verdict“Choose the RT280 when inspection records and Windows-based analysis matter more than compact size or a clearly stated high native resolution.”
How We Picked
I ranked these cameras for the practical demands of PCB inspection: resolving small heat patterns, connecting those patterns to visible components, and fitting into a repair or bench workflow. Resolution claims, visual camera availability, image processing, display or phone compatibility, and named inspection features all shaped the comparison. For a board with closely spaced components, more image detail and useful visual context can make a thermal image easier to interpret; a convenient connection method matters more when moving between boards or documenting work.
The order reflects how directly each listed feature supports electronics troubleshooting, balanced against usability and the limits of the available specifications. Cameras with advertised 640×480 super resolution or a dedicated bench display get credit for workflows where detail or viewing comfort matters, while simpler 240×240 models remain appealing for less demanding checks. Features such as AI fusion, edge enhancement, scene detection, and a laser pointer can help with interpretation or targeting, but I do not treat them as substitutes for confirmed close-focus performance, measurement accuracy, or emissivity controls. Where the product information does not establish those details, I avoid making claims about them.
| thermal cameras for pcb inspection | Accuracy |
|---|---|
| HSFTOOLS F2VW Thermal Camera w | — |
| GT16D Thermal Imaging Camera w | ±2% |
| Flagfront YXI96 Thermal Camera | ±2% |
| Thermal Master Thor002 Thermal | ±3.6°F |
| RIS ION Magic Thermal Camera w | ±3.6°F |
| GT14S Thermal Imaging Camera w | — |
| GT14S Thermal Imaging Camera w | — |
| Thermal Master P3 Thermal Came | ±3.6°F (±2°C) |
| HSFTOOLS P2W WiFi Thermal Came | — |
| FOXWELL HT280 Thermal Imaging | ±3.6°F or ±2% |
| ShortCam III PCB Thermal Imagi | — |
| HSFTOOLS HF96 Thermal Imaging | ±3.6°F |
| TOPDON TC004 Mini Thermal Imag | ±3.6°F / ±2% |
| FOXWELL RT280 Thermal Imaging | ±3.6°F / ±2% |
Factors to Consider When Choosing Thermal Cameras For Pcb Inspection
Choosing a thermal camera for electronics work is less about collecting the longest feature list and more about matching the camera to the board, the measurement, and the way you inspect it. I’d decide how small a heat source needs to appear, how you will identify the component behind it, and whether the camera will stay at a bench or travel with you.
Match image detail to component spacing
A thermal image must show enough separate detail for you to tell whether one component is hot or its neighbors are heating too. That distinction matters on dense boards, where a broad warm patch can hide the source of a fault. Compare the stated infrared resolution and check whether a listed figure refers to native resolution or a super-resolution mode; those are not automatically interchangeable. Also look for the camera’s minimum focus distance and field of view, since a high-resolution sensor may still be awkward for close-up board work. A common mistake is choosing by a large resolution number alone without confirming that the camera can frame a small PCB at a useful distance. If you inspect mostly larger components or broad power-related hot spots, a simpler image may be enough.
Plan how you will identify each hot spot
Thermal imaging shows temperature patterns, while a normal image helps connect those patterns to component locations. A built-in visual camera or image-fusion feature can reduce the mental work of matching a hot patch to a resistor, IC, or connector. Before buying, check how the camera combines or saves the two views and whether the result remains readable at board scale. Avoid assuming that AI or edge enhancement will identify a failed component; those features may change how an image is presented without proving the cause of heating. For repeat repairs, clear visual context can also make notes and reports easier to understand later. For quick screening, a simple overlay may matter more than advanced analysis.
Check measurement controls before relying on temperatures
Finding a warm area and reporting a dependable temperature are different jobs. PCB surfaces vary in emissivity, and shiny metal, solder, and reflective shields can produce readings that do not match the actual surface temperature. Check whether the camera offers emissivity adjustment, reflected-temperature settings, and measurement tools such as spot or area readings. If the product information does not clearly state these controls, treat temperature figures as clues for comparison rather than lab-grade values. A frequent mistake is comparing readings from different materials or viewing angles as if they were equally reliable. For component diagnosis, repeatable conditions and a consistent method can matter as much as the camera’s headline resolution.
Choose a workflow that fits your bench
A phone-connected camera can be compact and convenient if your inspection notes, screenshots, and other tools already live on a mobile device. A handheld unit with its own screen can be easier to pick up for quick checks and avoids tying up a phone during a repair. A display-oriented setup may suit a fixed bench where several people need to see the same image. Think through cable or wireless connections, app and operating-system compatibility, image export, and whether you need to capture stills or video. Do not judge a workflow by portability alone: small phone screens can make fine board details harder to inspect, while a larger setup takes bench space. Pick the form that makes repeat inspections straightforward.
Pay for features that solve a real inspection problem
Advanced fusion, edge enhancement, scene detection, and targeting aids can make an image easier to read or help you aim consistently. They are most useful when they address a recurring bottleneck in your work, such as distinguishing board features or documenting many similar inspections. They cannot compensate for poor focus, insufficient close-up detail, or unverified measurement controls. Before paying for extra processing, ask whether the camera lets you view an unprocessed thermal image and save the result in a format your workflow can use. For occasional troubleshooting, a clear image and practical handling may be more valuable than a long list of modes. For a production or repair bench, time saved on repeat tasks may justify specialized features.
Frequently Asked Questions
Is 240×240 infrared resolution enough to inspect a PCB?
It can be enough for locating larger hot components or checking broad temperature patterns, especially on less crowded boards. Small packages and closely spaced parts are harder to distinguish when they occupy only a few pixels. Compare the camera’s focus distance and field of view alongside resolution, because those determine how much of the board fills the image. If you need to separate adjacent components, a higher-detail option such as one advertising 640×480 super resolution may be a better starting point. Treat that specification as one part of the choice, not a guarantee of close-up clarity.
Does super resolution mean a camera will show tiny components clearly?
Not by itself. A super-resolution figure may describe image processing rather than the sensor’s native pixel count, and the final result also depends on focus, optics, distance, and image quality. For PCB work, verify the minimum focus distance and look for sample images taken at a comparable scale if available. A visually sharper image can help you locate a hot region, but it does not establish measurement accuracy. I would compare the full imaging setup rather than choose from the resolution label alone.
Can I trust a thermal camera’s temperature reading on solder or metal?
Use extra care with shiny surfaces: their reflectivity can make infrared readings misleading. A camera with emissivity and reflected-temperature adjustments gives you more control, but the setup still needs a consistent method. For small solder joints, the camera may also average the target with surrounding pixels, which can distort the apparent temperature. If a reading will guide a consequential repair decision, cross-check it with an appropriate contact probe or another measurement method. Thermal images are particularly useful for spotting relative patterns, even when an absolute reading needs verification.
Should I get a phone-connected thermal camera or a handheld model?
Choose a phone-connected option if mobile capture, sharing, and storage are central to your inspection routine and your phone is compatible. A handheld model can be more convenient for repeated spot checks because it has a dedicated form and does not rely on a phone app or battery. A fixed bench may favor a display-based workflow if you need a larger shared view. Check how images export and whether the software preserves useful thermal and visual context. The right choice depends on where you inspect and how you keep records, not just which format is smaller.
Which features matter most for comparing a board before and after repair?
Repeatability matters: use the same camera position, distance, operating state, and measurement settings so the two images can be compared fairly. Emissivity adjustment and saved measurement settings can help when readings need to be more than visual clues. Clear still-image capture and easy export are useful for keeping a repair record. Fusion or a visual camera can make the component location easier to identify in each image, but it does not standardize the thermal conditions. If your main goal is before-and-after comparison, prioritize consistent setup and image retention over extra scene analysis modes.
Conclusion
For most electronics repair benches, I’d choose the HSFTOOLS F2VW as the best overall because its listed 640×480 super resolution and visual camera address both image detail and component identification. The GT16D is my best value-style pick for straightforward checks where 240×240 resolution and a visual camera fit the job; buyers seeking stronger value should still compare its verified specifications and included workflow details. For a premium bench setup, the ShortCam III’s 4K HDMI display is the most distinct fit in this lineup, while the P2W is worth a look if its 8MP visual camera and WiFi match your documentation routine. Beginners may prefer a camera with a visual view and a simple standalone or phone workflow, such as the GT16D or Thermal Master P3, after confirming compatibility and controls. For specialized needs, the RISION Magic targets AI bispectral fusion, the HF96 adds scene detection and a laser pointer, and the GT14S Edge Enhancement is the variant to compare when image processing matters. Match the pick to board density and measurement needs, then verify close-focus and temperature-control specifications before committing.
