If you’re looking for the 15 best microwave signal generators for precise measurements in 2025, I recommend options like the Seesii DDS with LCD display, ADF5355 PLL modules, and DIY kits like XR2206. High-end models offer frequency stability up to 13.6GHz, advanced modulation, and easy controls, perfect for professional labs or detailed hobby projects. For a complete overview and to find the right fit for your needs, stay tuned — you’ll discover top choices tailored for every application.
Key Takeaways
- High-frequency range and stability ensure accurate measurements up to 60GHz or more for advanced applications.
- Multiple modulation options like FM, 2-FSK, and arbitrary waveforms facilitate versatile testing scenarios.
- Precise control features such as onboard DDS, external clock input, and programmable output enhance measurement accuracy.
- Compact, portable designs and integration options support field testing and automated test setups.
- Low phase noise, high resolution, and stability are critical for achieving precise and reliable measurements in 2025.
Seesii DDS Signal Generator with LCD Display
If you’re looking for a versatile and affordable microwave signal generator, the Seesii DDS Signal Generator with LCD Display is an excellent choice. I appreciate its high precision, supporting signals up to 60MHz with a 200MSa/s sampling rate. The dual-channel design lets me generate independent waveforms like sine, square, and noise, perfect for testing or research. Its ability to store 99 user settings and 60 waveform presets makes switching between tests quick and easy. The device’s compact size and LCD display provide clear control and readouts, though some find the interface less intuitive. Overall, it offers excellent value for hobbyists and professionals needing reliable, customizable signal generation.
Best For: hobbyists, students, and electronics professionals seeking a versatile, affordable, and reliable signal generator for testing, research, and educational purposes.
Pros:
- Supports high-precision signals up to 60MHz with a 200MSa/s sampling rate for accurate waveform generation
- Dual-channel design allows independent waveform creation, including sine, square, noise, and user-defined types
- Stores up to 99 user settings and 60 waveform presets for quick access and flexible testing
Cons:
- Interface and operation can be less intuitive, requiring multiple button presses and cursor navigation
- Lightweight design may cause stability issues during use, necessitating securing the device
- Some users report minor inaccuracies in measurement functions and occasional feature loss or overshoot in waveforms

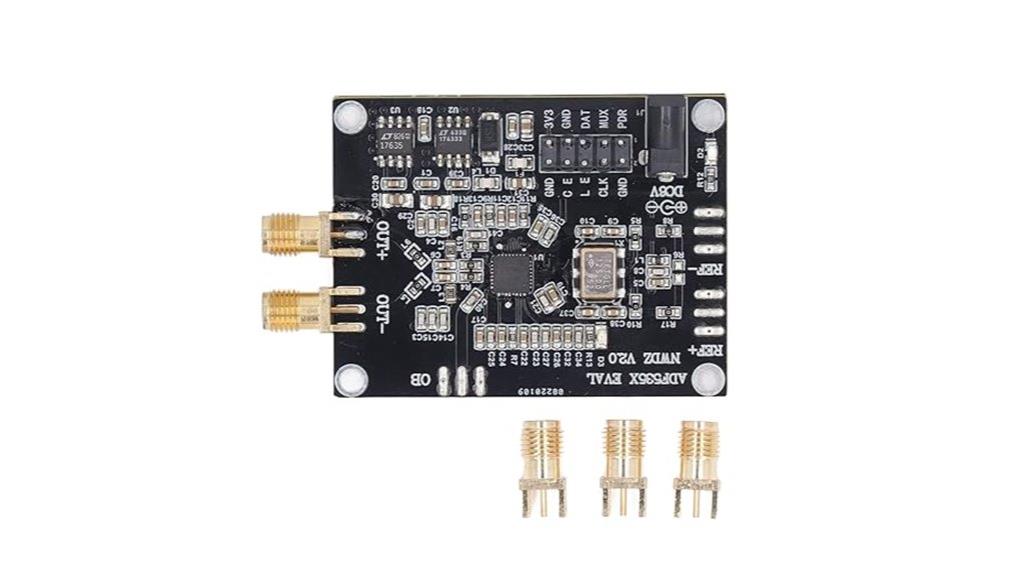

ADF5355 RF Signal Generator Module, 54M to 13.6GHz PLL Development Board
The ADF5355 RF Signal Generator Module stands out for professionals needing wide-range, high-precision frequency synthesis from 54 MHz up to 13.6 GHz. It supports fractional N and integer N division, providing flexible frequency generation with a high-resolution 38-bit modulo. The module features a low noise LDO regulator, ensuring clean power and minimal spurious signals, while a differential crystal enhances signal integrity. Its external clock interface allows custom frequency setups, maintaining stable locking. With programmable output power, muting, and lockout detection, this development board offers versatile control for demanding RF and microwave applications, making it ideal for test, communication, and instrumentation tasks.
Best For: RF engineers and professionals requiring wide-range, high-precision frequency synthesis for wireless infrastructure, satellite systems, and test equipment.
Pros:
- Supports a broad frequency range from 54 MHz to 13.6 GHz for versatile applications
- Features low noise LDO regulator and differential crystal for high signal integrity
- Offers flexible external clock input and programmable control options for customized operation
Cons:
- Complex setup may require advanced technical knowledge for optimal use
- Potentially higher cost due to high-performance components and features
- Size and power requirements might be less suitable for portable or compact systems
Signal Generator Kit, XR2206 Function Signal Generator DIY Kit
For hobbyists and students seeking an affordable yet versatile signal source, the XR2206 Function Signal Generator DIY Kit stands out as an ideal choice. It features a simple assembly with a transparent case, making it perfect for learning and experimentation. The kit offers adjustable frequencies from 1Hz to 1MHz and supports sine, triangle, and square wave outputs. Powered by 9-12V DC, it delivers high precision with low distortion and excellent flatness across a wide range. Whether for testing, debugging, or educational projects, this compact DIY kit provides reliable and accurate signals, making it a valuable tool for electronics enthusiasts.
Best For: hobbyists, students, and electronics enthusiasts seeking an affordable, versatile, and easy-to-assemble signal generator for testing, debugging, and educational purposes.
Pros:
- Supports adjustable frequency range from 1Hz to 1MHz for versatile applications
- Supports multiple waveforms—sine, triangle, and square—for comprehensive testing
- Compact design with transparent case for easy assembly and observation
Cons:
- Limited to a maximum amplitude of 3V at 9V DC power supply
- Distortion below 1% only at 1KHz, which may not suit high-precision needs
- Requires basic soldering and assembly skills, which may challenge beginners

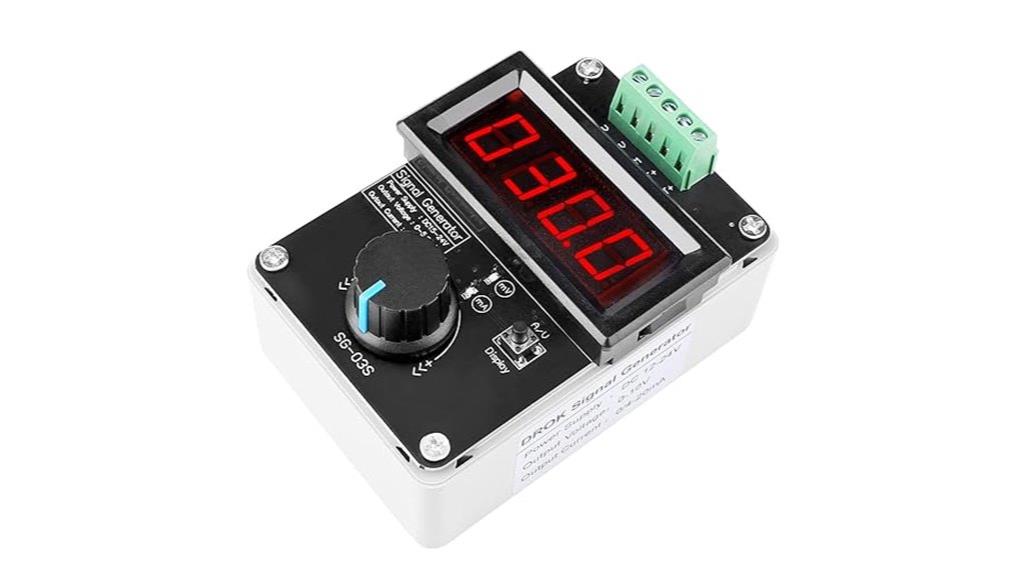

DROK 4-20mA Signal Generator for PLC Testing
The DROK 4-20mA Signal Generator excels at providing adjustable current signals essential for testing PLC inputs and automation components. It produces 4-20mA current or 0-10V voltage signals with a single, compact device controlled by a multi-turn potentiometer. The built-in display shows real-time voltage or current, making monitoring straightforward. Its portability allows use on the benchtop or in the field, powered by 24VDC or two 9V batteries. While calibration is needed for accuracy and its ruggedness is limited, it’s a cost-effective tool for basic sensor simulation, troubleshooting, and preliminary testing in controlled environments.
Best For: DIY enthusiasts, technicians, and engineers seeking an affordable, portable tool for basic sensor testing and PLC troubleshooting in controlled environments.
Pros:
- Compact and lightweight for easy benchtop or field use
- Adjustable output with real-time display for monitoring signals
- Cost-effective solution suitable for basic testing and calibration
Cons:
- Limited ruggedness and fragile construction unsuitable for harsh environments
- Requires calibration for accurate readings, especially in current mode
- No internal battery power, making portable field use less practical

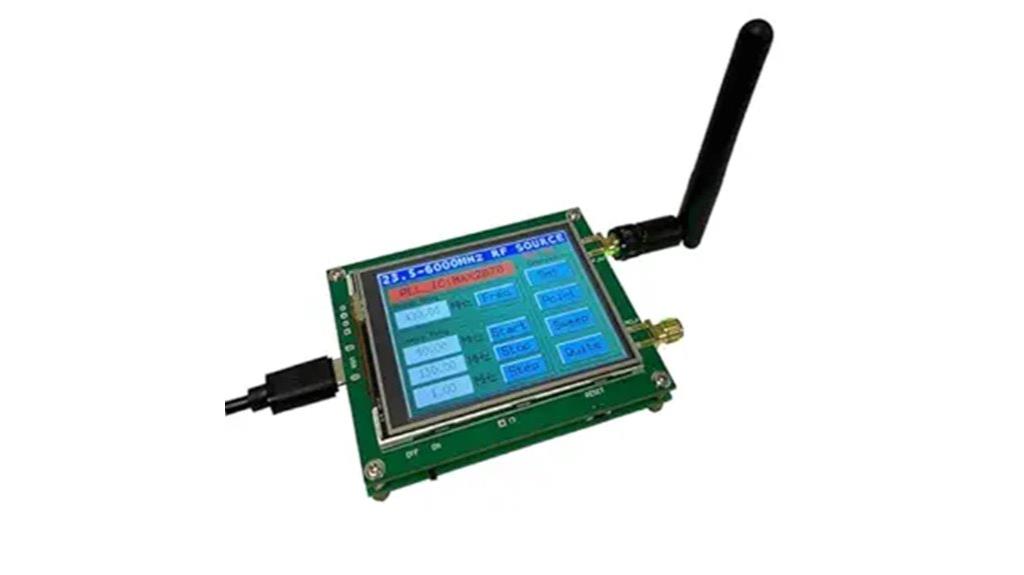

Upgraded MAX2870 RF Signal Generator (23~6000MHz) with Touch Screen
If you need a versatile RF signal generator that combines wide frequency coverage with intuitive control, the upgraded MAX2870 with a touch screen stands out. Covering 23.5 MHz to 6 GHz, it offers single and sweep modes, all managed via a user-friendly 2.8-inch LCD touchscreen. It features automatic data saving, restoring previous settings after power failures, and provides a frequency resolution of 10 kHz with sweep intervals as low as 1 ms. Powered by a Type-C USB, it’s portable and easy to operate. Despite some limitations like output power decline at higher frequencies and calibration challenges, it’s ideal for RF projects, amateur radio, and precise testing.
Best For: hobbyists, amateur radio enthusiasts, and RF project builders seeking an affordable, portable, and user-friendly RF signal generator with wide frequency coverage and precise control.
Pros:
- Wide frequency range from 23.5 MHz to 6 GHz suitable for diverse RF applications
- Intuitive 2.8-inch touchscreen for easy operation and mode selection
- Automatic data saving and restore feature enhances user convenience and operational reliability
Cons:
- Output power declines significantly at higher frequencies, limiting certain applications
- Calibration and documentation are sometimes inconsistent, requiring user adjustment
- Some units may experience hardware issues such as initial power-on failures or unresponsive controls
Generic Signal Generator (TAG-101)
The TAG-101 Low Frequency Signal Generator stands out as an excellent choice for technicians and enthusiasts seeking reliable, versatile signal generation within the 10Hz to 1MHz range. It offers sine and square wave outputs with precise control, suitable for testing, maintenance, and production tasks. With a sine wave output of up to 6V RMS and distortion below 0.5%, it provides clean signals for accurate measurements. The device features adjustable levels, sync terminals for external control, and an accuracy of ±5%. Compact and easy to operate, the TAG-101 delivers dependable performance at an affordable price, making it a practical tool for various low-frequency applications.
Best For: hobbyists, technicians, and engineers needing reliable low-frequency signal generation for testing, maintenance, and production tasks within the 10Hz to 1MHz range.
Pros:
- Offers precise sine and square wave outputs with adjustable levels for versatile testing.
- Compact, easy to operate, and affordable, making it accessible for various users.
- External sync terminals allow for synchronization with other equipment, enhancing functionality.
Cons:
- Accuracy is limited to ±5%, which may not be sufficient for highly precise applications.
- Output waveform distortion can reach up to 0.5%, potentially affecting sensitive measurements.
- The power supply is limited to AC 110V, which may require adapters for use in different regions.
Seesii DDS Signal Generator (1Hz-500kHz)
For professionals seeking a compact yet versatile signal source, the Seesii DDS Signal Generator (1Hz–500kHz) stands out with its wide frequency range and multiple waveform options. It’s small, portable, and easy to operate, making it perfect for testing and debugging electronic circuits. You can generate sine, square, triangle, or sawtooth waves, with adjustable filters to customize the output. Powered via USB, it doesn’t need batteries or external adapters. This generator is ideal for measuring audio amplifier responses, impulse responses, and calibrating oscilloscopes. Its precise, user-friendly design makes it a valuable tool for any professional working on circuit analysis and calibration.
Best For: professional engineers and technicians needing a portable, versatile signal generator for circuit testing, debugging, and calibration.
Pros:
- Wide frequency range of 1Hz to 500kHz for diverse testing needs
- Multiple waveform options including sine, square, triangle, and sawtooth for comprehensive analysis
- USB-powered design eliminates the need for batteries or external power sources
Cons:
- Limited frequency range may not suit high-frequency RF applications
- Small size might make handling or adjustments less comfortable for some users
- No mention of advanced features like modulation or external sync options
Audio Signal Generator ECUTEE Low Frequency Signal Generator 10Hz-1MHz
When seeking an affordable and straightforward low-frequency signal source, the Audio Signal Generator ECUTEE TAG-101 stands out with its wide 10Hz to 1MHz range. It features sine and square waveforms, with a compact vertical panel design that’s easy to operate. Built from durable, wear-resistant materials, it offers reliable performance for various testing needs. The generator provides over 5Vrms sine wave output, adjustable via a 6-step attenuator. While its frequency dial has some inaccuracy and calibration may require external tools, it’s ideal for hobbyist testing, speaker analysis, and waveform observation, offering a practical solution without breaking the bank.
Best For: hobbyists and entry-level technicians seeking an affordable, easy-to-use low-frequency signal generator for basic testing and waveform observation.
Pros:
- Wide frequency range of 10Hz to 1MHz suitable for various testing scenarios
- Durable construction with wear-resistant materials ensures long-term reliability
- Compact vertical panel design offers ease of operation and quick adjustments
Cons:
- Frequency dial calibration can be inaccurate, requiring external verification tools
- Square wave output quality is subpar, limiting its use for certain applications
- Limited maximum output power and some build quality concerns may affect precision and durability
DROK Signal Generator 2pcs, DC 3.3-30V Signal Generator with LCD Display
If you’re seeking a reliable, versatile signal generator for experimental development and circuit testing, the DROK Signal Generator 2pcs stands out with its adjustable output voltage and frequency range. It operates from DC 3.3V to 30V and covers frequencies from 1Hz to 150kHz, making it suitable for various applications like motor testing and MCU pulse generation. The LCD display offers real-time monitoring of frequency and duty cycle, while automatic range switching guarantees high precision. With separate controls for frequency and duty cycle, plus TTL serial communication and data retention, this set provides consistent, accurate signals for diverse electronic projects.
Best For: electronics hobbyists, engineers, and developers needing a versatile signal generator for testing, circuit development, and experimental projects.
Pros:
- Wide frequency range (1Hz-150kHz) with automatic high-precision switching
- Adjustable voltage (DC 3.3V-30V), duty cycle, and output current for customizable signals
- LCD display provides real-time monitoring and all settings are automatically saved
Cons:
- Limited output current (5-30mA), which may not suit high-current applications
- Requires separate controls for frequency and duty cycle, potentially less intuitive for some users
- Only supports TTL serial communication, which may need additional interfacing for complex integrations

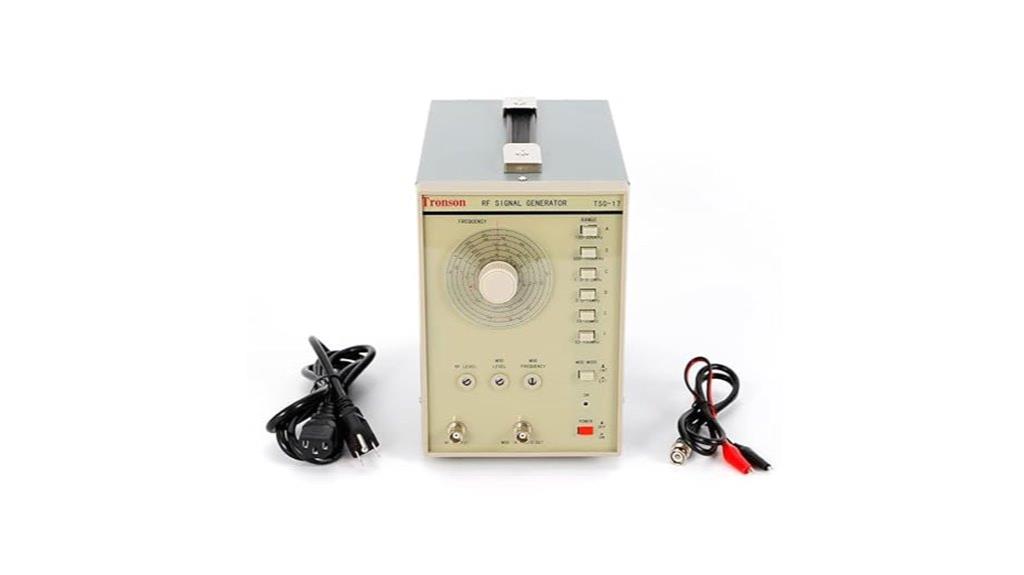

Signal Generator TSG-17 RF Signal Generator 100kHz-150MHz
The Signal Generator TSG-17 RF Signal Generator 100kHz-150MHz stands out as an ideal choice for hobbyists and light professional users seeking versatile testing capabilities. It covers a broad frequency range from 100 kHz to 150 MHz, with harmonics up to 450 MHz, making it suitable for various RF projects. The device offers sine and amplitude modulation, with adjustable output levels and external modulation signals between 50 Hz and 20 kHz. Built with imported Japanese components, it ensures reliable performance. While not designed for high-precision tasks, it provides stable output for tuning, testing, and educational purposes at an affordable price point.
Best For: hobbyists and light professional users looking for an affordable, versatile RF signal generator for basic testing and educational purposes.
Pros:
- Broad frequency range from 100 kHz to 150 MHz suitable for various RF projects
- Built with imported Japanese components ensuring reliable performance
- Easy to operate with user-friendly controls and adjustable modulation features
Cons:
- Limited tuning resolution and lack of precision for detailed laboratory work
- Internal build quality may not withstand heavy, continuous use
- Calibration might require minor adjustments and some units may arrive with minor defects
UCTRONICS Voltage and Current Signal Generator for PLC Testing
The UCTRONICS Voltage and Current Signal Generator stands out as an ideal choice for technicians and engineers who need precise simulation of industrial signals during PLC testing and device calibration. Compact and portable, it offers adjustable DC voltage (±10V) and current (0-22mA) outputs with 0.01V and 0.01mA precision. Its versatile display allows switching between voltage, current, percentage, or frequency, making it adaptable to various testing scenarios. Powered via micro USB or DC, it’s easy to use for calibrating signal conditioners, control valves, or transducers. Overall, it provides reliable, cost-effective performance for accurate simulation and calibration tasks in industrial environments.
Best For: technicians and engineers needing precise simulation and calibration of industrial signals for PLC testing and device troubleshooting.
Pros:
- High-precision output with 0.01V and 0.01mA calibration accuracy
- Compact, portable design suitable for on-the-go testing
- Versatile display options for voltage, current, percentage, or frequency
Cons:
- No internal battery; requires external power sources such as micro USB or DC supply
- Manual calibration process may lack detailed instructions for some users
- Limited to specific signal ranges; not suitable for high-voltage or high-current applications
NI PXI-5652 RF and Microwave Signal Generator with Modulation
Designed for versatile testing scenarios, the NI PXI-5652 RF and Microwave Signal Generator stands out with its onboard direct digital synthesis (DDS), enabling precise frequency control and seamless modulation. Its compact PXI format allows easy integration into modular test setups for device characterization and fixture testing. Supporting CW, FM, 2-FSK, and on-off keying (OOK) modulation, it offers flexible analog and digital modulation options. The DDS facilitates high-resolution frequency hopping and phase-continuous sweeping, making it suitable for applications like WCDMA and advanced communications. Overall, it provides fine-tuned control and reliable signal generation for complex RF and microwave testing.
Best For: engineers and technicians needing precise, flexible RF/microwave signal generation for device testing, calibration, and development in modular PXI test environments.
Pros:
- Supports multiple modulation types including CW, FM, 2-FSK, and OOK for versatile testing.
- Onboard DDS enables high-resolution frequency hopping and phase-continuous sweeping.
- Compact PXI format allows seamless integration into modular test setups, enhancing efficiency.
Cons:
- May require specialized training to fully utilize advanced modulation capabilities.
- Limited to frequencies up to 6.6 GHz, which might not suit ultra-high-frequency applications.
- Cost could be a consideration for smaller labs or organizations with budget constraints.
Koolertron DDS Signal Generator Counter (15MHz)
For those seeking a versatile and cost-effective signal generator, the Koolertron DDS Signal Generator Counter (15MHz) stands out with its dual-channel arbitrary waveform generation and high frequency measurement accuracy. It features a large FPGA and high-speed MCU for stable signals, plus an intuitive UI and bright display. The device covers up to 15MHz for sine, square, and triangle waves, with precise frequency resolution and adjustable duty cycles. Its portability is a plus, though lightweight design can cause stability issues during use. It’s suitable for general testing, troubleshooting, and educational purposes, offering a good balance of features and affordability despite some control quirks.
Best For: hobbyists, students, and engineers seeking an affordable, versatile signal generator for general testing, troubleshooting, and educational applications.
Pros:
- Offers dual-channel arbitrary waveform generation and high-frequency measurement capabilities.
- Compact, lightweight, and portable design with an intuitive interface and bright display.
- Provides high accuracy and stability suitable for most non-laboratory testing scenarios.
Cons:
- Lightweight build can cause stability issues unless secured during operation.
- Controls and default settings may be unconventional, requiring manual adjustments.
- Lacks RMS voltage display and is not suitable for low-distortion, precision measurements.

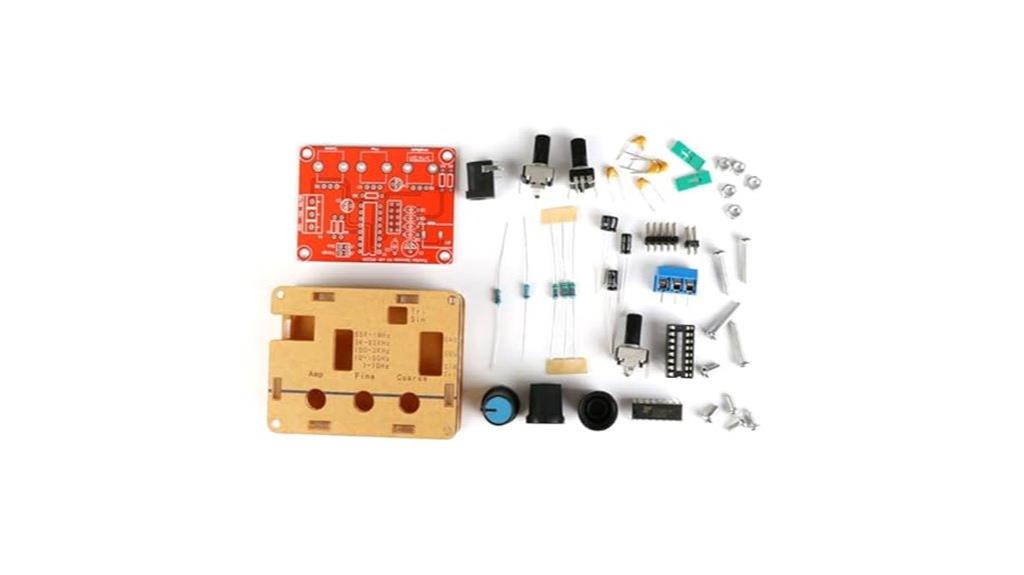

High Precision Signal Generator DIY Kit XR2206
If you’re looking for a reliable DIY solution to generate precise signals, the High Precision Signal Generator DIY Kit XR2206 stands out with its extensive waveform options and fine frequency control. It produces sine, triangular, and square waves suitable for testing and experimentation. With a frequency range from 1Hz to 1MHz and five-bit resolution, it offers high accuracy through coarse and fine tuning. The amplitude is adjustable, and it can operate on a 9-12V DC supply or 9V batteries, with support for external sources. Its simple design and minimal components make assembly straightforward, making it ideal for DIY enthusiasts seeking versatility and precision.
Best For: DIY electronics enthusiasts and engineers seeking a versatile, precise signal generator for testing and experimentation.
Pros:
- Wide frequency range from 1Hz to 1MHz with high accuracy due to five-bit fine tuning
- Supports multiple waveforms including sine, triangular, and square waves for diverse applications
- Compact design with minimal components simplifies assembly and debugging
Cons:
- Requires a 9-12V power supply or batteries, which may limit portability in some cases
- Assembly may be challenging for complete beginners without prior experience in DIY kits
- Limited to frequencies up to 1MHz, which might not suit high-frequency testing needs
Goupchn Programmable DDS Signal Generator (60MHz)
The Goupchn Programmable DDS Signal Generator (60MHz) stands out as an excellent choice for hobbyists and professionals seeking versatile, precise signal generation. It offers dual-channel arbitrary waveform output up to 60MHz, supporting sine, square, triangle, and custom waveforms. The device can be remotely controlled via smartphone app, making operation flexible. External voltage signals allow for frequency, amplitude, and duty cycle modulation, ideal for industrial debugging. Its user-friendly design, lightweight build, and core features make it suitable for RF testing, audio applications, and research. While some limitations exist, like waveform quality at higher frequencies, the PSG9060 provides excellent value for both amateur and professional users.
Best For: hobbyists and RF professionals seeking a versatile, precise, and user-friendly signal generator for testing, research, and industrial debugging.
Pros:
- Supports dual-channel arbitrary waveform generation up to 60MHz with multiple waveform types
- Remote control via smartphone app adds convenience and flexibility
- External voltage control enables advanced modulation for complex signal testing
Cons:
- Waveform quality may degrade at higher frequencies, such as 80MHz square waves not being perfectly square
- Some users experience hardware reliability issues and firmware update challenges
- External modulation can reset or turn off during parameter adjustments, which may be inconvenient
Factors to Consider When Choosing Signal Generators Microwave
When selecting a microwave signal generator, I focus on key factors like frequency range, stability, and modulation options to meet my specific needs. I also consider output power levels and how easy it is to operate the device, ensuring it fits seamlessly into my workflow. Understanding these points helps me choose a generator that delivers precise, reliable performance.
Frequency Range Capabilities
Choosing a microwave signal generator requires careful attention to its frequency range, as this determines whether it can effectively test and calibrate the components you work with. Most generators cover from about 1 GHz to over 40 GHz, depending on application needs. Higher frequency capabilities are indispensable for testing microwave and millimeter-wave components used in radar, satellite, and wireless systems. It’s important that the generator can produce stable, precise signals across its entire range, guaranteeing accurate calibration and testing. Some advanced models support frequency sweeping and modulation over their full spectrum, which is vital for spectrum analysis and signal integrity checks. When selecting a generator, make sure its maximum frequency exceeds the operational frequencies of your components to guarantee compatibility and peak performance.
Signal Stability and Accuracy
Ensuring consistent and precise measurements depends heavily on a signal generator’s stability and accuracy. Stability means the generator’s ability to keep a steady output frequency and amplitude over time, which is crucial for reliable testing. Accuracy reflects how closely the generated signal matches the specified parameters, often measured in parts per million (ppm). High-quality devices use temperature-compensated components and low phase noise designs to minimize drift and fluctuations. Regular calibration against a known reference standard helps verify and maintain both stability and accuracy. Keep in mind, factors like power supply quality, environmental conditions, and internal aging can influence performance over time. Selecting a generator with robust stability and high accuracy ensures dependable results in your precise microwave measurements.
Modulation Options Offered
Modulation options considerably expand the capabilities of microwave signal generators, making them more adaptable for diverse testing needs. With amplitude, frequency, phase, and pulse modulation, I can simulate a wide range of signals, essential for testing modern communication systems. The availability of both analog and digital modulation modes, like FSK, PSK, and QAM, allows for complex signal shaping and accurate protocol emulation. Some generators also offer external modulation inputs, enabling me to integrate external signals for advanced testing and calibration. The level of modulation depth and bandwidth control directly affects the precision of the generated signals, impacting the reliability of measurements. Overall, versatile modulation features ensure the generator can meet specific requirements across different applications, from basic testing to sophisticated wireless protocol analysis.
Output Power Levels
How much output power a microwave signal generator can deliver plays a essential role in meeting different testing needs. The power levels typically range from -20 dBm to +20 dBm, depending on the application. Higher output power is critical for long-distance transmission and antenna testing, ensuring signals reach their target effectively. Conversely, lower power levels are suitable for sensitive receiver testing, preventing damage or distortion. Many generators offer adjustable power settings, allowing precise control to match specific testing scenarios. However, it’s important to avoid excessively high power, which can cause signal distortion or harm delicate equipment. Knowing the exact output power helps with accurate calibration, system integration, and compliance with regulatory standards. Selecting a generator with appropriate power levels ensures reliable, safe, and efficient measurements.
Ease of Operation
Choosing a microwave signal generator that’s easy to operate can considerably streamline your testing process. Devices with intuitive interfaces and clear controls allow for quick setup and adjustments, minimizing operator errors. Digital displays, touchscreens, or well-organized button layouts make browsing functions straightforward, saving valuable time. Programmable presets and memory storage let you recall complex configurations instantly, reducing manual re-entry. Simplified calibration procedures and external controls, like rotary encoders or dedicated knobs, facilitate precise fine-tuning with minimal effort. Additionally, compact, lightweight designs with minimal button complexity help prevent accidental adjustments, making operation accessible for users of varying experience levels. Overall, prioritizing ease of operation ensures smoother workflows, reduces training time, and enhances measurement accuracy in your testing environment.
Frequently Asked Questions
How Do Different Signal Generators Compare in Frequency Stability?
Different signal generators vary markedly in frequency stability, which directly impacts measurement precision. I’ve found that high-end models offer exceptional stability, often using oven-controlled oscillators or atomic references for minimal drift. Mid-range options provide decent stability but can fluctuate more over temperature or time. When choosing, I always consider the stability specs carefully, as even small differences can make a big impact on your results.
What Are the Key Features for Portability in Microwave Signal Generators?
Portability in microwave signal generators hinges on several key features. I look for lightweight design, compact form factors, and battery operation for true mobility. Rugged construction ensures durability in different environments, while integrated controls minimize external equipment needs. Easy connectivity options like USB or wireless links also matter, so I can quickly set up and adapt in the field. These features make my work efficient without sacrificing precision or reliability.
How Do Modulation Capabilities Vary Among These Models?
Modulation capabilities differ quite a bit among these models. Some offer advanced options like amplitude, frequency, and phase modulation, giving me flexibility for complex testing. Others focus on basic digital or analog modulation, which works for simpler tasks. I look for models that let me customize modulation parameters easily, ensuring precise signal control for my experiments. Overall, higher-end generators provide more sophisticated modulation features, making them ideal for detailed measurements.
What Maintenance Is Required for Long-Term Accuracy?
To maintain long-term accuracy, I regularly calibrate my microwave signal generator with traceable standards, guaranteeing consistent performance. I also keep it clean, check for loose connections, and avoid extreme temperatures or humidity that could affect its function. Additionally, I follow the manufacturer’s recommended maintenance schedule, such as replacing worn components and updating firmware, to ensure reliable measurements over time.
How Do Pricing and Warranty Options Differ Across Brands?
Pricing varies widely across brands, reflecting features, accuracy, and durability, while warranty options differ in length and coverage. I find that premium brands often offer longer warranties and better support, but they come with higher prices. Budget options may save you money upfront but might lack extensive warranty coverage. I recommend comparing brands carefully, considering both cost and warranty to find the best fit for your needs and budget.
Conclusion
Think of choosing a microwave signal generator like selecting the right compass for an adventure. Each model points you toward precise measurements and reliable signals, guiding your journey through complex RF landscapes. Whether you need a compact DIY kit or a high-end professional device, the right generator guarantees you stay on course. Trust these tools to navigate your measurement voyage with confidence, turning challenging terrain into a smooth, successful expedition.
