Time domain reflectometers split into two families: copper TDRs that locate faults in coax and twisted-pair cables, and optical TDRs (OTDRs) that map fiber runs. The Megger TDR2050 stands out as my best overall pick for copper work, combining a 20 km range with four testing modes and a distance-dependent cursor that makes fault isolation genuinely quick. For fiber, the Greenlee 930XC-30P triple-wavelength OTDR earns the premium spot because 1310/1550/1625 nm testing catches loss events a dual-wavelength unit will miss, while the budget-friendly Triplett TDR100 covers basic cable length and fault checks for occasional users. The core tradeoff you face is range and connector compatibility versus price and portability — a fault-finder for LAN cabling costs a fraction of a last-mile fiber OTDR. Keep reading for the full breakdown of all 14 models.
Get privacy and security gear delivered free with Prime
- Fast, free delivery on millions of items
- Prime Video, Amazon Music and more included
- Member-only deals all year
Key Takeaways
- Copper TDRs and optical OTDRs are not interchangeable — buying the wrong family makes the tool useless, so match the unit to your medium before anything else.
- Wavelength count separates the fiber picks: the triple-wavelength Greenlee 930XC-30P variants detect 1625 nm in-service testing and macro-bends that dual-wavelength models like the OT4D+ and Mini-Pro cannot isolate.
- Connector type is a hidden cost on the Greenlee line — the same 930XC chassis ships in FC and SC variants, and mismatched connectors mean buying adapters or a different model outright.
- The Megger trio (TDR500, TDR500/3, TDR2050) shows a clear value ladder: the base TDR500 handles short runs cheaply, while the TDR2050’s 20 km range and extra modes justify the jump for utility and telecom work.
- Touchscreen convenience, seen on the OT4D+ and Mini-Pro, trades away glove-friendly operation — field technicians working outdoors in cold conditions may prefer the button-driven Megger units.
| Greenlee 930XC-20C-UPC-SC Dual Wavelength Single Mode Optical Time Domain Reflectometer |  | Best Overall Fiber OTDR | Fiber Type: Single Mode | Wavelengths: Dual Wavelength | Dynamic Range: Up to 38 dB | VIEW ON AMAZON | See Our Full Breakdown |
| Sonel TDR-420 Time Domain Reflectometer |  | Best for Copper Fault Location | Measurement Ranges: 7, 15, 30, 60, 120, 250, 500 m; 1, 2, 3, 4 km | Max Range: 6000 m | Resolution: Approx. 1% of range | VIEW ON AMAZON | See Our Full Breakdown |
| TDR Cable Tester, Handheld Time Domain Reflectometer Kit (MP780994) |  | Best Value for Structured Cabling | Model: MP780994 | Measurement Type: Time Domain Reflectometer | Resolution: Approximately 0.3 m | VIEW ON AMAZON | See Our Full Breakdown |
| OT4D+ Handheld Optical Time Domain Reflectometer with Touch Screen |  | Best Multipurpose Handheld | Display: 4.3-inch touch screen | OTDR Wavelengths: 1310 nm and 1550 nm | OTDR Dynamic Range: 26 dB at 1310 nm; 24 dB at 1550 nm | VIEW ON AMAZON | See Our Full Breakdown |
| Megger TDR2050 Time Domain Reflectometer, 20 km Range |  | Best Premium Copper TDR | Measurement Range: Up to 20 km (65,000 ft), depending on velocity factor and cable type | Minimum Resolution: 0.1 m (0.3 ft) | Accuracy: ±1% | VIEW ON AMAZON | See Our Full Breakdown |
| Greenlee 930XC-30P Triple Wavelength Single Mode Optical Time Domain Reflectometer |  | Best Optical Pick for Carrier-Grade Fiber Work | Mode: Single mode | Wavelengths: Triple wavelength | Dynamic Range: Up to 38 dB | VIEW ON AMAZON | See Our Full Breakdown |
| Greenlee 930XC-20C-UPC-FC Dual-Wavelength Single-Mode Optical Time-Domain Reflectometer |  | Best Value in the Greenlee Fiber Line | Wavelengths: Dual wavelength | Fiber Mode: Single mode | Dynamic Range: Up to 38 dB | VIEW ON AMAZON | See Our Full Breakdown |
| OFL100 Optical Time-Domain Reflectometer for Last Mile Fiber |  | Best Compact Field OTDR | Weight: Less than 1.1 pounds | Interface: Single-button with Auto Test mode | Included Features: Optical power meter, stabilized laser source, visual fault locator | VIEW ON AMAZON | See Our Full Breakdown |
| Megger TDR500/3 Compact Time Domain Reflectometer |  | Best for Metallic Cable Fault-Finding | Cable Types: Twisted pair, coaxial, parallel conductors | Measurement Ranges: 10, 25, 100, 250, 1000, 2500, 5000 m | Resolution: 1% of range; minimum 0.1 m | VIEW ON AMAZON | See Our Full Breakdown |
| Triplett TDR100 Cable Length Tester and Time Domain Reflectometer |  | Best Budget Pick for Cable Length Verification | Measurement Type: Time Domain Reflectometer (TDR) | Compatible Cables: Coax, LAN, CAT V, power, telephony (2+ insulated metallic elements) | Display: 2.4-inch TFT color | VIEW ON AMAZON | See Our Full Breakdown |
| Greenlee 930XC-30P Triple Wavelength Single Mode Optical Time Domain Reflectometer (SC Connector) |  | Best Premium Pick for Carrier-Grade Fiber Work | Model: 930XC-30P | Connector Type: SC | Cable Type: Fiber Optic (Single Mode) | VIEW ON AMAZON | See Our Full Breakdown |
| Megger TDR500 Time Domain Reflectometer with Backlit LCD |  | Best for Copper Cable Fault Finding | Model: TDR500 | Type: Time Domain Reflectometer (TDR) | Cable Type: Metallic / copper | VIEW ON AMAZON | See Our Full Breakdown |
| D YEDEMC Mini-Pro 1310/1550nm SM OTDR Multi-Function Fiber Optic Tester (YD-3000-UPC) |  | Best Value for FTTx and Access Networks | Model: YD-3000-UPC | Test Wavelength: 1310/1550nm | Test Range: 5 m – 60 km | VIEW ON AMAZON | See Our Full Breakdown |
| Mini-Pro Optical Time Domain Reflectometer (OTDR) Fiber Optic Tester, 1310/1550nm, 3.5-inch Touch Screen |  | Best Compact Pick for Field Portability | Wavelengths: 1310/1550nm | Display: 3.5-inch touch screen | Max Test Range: 80 km | VIEW ON AMAZON | See Our Full Breakdown |
More Details on Our Top Picks
Greenlee 930XC-20C-UPC-SC Dual Wavelength Single Mode Optical Time Domain Reflectometer
Fiber technicians who want one case instead of four will appreciate how the Greenlee 930XC-20C-UPC-SC folds an optical power meter, stable light source, and visual fault locator into the OTDR itself. The 38 dB dynamic range is the standout number here — it lets this unit characterize long single-mode spans that the OT4D+, with its 26 dB ceiling, simply cannot reach. A 1.5 m dead zone means faults close to connectors still show up clearly, which matters when certifying splices at patch panels. BelCore GR196 compliance gives the traces a recognized standing for contractor documentation. Compared with the single-function Sonel TDR-420, this is a certification-grade instrument, not just a fault finder. The tradeoff is complexity: buyers only troubleshooting copper pairs get nothing from this tool, and the interface, while simple for fiber pros, assumes you already speak OTDR.
Pros:- 38 dB dynamic range handles long single-mode spans
- Four tools in one: OTDR, optical power meter, stable light source, visual fault locator
- 1.5 m dead zones expose faults near connectors
- BelCore GR196 compliant for certifiable trace documentation
Cons:- Optical fiber only — useless for copper and coax troubleshooting
- Depth of features exceeds what occasional or casual users need
Best for: Fiber optic contractors and telecom technicians certifying and documenting long single-mode links
Not ideal for: Copper cable installers — this instrument only tests optical fiber, so a metallic-pair TDR like the Megger TDR2050 is the better fit
- Fiber Type:Single Mode
- Wavelengths:Dual Wavelength
- Dynamic Range:Up to 38 dB
- Dead Zones:1.5 m
- Integrated Tools:OPM, SLS, VFL
- Compliance:BelCore GR196
Our verdict“Buy this if you certify single-mode fiber professionally and need long-range reach plus integrated test functions in one unit.”

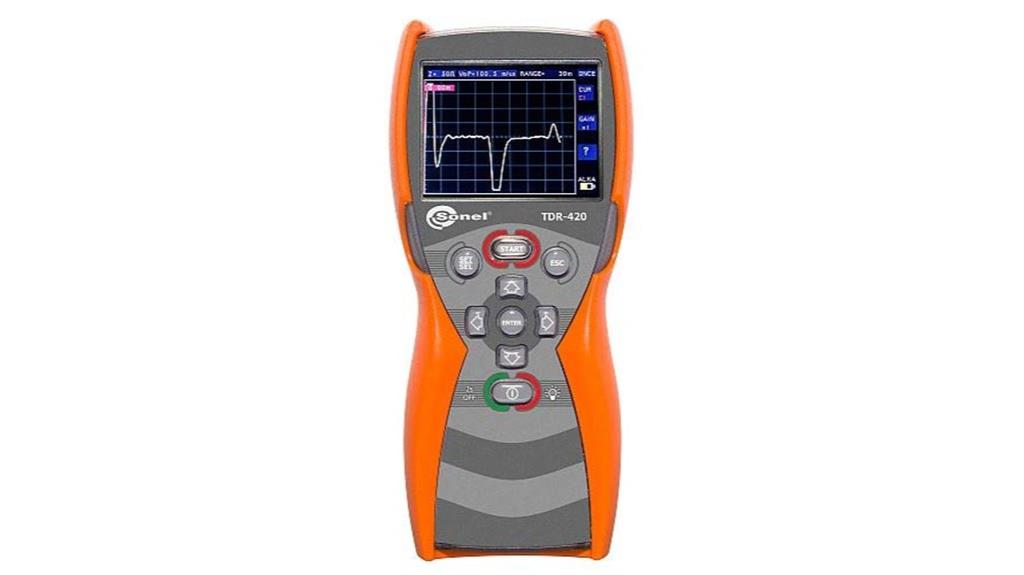

Sonel TDR-420 Time Domain Reflectometer
For pure metallic-cable fault hunting, the Sonel TDR-420 keeps things focused where the Greenlee 930XC spends its capability on fiber. Its selectable output impedance (25, 50, 75, 100 ohms) is the practical differentiator — matching impedance to the cable under test sharpens the trace and improves distance accuracy across twisted pair, coax, and power cable work. The range ladder from 7 m up to 4 km, with a 6000 m capability ceiling, covers most outside-plant fault scenarios, and 1% accuracy puts it in the same precision class as the Megger TDR2050. What it lacks compared with the Megger is dual-channel trace comparison and color display convenience; what it gains over the MP780994 is genuine long-range reach beyond LAN lengths. The built-in 810–1100 Hz tone generator is a nice pairing for pair identification in the field.
Pros:- Selectable 25/50/75/100 ohm output impedance suits multiple cable types
- Range up to 4 km with 6000 m capability for outside-plant work
- 1% accuracy with approximately 1% of range resolution
- Built-in 810-1100 Hz tone generator for pair tracing
Cons:- Single-purpose instrument with no fiber or wiremap functions
- Range tops out well below the Megger TDR2050’s 20 km ceiling
Best for: Telecom and utility technicians locating faults on long paired metallic cables, including PE and TP constructions
Not ideal for: Network installers working structured cabling — its resolution and range are wasted on runs under 100 m, where the MP780994 is more practical
- Measurement Ranges:7, 15, 30, 60, 120, 250, 500 m; 1, 2, 3, 4 km
- Max Range:6000 m
- Resolution:Approx. 1% of range
- Accuracy:1%
- Tone Generator:810-1100 Hz
- Output Impedance:Selectable 25, 50, 75, 100 Ω
- Sensitivity:Min 3 pixel return at 4 km on 0.6mm Ø, PE, TP
Our verdict“This is the right pick for copper-pair fault finding on medium-length outside-plant runs when you want impedance flexibility without paying for dual-channel features.”

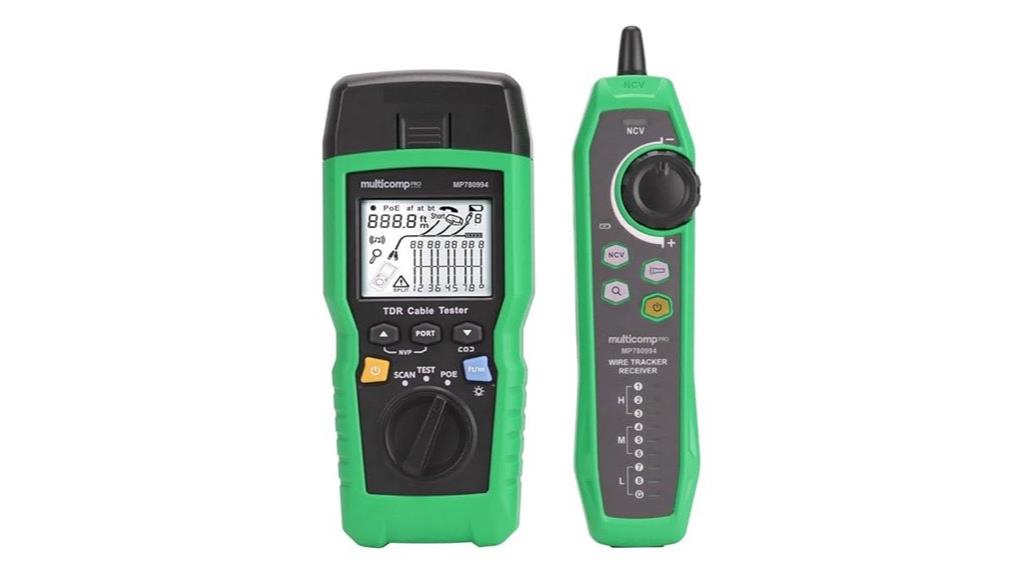

TDR Cable Tester, Handheld Time Domain Reflectometer Kit (MP780994)
Structured-cabling installers on a budget get an unusual amount of diagnosis per dollar from the MP780994. It pairs a genuine TDR with roughly 0.3 m resolution and no blind area against a wiremap, length, and PoE checker covering CAT 5E through CAT 8 plus coax. Seeing wiremap, cable length, and fault location on one screen means one pass down the rack resolves most disputes about a bad patch job. Against the Sonel TDR-420, it trades kilometers of range for resolution and everyday convenience — the right trade for anyone whose cables live inside a building rather than underground. Compared with the Megger TDR2050, there is no trace storage or dual-channel comparison, so it is a diagnostic tool rather than a documentation one. PoE detection across 802.3AF/AT/BT standards is a bonus that saves carrying a separate load tester on activation day.
Pros:- TDR with ~0.3 m resolution and no blind area for precise fault pinpointing
- Broad cable support from CAT 5E to CAT 8 plus coaxial
- PoE detection across 802.3AF/AT/BT standards
- Simultaneous display of wiremap, length, and fault location
Cons:- Limited to LAN-scale cable lengths, not long outside runs
- No trace storage or comparison for documentation-heavy workflows
Best for: Network installers and IT support teams verifying structured cabling runs, wiremap integrity, and PoE delivery in buildings
Not ideal for: Outside-plant and telecom crews — its range targets LAN-length cables, not the multi-kilometer spans the Sonel TDR-420 handles
- Model:MP780994
- Measurement Type:Time Domain Reflectometer
- Resolution:Approximately 0.3 m
- Supported Cables:CAT 5E, CAT 6, CAT 6A, CAT 8, twisted pair, coaxial
- PoE Standards:802.3AF, 802.3AT, 802.3BT
- Protection:Input protection, auto power off, no blind area
Our verdict“If your workday is patch panels and horizontal runs rather than buried cable, this kit covers nearly every copper check you need at a fraction of pro-OTDR cost.”
OT4D+ Handheld Optical Time Domain Reflectometer with Touch Screen
The OT4D+ is the Swiss-army option for fiber work: OTDR, optical power meter calibrated at six wavelengths, visual fault locator to 8 km, light source with five modulation modes, optical loss testing, and even RJ45 cable tracing for the copper side of a job. The 4.3-inch touch screen with Quick Setup mode lowers the barrier for occasional users in a way the Greenlee 930XC’s more traditional workflow does not. The catch is reach: with 26 dB at 1310 nm and 24 dB at 1550 nm, its dynamic range sits far below the Greenlee’s 38 dB, so metropolitan and long-haul spans will outrun it. For premises fiber, FTTx drops, and last-mile runs, that limitation rarely bites. Compared with the OFL100, its broader toolset and touch interface make it the more versatile everyday carry for mixed-environment technicians.
Pros:- Six functions combined: OTDR, OPM, VFL, light source, loss test, RJ45 tracing
- Touch screen with Quick Setup mode simplifies configuration
- Power meter calibrated at six wavelengths from 850 to 1625 nm
- VFL reach of 8 km covers most premises fault locating
Cons:- OTDR dynamic range of 24-26 dB limits use on long spans
- Restricted to 1310/1550 nm — no third wavelength for advanced analysis
Best for: Field technicians servicing short-to-medium fiber runs plus occasional copper tracing who want maximum functions in one handheld
Not ideal for: Long-haul or metro fiber contractors — the 26 dB dynamic range cannot characterize the spans the Greenlee 930XC handles
- Display:4.3-inch touch screen
- OTDR Wavelengths:1310 nm and 1550 nm
- OTDR Dynamic Range:26 dB at 1310 nm; 24 dB at 1550 nm
- OPM Calibrated Wavelengths:850, 1300, 1310, 1490, 1550, 1625 nm
- VFL Wavelength / Range:650 nm, up to 8 km
- Light Source Modes:CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz
Our verdict“Ideal for the mixed-media tech who mostly works premises fiber and values an all-in-one touchscreen tool over raw measurement range.”
Megger TDR2050 Time Domain Reflectometer, 20 km Range
When the cable runs long and the stakes are high, the Megger TDR2050 justifies its premium positioning. Its 20 km maximum range dwarfs the Sonel TDR-420’s 4 km, and the 0.1 m minimum resolution means that reach does not come at the cost of precision. Dual-channel operation with dual traces and cursors lets a technician compare a faulty pair against a healthy one in real time — a fault-finding method no single-channel unit in this lineup can match. Storing 100 traces turns it into a documentation tool, and 600 V CAT IV input protection means accidental connection to live networks will not end the day early. The honest caveat: maximum range depends on cable type and velocity factor, so real-world reach on lossy small-gauge pairs will be shorter than the headline. Compared with the compact Megger TDR500/3, this is the full-size choice for serious outside-plant programs.
Pros:- Up to 20 km range with 0.1 m minimum resolution
- Dual-channel traces and cursors for comparing pairs
- 600 V CAT IV input protection against live circuits
- Stores up to 100 traces for comparison and reporting
Cons:- Real range depends heavily on cable type and velocity factor
- Premium instrument with far more capability than short-run work requires
Best for: Utility and telecom engineering teams fault-finding and documenting long metallic cable routes
Not ideal for: LAN installers and small jobs — its capabilities and size are wasted where the MP780994 covers everything
- Measurement Range:Up to 20 km (65,000 ft), depending on velocity factor and cable type
- Minimum Resolution:0.1 m (0.3 ft)
- Accuracy:±1%
- Pulse Duration:2 ns
- Output Amplitude:20 V
- Impedance:25, 50, 75, 100, 125, 140 ohms
- Velocity Factor:0.2 to 0.99
- Input Protection:600 V CAT IV
- Trace Memory:100 traces
Our verdict“The choice for professional crews who need maximum reach, dual-pair comparison, and trace storage on long outside-plant copper networks.”
Greenlee 930XC-30P Triple Wavelength Single Mode Optical Time Domain Reflectometer
Triple-wavelength testing is what separates this model from its dual-wavelength sibling, the Greenlee 930XC-20C-UPC-FC. The added wavelength lets a technician characterize loss at both 1310/1550 nm and a third window, which matters when verifying long-haul or metro single-mode spans where different wavelengths behave differently around splices and bends. With a 38 dB dynamic range and 1.5 m dead zones, this unit reaches deep into long fiber runs while still resolving events close to the launch point — a combination cheaper mini OTDRs like the Mini-Pro struggle to match. The integrated OPM, SLS, and VFL mean one handheld replaces three separate instruments, and BelCore GR196 compliance keeps results defensible for carrier acceptance testing.
The tradeoff is focus: this is a single-mode-only instrument. Anyone maintaining multimode campus or data center backbone fiber should look elsewhere, and the 930XC-20C covers most everyday jobs at a simpler spec.
Pros:- Triple-wavelength testing covers more certification scenarios than dual-wavelength rivals
- 38 dB dynamic range with short 1.5 m dead zones handles long spans and near-end events
- OPM, SLS, and VFL integrated into one instrument
- BelCore GR196 compliance for defensible acceptance testing
Cons:- Single mode only — no multimode capability
- More instrument than casual or occasional fiber testers need
Best for: Fiber contractors and carrier technicians certifying long single-mode spans at multiple wavelengths
Not ideal for: Anyone testing multimode fiber — this unit simply won’t support it
- Mode:Single mode
- Wavelengths:Triple wavelength
- Dynamic Range:Up to 38 dB
- Dead Zone:1.5 m
- Integrated Functions:OPM, SLS, VFL
- Compliance:BelCore GR196
Our verdict“Buy this if you certify carrier-grade single-mode fiber and need triple-wavelength flexibility; skip it if multimode is part of your workload.”
Greenlee 930XC-20C-UPC-FC Dual-Wavelength Single-Mode Optical Time-Domain Reflectometer
This model makes the most sense for buyers who want Greenlee’s proven OTDR platform without paying for the third wavelength on the 930XC-30P. You still get the same 38 dB dynamic range, the same 1.5 m dead zones, and the same integrated OPM, SLS, and VFL toolkit — so day-to-day fault finding and span certification feel identical in practice. Where it gives ground is wavelength coverage: two windows are enough for routine outside-plant maintenance, but a shop handling full carrier acceptance work will eventually hit jobs the 930XC-30P covers more easily.
Compared with compact options like the OFL100, the 930XC-20C trades portability for capability, but its straightforward interface means the learning curve stays short. It’s the sensible middle ground: more range than a last-mile box, less cost than the triple-wavelength flagship.
Pros:- Same 38 dB dynamic range and 1.5 m dead zones as the triple-wavelength flagship
- OPM, SLS, and VFL built in — no separate instruments to carry
- Easy-to-learn interface speeds up field adoption
- BelCore GR196 compliance
Cons:- Dual wavelength only limits advanced certification scenarios
- Larger and heavier than pocket-sized last-mile OTDRs
Best for: Outside-plant fiber crews doing routine single-mode troubleshooting and certification
Not ideal for: Buyers needing multimode testing or triple-wavelength certification coverage
- Wavelengths:Dual wavelength
- Fiber Mode:Single mode
- Dynamic Range:Up to 38 dB
- Dead Zones:1.5 m
- Integrated Functions:Optical power meter, stabilized light source, visual fault locator
- Compliance:BelCore GR196
Our verdict“The smart buy for crews that need flagship-grade range at two wavelengths instead of three.”
OFL100 Optical Time-Domain Reflectometer for Last Mile Fiber
Weighing under 1.1 pounds, the OFL100 is the tool a technician actually wants clipped to a belt all day. Its single-button Auto Test operation means a first-week apprentice can capture usable traces without training, which is a genuine advantage over button-and-menu instruments like the Greenlee 930XC series. The power meter, laser source, and visual fault locator ship standard, and the Pass/Fail analysis turns raw traces into a quick verdict on whether a drop link meets design specs — exactly what last-mile installation crews need.
The tradeoff is specialization. This box is built for short last-mile links, not long-haul metro spans; the 930XC-30P outclasses it on dynamic range for carrier work. Compared with the free Trace Viewer software, though, documentation is straightforward, so small contractors closing out residential and FTTx jobs get a complete workflow from one pocketable device.
Pros:- Under 1.1 pounds and ruggedized for all-day field carry
- Single-button Auto Test needs almost no training
- OPM, laser source, and VFL included standard
- Pass/Fail analysis validates links against design specs instantly
Cons:- Purpose-built for last-mile links only
- Not suited to long-span or advanced wavelength certification work
Best for: FTTx and residential fiber installers doing fast drop testing at multiple homes per day
Not ideal for: Technicians characterizing long metro or backbone spans — the range isn’t there
- Weight:Less than 1.1 pounds
- Interface:Single-button with Auto Test mode
- Included Features:Optical power meter, stabilized laser source, visual fault locator
- Software:Free Trace Viewer, Link Viewer Pass/Fail analysis
- Form Factor:Small ruggedized package
Our verdict“The easiest OTDR to carry and learn, as long as your work stops at the last mile.”
Megger TDR500/3 Compact Time Domain Reflectometer
This is the pick that reminds buyers TDRs aren’t only for fiber. The Megger TDR500/3 locates breaks and degradation in twisted pair, coaxial, and parallel conductor cables, with measurement ranges scaling from 10 m up to 5 km — enough for most building and campus metallic runs. Automatic parameter selection means the instrument sets itself up, a step up from the Triplett TDR100, which requires manual V.O.P. configuration for accurate readings. A 14-hour battery life and IP54-rated case make it dependable in dusty or wet field conditions.
The compromises are honest ones: five AA batteries are a hassle to keep stocked compared with the Triplett’s two, and the monochrome 256 x 128 display is functional rather than friendly. Compared with the larger Megger TDR2050, this model trades range and screen real estate for portability — a fair deal for telecom and low-voltage techs.
Pros:- Handles twisted pair, coax, and parallel conductor cables in one tool
- Automatic test parameter selection reduces setup errors
- IP54 dust and rain resistance with 14-hour battery life
- Seven measurement ranges from 10 m to 5 km
Cons:- Runs on five AA batteries
- Monochrome display is harder to read than modern color screens
Best for: Telecom and low-voltage technicians troubleshooting twisted pair and coax runs in the field
Not ideal for: Fiber optic work — this instrument tests metallic cable only
- Cable Types:Twisted pair, coaxial, parallel conductors
- Measurement Ranges:10, 25, 100, 250, 1000, 2500, 5000 m
- Resolution:1% of range; minimum 0.1 m
- Accuracy:±1% of range ± pixel at 0.67 VF
- Output Impedances:25, 50, 75, 100 Ω
- Velocity Factor:0.2 to 0.99
- Ingress Protection:IP54
- Battery Life:Up to 14 hours (5 AA)
Our verdict“The dependable metallic-cable fault finder for field crews who want automatic setup and weather resistance.”
Triplett TDR100 Cable Length Tester and Time Domain Reflectometer
The Triplett TDR100 stands out as the affordable entry point for anyone who mainly needs cable length measurement rather than full fault analysis. It works on any cable with two insulated metallic elements — coax, LAN, Cat 5, power, telephony — which covers most inventory-auditing and pre-installation verification tasks. Its 2.4-inch color display and onscreen menu feel friendlier than the Megger TDR500/3’s monochrome screen, and 99 memory locations plus 20 built-in V.O.P. groups let a small crew build a reference library over time.
Accuracy, however, depends on correctly configured velocity of propagation values; enter the wrong V.O.P. and your distances drift, where the Megger’s automatic parameter selection removes that failure mode. It also runs on just two AA batteries versus the Megger’s five. This pick makes the most sense for electricians and AV installers checking spool lengths, not for technicians chasing subtle faults.
Pros:- TDR-based length measurement works across coax, LAN, Cat 5, power, and telephony cable
- Color display with intuitive onscreen menu
- 99 trace memory locations and 20 built-in V.O.P. cable groups
- Runs on just 2 AA batteries with a complete accessory kit included
Cons:- Manual V.O.P. configuration is required for accurate distance readings
- Limited to cables with at least two insulated metallic elements
Best for: Electricians and AV/security installers verifying cable lengths and inventory before pulls
Not ideal for: Fault-finding technicians who need precision event analysis on long cable runs
- Measurement Type:Time Domain Reflectometer (TDR)
- Compatible Cables:Coax, LAN, CAT V, power, telephony (2+ insulated metallic elements)
- Display:2.4-inch TFT color
- Memory:99 trace storage locations
- Built-in V.O.P. Groups:20
- Power Source:2 AA batteries
- Included Accessories:BNC test leads, BNC-to-alligator clips, BNC-to-F connector, carrying case
Our verdict“A low-cost, easy-carry length tester that earns its keep before the cable pull, not during deep troubleshooting.”
Greenlee 930XC-30P Triple Wavelength Single Mode Optical Time Domain Reflectometer (SC Connector)
This option stands out as the most complete professional package in this lineup, pairing a triple-wavelength OTDR with an integrated optical power meter, stabilized laser source, and visual fault locator. Compared with the D YEDEMC Mini-Pro, its 38 dB dynamic range is in a different league — enough headroom to characterize long single-mode spans and work through high-loss events that would leave a 24 dB instrument blind. The 1.5 m dead zones and one-button auto test translate directly into faster fault location on contracted jobs, and live-fiber testing means no service interruptions for paying customers. Build quality is a genuine differentiator: GR-196 compliance, 2 m drop testing, and EMI resistance make it field-durable where lighter units like the Mini-Pro would worry me. The tradeoff is cost and complexity — this is a serious investment aimed at professionals, not hobbyists.
Pros:- All-in-one integration of OTDR, optical power meter, laser source, and visual fault locator
- 38 dB dynamic range and 1.5 m dead zones handle demanding single-mode spans
- Rugged GR-196 build: drop-tested from 2 m, rain and EMI resistant
- Live fiber testing without disrupting active services
Cons:- Professional-grade instrument with a price and learning curve to match
- Heavier and bulkier than compact mini-OTDRs in this roundup
Best for: Fiber contractors and telecom technicians who certify long single-mode spans and need one rugged instrument for OTDR, power metering, and fault location
Not ideal for: Occasional users or small FTTx crews — the price and feature depth far exceed what casual cable checking requires
- Model:930XC-30P
- Connector Type:SC
- Cable Type:Fiber Optic (Single Mode)
- Wavelengths:Triple wavelength
- Dynamic Range:Up to 38 dB
- Dead Zones:1.5 m
- Battery Life:Up to 8 hours continuous use
- Standards:GR-196, GR-1089 EMI compliant
Our verdict“Buy this if fiber testing is your trade and you need carrier-grade range and durability; skip it if you only test short runs occasionally.”
Megger TDR500 Time Domain Reflectometer with Backlit LCD
Where the Greenlee 930XC-30P and both Mini-Pro units are optical instruments, the Megger TDR500 plays a completely different role: it locates faults on metallic copper cables. That distinction matters — buyers comparing on price alone could easily buy the wrong tool entirely. With five ranges spanning 100 to 9500 feet (30 to 3000 m), this model covers everything from short building runs to lengthy outside-plant cables, and the built-in warble tone generator adds cable identification and mapping that optical OTDRs simply don’t offer. The backlit LCD and IP54 housing make it practical for dim vaults and damp field conditions. Compared with the Sonel TDR-420 in this roundup, the TDR500 leans toward straightforward fault-finding rather than extensive trace analysis. It won’t touch fiber, and there are no advanced trace export features — but for copper crews, it’s a focused, honest tool.
Pros:- Five operating ranges from 30 m to 3000 m for flexibility across cable lengths
- Built-in warble tone generator for cable identification and mapping
- Backlit LCD readable in low-light vaults and cabinets
- IP54 environmental protection for field durability
Cons:- Copper-only — no optical test capability whatsoever
- Limited to about 3 km, shorter than long-range fiber OTDRs here
Best for: Electricians and telecom technicians troubleshooting copper pairs, coax, or twisted-pair runs up to about 3 km
Not ideal for: Fiber optic installers — this is a metallic-cable TDR and cannot test optical fiber at all
- Model:TDR500
- Type:Time Domain Reflectometer (TDR)
- Cable Type:Metallic / copper
- Display:Backlit LCD
- Operating Ranges:5 ranges, 100 to 9500 ft (30 to 3000 m)
- Environmental Protection:IP54
- Voltage:5V
Our verdict“The right pick if your faults live in copper cable; the wrong pick entirely if you’re testing fiber.”
D YEDEMC Mini-Pro 1310/1550nm SM OTDR Multi-Function Fiber Optic Tester (YD-3000-UPC)
This model makes the most sense for budget-conscious FTTx crews who need genuine OTDR traces without the Greenlee 930XC-30P’s professional price. Its 5 m to 60 km test range comfortably covers access-network spans, and the tool-count savings are real: OTDR, event map, power meter, cable tracker, VFL, and even an RJ45 sequencer in a single 1 kg unit. Data handling is better than I’d expect at this tier — PC analysis software plus TF card export means traces can be documented for clients rather than read once and lost. The tradeoff is honest and worth stating plainly: at 24 dB/22 dB dynamic range, it cannot see through splitters or characterize long-loss spans the way the Greenlee can, and the 3.5-inch non-touch display demands menu work rather than taps. Compared with the touch-screen Mini-Pro, this one trades modern conveniences for interchangeable FC/SC/ST connectors.
Pros:- Six-in-one toolset: OTDR, event map, power meter, length measurement, cable tracker, RJ45 sequencer
- 60 km test range suits FTTx and access networks
- PC analysis software and TF card storage for professional trace documentation
- Interchangeable FC, SC, and ST connectors
Cons:- 24 dB/22 dB dynamic range can’t test through splitters or long high-loss spans
- Non-touch 3.5-inch display makes navigation slower than touch rivals
Best for: FTTx and access-network installation teams that need documented OTDR traces, power readings, and copper checks on a limited budget
Not ideal for: Technicians testing PON networks with splitters — the dynamic range can’t exceed the roughly 42 dB needed to see through them
- Model:YD-3000-UPC
- Test Wavelength:1310/1550nm
- Test Range:5 m – 60 km
- Dynamic Range:24dB/22dB
- Connector:FC/UPC (interchangeable SC, ST)
- Display:3.5 inch color, non-touch
- Data Interface:Micro USB, TF card
- Weight:1 kg
- Certifications:IEC 61010-2-030, CE, RoHS
Our verdict“A strong value multi-tool for access-network work, as long as your spans don’t include splitters.”
Mini-Pro Optical Time Domain Reflectometer (OTDR) Fiber Optic Tester, 1310/1550nm, 3.5-inch Touch Screen
At 0.2 kg and pocket-sized dimensions, this orange Mini-Pro is the portable outlier of the lineup — roughly a fifth the weight of the D YEDEMC YD-3000-UPC, and with a 3.5-inch touch screen that its sibling lacks. Its 80 km maximum range actually exceeds the D YEDEMC’s 60 km, which will surprise buyers who assume small means short-range. The feature stack is complete for daily troubleshooting: event map, OPM, VFL, light source, and internal storage, plus modern touches like wireless charging and USB Type-C that no other product here offers. The compromises are real, though. A 3.5-inch screen is tight for reading dense OTDR traces side by side with the bigger Greenlee display, and the absence of published dynamic range specs makes it hard to verify its true long-haul capability. For quick fault-finding and short-span documentation, it’s excellent.
Pros:- Featherweight 0.2 kg pocketable design with shock resistance
- 80 km maximum test range with a small blind zone
- Touch screen plus modern wireless charging and USB Type-C
- Combines OTDR, event map, OPM, VFL, and light source
Cons:- 3.5-inch screen is cramped for detailed trace analysis
- No published dynamic range or accuracy specifications
Best for: Field technicians who climb ladders, work from buckets, or travel light and need quick fiber fault location and power checks
Not ideal for: Engineers doing certification-grade trace analysis — the tiny screen and unspecified dynamic range make detailed work frustrating
- Wavelengths:1310/1550nm
- Display:3.5-inch touch screen
- Max Test Range:80 km
- Battery Life:4+ hours
- Weight:0.2 kg
- Dimensions:4.96 x 3.15 x 1.46 inches
- Power:5V DC, wireless charging, USB Type-C
- Functions:OTDR, Event Map, OPM, VFL, LS, Internal Storage
Our verdict“The one to grab when portability and speed matter more than deep trace analysis and verifiable specs.”
How We Picked
I separated these 14 products into copper and optical categories first, because a fair comparison across the two would be meaningless — a 20 km range claim means something different on twisted pair than on single-mode fiber. Within each family, I ranked by maximum test range, fault-location accuracy, measurement modes, and connector or cable compatibility. Units offering multiple testing modes (TDR, cross-talk, oscilloscope-style views) scored higher than single-function testers at the same tier.
Usability carried equal weight: display readability in sunlight, one-handed operation, and trace storage or PC export determine whether a technician actually uses the tool daily or leaves it in the van. Finally, I factored in durability and total cost of ownership — battery type, ruggedness, and whether the included accessories (adapters, carry case, chargers) make the kit genuinely field-ready. Products ranked higher when their tradeoffs were minor and obvious; models with compatibility traps or narrow use cases landed lower despite strong specs on paper.
Factors to Consider When Choosing Time Domain Reflectometers
Before choosing a time domain reflectometer, you need to nail down your medium, your typical test distances, and how often the tool leaves the bench. These are the factors that most often cause buyers to pick the wrong unit.Copper or Fiber: The Decision That Comes First
Every mistake downstream stems from skipping this question. Copper TDRs like the Megger TDR500 and Triplett TDR100 send pulses down coax, twisted pair, or power cables and calculate fault distance from impedance changes — they cannot test fiber at all. OTDRs shoot light at specific wavelengths down single-mode or multimode fiber and are equally blind to copper. If your work mixes both media, budget for two tools rather than hunting for a hybrid, because none of the credible options here do both well. Contractors who guess wrong typically discover the error on their first job site, after the return window closes. Audit your last ten work orders before buying: the medium you test most should dictate the family, and everything else is secondary.
Range and Dead Zones
Advertised maximum range is the headline spec, but the event dead zone matters just as much in practice. Two connectors a meter apart on a patch panel can merge into one reflection on a unit with a long dead zone, hiding the fault you came to find. Longer-range units like the Megger TDR2050 and the Greenlee 930XC-30P handle both long spans and closely spaced events, which is why they rank above shorter-range models despite costing more. If you test premises cabling under 300 meters, paying for 20 km of range buys nothing. Match the range to your real work: last-mile fiber crews and utility locaters need the long end; LAN technicians do not. Also check whether the pulse width is adjustable, because a fixed wide pulse destroys resolution on short runs.
Wavelengths and Connector Compatibility on OTDRs
On fiber units, the number of wavelengths determines what you can diagnose. A single 1310 nm wavelength finds breaks and splices; adding 1550 nm exposes attenuation differences that reveal bent fiber or aging cable; a third 1625 nm channel allows testing through a live network without disrupting traffic. That is the practical reason the triple-wavelength Greenlee models rank above dual-wavelength picks for carrier work. Connector compatibility is the quieter trap — an OTDR with a fixed FC port cannot attach to an SC-terminated network without an adapter, and cheap adapters degrade your measurements. Check what your network actually uses before ordering, and factor adapter quality into the budget. Buying the wrong connector variant is the most common return reason in this category.
Display, Interface, and Field Conditions
A trace you cannot read in sunlight is a trace you cannot use. Backlit LCDs like those on the Megger TDR500 series remain readable in direct glare and respond to gloved fingers, while capacitive touchscreens on models like the OT4D+ and Mini-Pro feel faster in the shop but frustrate cold-weather field work. Screen size matters for analyzing dense traces — a 3.5-inch display forces scrolling that a 5-inch screen shows at once. Consider how you store results too: units with onboard trace storage and USB or PC export let you document jobs for clients, which matters if you bill for testing reports. Technicians who work alone at night should also weigh whether the interface supports one-handed operation while the other hand holds a flashlight or cable end.
Kit Completeness and Running Costs
The sticker price rarely tells the whole story. Some listings ship with adapters, a carry case, and rechargeable batteries; others arrive as bare units that need another purchase before the first job. Fiber testers consume launch cables — you need one to see events near the instrument, and short or missing launch cables are a leading cause of inaccurate first-splice readings. Battery format also affects long-term cost: standard AA cells can be swapped anywhere, while proprietary packs die at the worst moment and require a charger you must not lose. Before buying, tally the total: instrument, adapters, launch cable or test leads, and spares. The cheapest unit on paper is often mid-pack once everything needed for a working kit is priced in.
Skill Level and Report Requirements
Interpreting an OTDR trace is a genuine skill — a waveform full of spikes means nothing until you learn to distinguish a splice from a connector from a bend. Simplified testers like the Triplett TDR100 or the Mini-Pro line flatten that learning curve with automatic readings, which suits occasional users and small-installation crews. Full-featured units reward trained operators with richer diagnostics but can overwhelm beginners into misreading results, which is worse than not testing at all. If your clients or employers require formatted test reports, look for PC software support and standard file formats rather than screen-photographing results. The honest self-assessment is this: buy the simplest tool that answers your actual questions, and upgrade when your questions get harder.
Frequently Asked Questions
Can one time domain reflectometer test both copper cables and fiber optic runs?
No — the physics are completely different, and no credible unit in this lineup does both. Copper TDRs send an electrical pulse and read impedance discontinuities, while OTDRs inject laser light at specific wavelengths and measure backscatter. If you maintain both copper plant and fiber, plan on two instruments. A common compromise is pairing a low-cost copper unit like the Triplett TDR100 with an entry-level OTDR, which together still cost less than one flagship fiber model. Hybrid claims on generic marketplaces usually describe a cable tester with a basic length function, not true time domain reflectometry on both media.
Do I really need a triple-wavelength OTDR, or is dual-wavelength enough?
It depends on whether you test live networks and whether you need to diagnose subtle loss. The 1550 nm wavelength is more sensitive to bending loss than 1310 nm, so comparing readings at both exposes fiber that is knotted or pinched in the conduit — dual-wavelength is enough for acceptance testing of new installs. The third wavelength, typically 1625 nm, sits outside the traffic band, letting you test a fiber that is carrying live service without taking customers down. If you maintain an operating network, triple-wavelength models like the Greenlee 930XC-30P earn their premium. For construction and commissioning work, dual-wavelength units like the OT4D+ or Mini-Pro cover the job.
What range do I need for typical cable fault finding?
Most premises faults — LAN cabling, security cable, coax drops — fall inside 300 meters, which even the smallest copper TDRs handle comfortably. Telecom distribution and buried trunk cable push you into the 3 km to 15 km territory, where mid-range units like the Megger TDR500/3 or the Sonel TDR-420 operate. Utility and long-haul work justifies the 20 km class of the Megger TDR2050. Buying beyond your range wastes money, but buying short is worse: a fault beyond maximum range simply does not appear, and you may conclude the cable is healthy when it is not. Match the range to your longest real cable run plus about 30 percent headroom.
Why do my OTDR results differ between two testers on the same fiber?
Several legitimate factors cause this. Different wavelengths attenuate differently — 1550 nm readings will always show higher loss on bent fiber than 1310 nm readings on the same run. Pulse width settings change resolution and dead zones, so closely spaced events can register differently. The quality and length of your launch cable also shifts where the trace begins and whether early events are visible at all. Connector condition matters too: a dirty or worn adapter on either instrument injects its own reflection. Before assuming a defective meter, clean all connectors, match wavelengths and pulse widths, and re-test — in most cases the discrepancy disappears.
Is a touchscreen OTDR better than one with physical buttons?
Each suits a different working style. Touchscreens, like those on the OT4D+ and the Mini-Pro 3.5-inch models, make zooming into a trace and navigating menus faster, which is genuinely pleasant for bench work and indoor commissioning. Physical-button units like the Megger TDR500 series win in harsh conditions — they respond to gloved hands in winter, they are less likely to register a false tap in rain, and the controls are findable by feel while your eyes are on the cable. Field crews in northern climates consistently prefer buttons; lab and data-center technicians usually prefer touch. Choose based on where you will hold the tool most often, not on which interface sounds more modern.
Conclusion
Matching the tool to the buyer matters more here than in most categories, because copper and fiber instruments cannot substitute for each other. For best overall, the Megger TDR2050 delivers the widest fault-finding capability on the copper side with its 20 km range and multiple test modes. The best premium pick is the Greenlee 930XC-30P triple-wavelength OTDR, which gives carrier-level diagnostics including live-network testing at 1625 nm. Best value goes to the Triplett TDR100 for copper and the Mini-Pro line for fiber — both prove that occasional testing does not require flagship spending. Beginners should start with the Megger TDR500/3 or the OT4D+, whose readable displays and automatic functions build interpretation skills without overwhelming the operator. For specific needs: the OFL100 targets last-mile fiber contractors, the Sonel TDR-420 suits telecom distribution work, and the dual-wavelength Greenlee 930XC-20C variants fit installers who do not need in-service testing. Choose your medium first, your range second, and the right model from this list becomes obvious.
Halloween Picks
halloween
As an affiliate, we earn on qualifying purchases.
